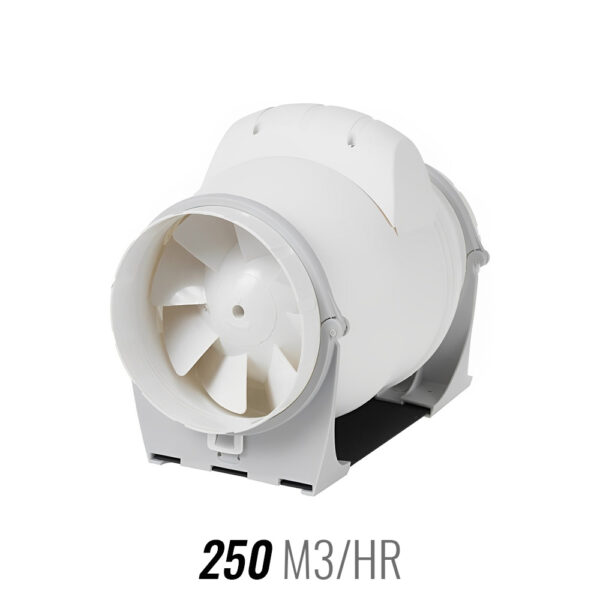

Elicent AXM – Inline Mixflow 100mm Duct – Plastic
Original price was: $189.00.$169.00Current price is: $169.00.
- A quiet and efficient in-line 100mm duct fan
- Designed for residential ventilation
- Its mixed flow impeller and polypropylene construction ensure optimal airflow
- Impressive airflow of 250 m³/hr with minimal noise
- Features a two-speed motor and thermal overload protection
- Easy installation with a unique clamp system
- Backed by a 2-year warranty
- Description
- Additional information
- Reviews (0)
Description
Elicent AXM Features Overview:

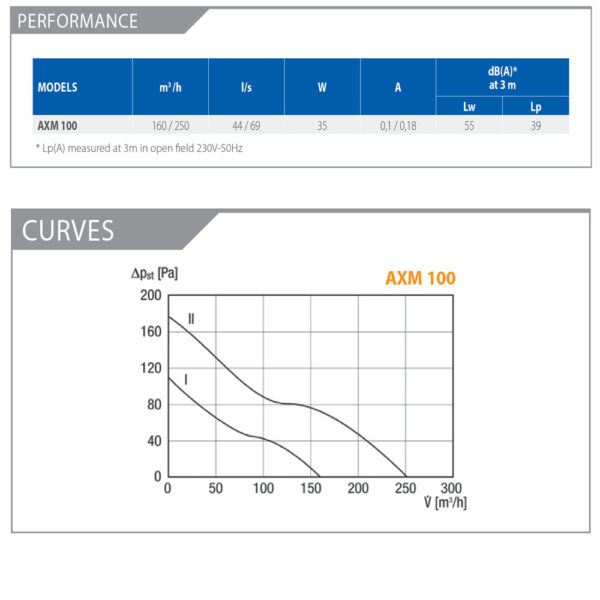

| Capacity | 250 m3/hr (69.44 l/s) |
|---|---|
| Noise | 39 dB(A) |
| Voltage | 220-248 |
| Motor RPM | 1700 / 2300 |
| Motor Height | 232 |
| Ductable | Yes – 100mm diameter |
Constructed from durable polypropylene, making them suitable for direct installation within ductwork.
A key design feature allows for easy inspection and maintenance by simply opening the clamp and removing the fan unit.
These fans utilise a helicocentrifugal mixed flow impeller with a downstream stator crafted from ABS material.
The fans have an IP44 protection rating.
Speed control can be achieved using phase control or a transformer.
Thermal overload protection is included as a standard safety feature. An externally fitted terminal box with a cable entry grommet simplifies electrical connections.
These fans are designed for high efficiency, resulting in minimal energy costs.
Their quiet running is attributed to optimised aerodynamics and the inclusion of guide vanes.
Installation is made easy with pre-installed mounting brackets and an external connection box.
The loosening of clamps further simplifies maintenance, eliminating the need to handle the ductwork. The design allows for versatile installation options.
Max temperature – 40 degrees
View the comprehensive manuals below to learn more about the product and how it’s installed.
Refer to this spec sheet for more information: AXM- Spect Sheet.
Refer to this user manual for more information: Manual AXM.
Additional information
| Brand | Elicent |
|---|---|
| Manufacturers Part Number | 4AX0000 |
| Colour | White |
| Installation | Requires Hardwiring (electrician required) |
| Motor Type | Mixflow |
| Material | Plastic |
| Warranty | Elicent: The manufacturer offers a 2 year replacement warranty (conditions apply). |
BarCode Number : 8016510038787
All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in 'freeflow'. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.
For comprehensive warranty information relating to this product please visit the manufacturers website.
