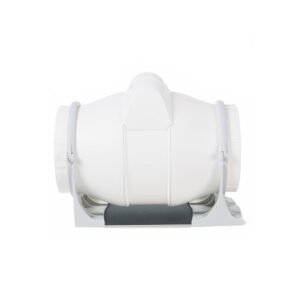

Elicent AXM – Inline Mixflow 150mm Duct – Plastic
Original price was: $219.00.$199.00Current price is: $199.00.
- Dependable and efficient in-line duct fan
- Delivers high performance with low energy usage
- Designed to meet the ventilation needs of residential spaces
- Excellent choice for general ventilation
- Featuring a mixed flow impeller and robust polypropylene construction
- Optimal airflow of up to 480 m³/hr with a 50 dB(A) noise level
- Two-speed motor & thermal overload protection
- Unique clamp system for simple installation
- Supported by a 2-year warranty
Compatible Accessories
-
-
-
Roof Cowl Kit Metal – 150mm
Original price was: $139.00.$119.00Current price is: $119.00. -
-
-
-
- Description
- Additional information
- Reviews (0)
Description
Elicent AXM Features Overview:
| Capacity | 480 m3/hr (133.33l/s) |
|---|---|
| Noise | 50 dB(A) |
| Voltage | 220-250 |
| Motor RPM | 2000 / 2700 |
| Motor Height | 244mm |
| Ductable | Yes – 150mm diameter |
Made from durable polypropylene, making them suitable for direct installation within ductwork.
A key design feature allows for easy inspection and maintenance by simply opening the clamp and removing the fan unit.
These fans utilise a helicocentrifugal mixed flow impeller with a downstream stator crafted from ABS material. Depending on the specific model, they are equipped with asynchronous motors offering 2 or 3 speeds.
The fans have an IP44 protection rating and a Motor Class B insulation. A robust, maintenance-free motor with ball bearings ensures reliable operation.
Speed control can be achieved using phase control or a transformer, except for timer-equipped versions.
Thermal overload protection is included as a standard safety feature. An externally fitted terminal box with a cable entry grommet simplifies electrical connections.
<liTheir quiet running is attributed to optimised aerodynamics and the inclusion of guide vanes.
Installation is made easy with pre-installed mounting brackets and an external connection box.
The loosening of clamps further simplifies maintenance, eliminating the need to handle the ductwork. The design allows for versatile installation options.
Max temperature – 40 degrees.
>These fans are designed for high efficiency, resulting in minimal energy costs.
View the comprehensive manuals below to learn more about the product and how it’s installed.
Refer to this spec sheet for more information: AXM- Spect Sheet.
Refer to this user manual for more information: Manual AXM.
Additional information
| Brand | Elicent |
|---|---|
| Colour | White |
| Installation | Requires Hardwiring (electrician required) |
| Material | Plastic |
| Motor Type | Mixflow |
| Manufacturers Part Number | 4AX0004 |
| Warranty | Elicent: The manufacturer offers a 2 year replacement warranty (conditions apply). |
BarCode Number : 8016510038824
All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in 'freeflow'. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.
For comprehensive warranty information relating to this product please visit the manufacturers website.
