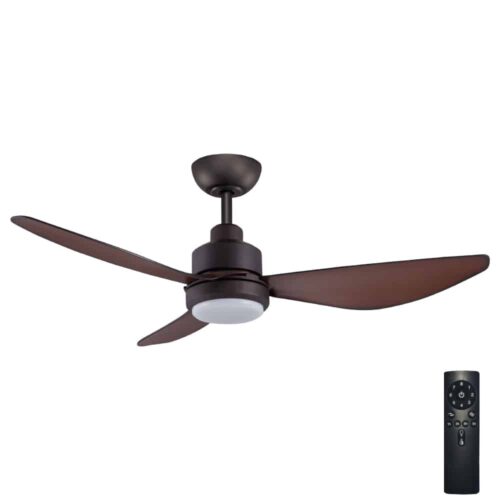

Three Sixty Trinity v3 DC Ceiling Fan with CCT LED Light - Oil Rubbed Bronze with Koa Blades 48"

Three Sixty Trinity v3 DC Ceiling Fan with CCT LED Light - Oil Rubbed Bronze with Koa Blades 48" - Image 2

Three Sixty Trinity v3 DC Ceiling Fan with CCT LED Light – Oil Rubbed Bronze with Koa Blades 48″

Name: Three Sixty Trinity v3 DC Ceiling Fan with CCT LED Light - Oil Rubbed Bronze with Koa Blades 48"
Brand: Three Sixty
SKU: CFFGTR22LOBKO
Availability: OutOfStock

Three Sixty | Trinity DC Ceiling Fans

$399.00

—–

CUSTOMER NOTICE – This product is currently out of stock & not available for purchase. If you need some advice on alternatives please contact us.

—–

The Three Sixty Trinity V3 LED Ceiling Fan in Oil Rubbed Bronze with Koa blades, with an overall diameter of 48″, features elegant curved blades with a new curved motor plate design. It is powered by an energy-efficient DC motor. The fan also features an integrated CCT LED light that is dimmable via the remote. Controllable via the supplied remote, the fan has eight selectable speeds and a ‘natural wind’ mode and timer. Read more about this fan below.

SKU: CFFGTR22LOBKO

🇦🇺 Quality fans for Aussie homes since 2008

Product Details

Three Sixty Trinity V3 Key Features

Installation Location	Indoor, Outdoor Undercover
Blade Material	Plastic
Overall Diameter	122cm (48″)
Blade Pitch	Variable
Motor Type	DC
Control Type	Remote Control
Summer / Winter Use?	Reversible from remote
Ceiling to Blade drop	340mm (300mm to base of light)
Angled Ceilings?	Suitable up to 6 degrees
Light	Included

Excellent choice for a bedroom. Fan off-timer function: set the fan to switch off automatically. Optional 90cm and 180cm downrods are available (sold separately, see accessories).

Three Sixty Trinity V3 Performance Data

Speed	RPM	Wattage	Airflow
1	89	5	4781 m3/hr
2	Not Tested	Not Tested	Not Tested
3	Not Tested	Not Tested	Not Tested
4	141	12	7574 m3/hr
5	Not Tested	Not Tested	Not Tested
6	Not Tested	Not Tested	Not Tested
7	Not Tested	Not Tested	Not Tested
8	210	34	11280 m3/hr

This high-airflow fan is incredibly energy efficient. Its 34-watt motor produces an 11,280 m3/hr airflow at max speed with 8 speed settings. Natural wind mode for sea-breeze effect

Understanding the Three Sixty Trinity V3 Light

Light Type	CCT LED
Light Wattage	20W
Lumens	Not Tested
Light Temperature	3000K, 4000K, 5000K
Dimmable	Yes

CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.

This light has Warm, Cool, and Daylight temperatures that can be selected using the remote.

Key Specs

Brand	Three Sixty
Warranty Details	Three Sixty: 3 year in home warranty. Terms & Conditions apply – visit manufacturers website for more info
Manufacturers Part Number	TRI48OBLED
Installation Location	Indoor, Outdoor – Undercover
Overall Diameter	122cm (48")
Control	Remote Control
Motor Type	DC
Blade Material	Plastic
Motor Colour	Oil Rubbed Bronze
Blade Colour	Koa Finish (timber look)

Ceiling Fan Installation Disclaimer

1. All electrical goods require installation from a licensed electrician. Please wait for your goods to arrive before booking your electrician. It is important that you keep your electrician’s certificate of installation in a safe place.

2. Ceiling fans should be installed so you have a minimum of 2.1m from blade to floor, however please check with your local council regulations and electrician to assess your individual needs.

3. For Angled ceilings – Published angled ceiling suitability is based only on the pitch and does not consider the fan’s clearance from ceilings, walls, or other potential obstructions. Users are responsible for assessing suitability for their specific application.

Ceiling Fan Warranty Disclaimer

1. Ensure installation takes place by a licensed and qualified electrician unless otherwise stated. Proof is often required upon requesting a warranty – this proof will need to be in the form of an invoice or receipt detailing the name and licence.

2. Never take down your fan if there is a fault before contacting the warranty line. Most warranties are in-home therefore will only take effect on installed fans unless otherwise instructed.

3. You must maintain your ceiling fan to prevent corrosion damage to the finishes. A lack of maintenance causing damage is not covered by warranty. See your fan instructions for care / maintenance instructions.

4. For comprehensive warranty information + terms and conditions please visit the manufacturers website.
