Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes
Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes
Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes
Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes - Image 1
Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes - Image 2
Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes - Image 3

Sub Floor Kit 7 – VK Plastic 200mm with 2 Intakes

Sub Floor Kit 7 - VK Plastic 200mm with 2 Intakes

Sub Floor Kit 7 – VK Plastic 200mm with 2 Intakes

Original price was: $509.00.Current price is: $459.00.

In stock
4.67 out of 5
3 customer reviews|Add a review

Original price was: $509.00.Current price is: $459.00.

The Sub Floor Kit is a pre packaged sub floor ventilation solution consisting of an inline fan and all necessary components required to put together a ventilation system. View all technical information below:

SKU: EUFUK4P Categories: ,

IN STOCK

Typically dispatches in 3 business days

Compatible Accessories

Description

Sub Floor Kit 7 Features Overview:

Installation Under House
Extraction Rate 930 m3/hr
Noise 51 dB(A)
Motor Wattage 173w
Ductable 18m of flexible duct

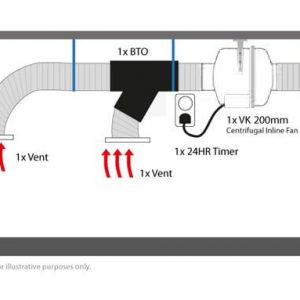

View the image gallery for a typical installation diagram.

Sub Floor Kit Includes

    • 1x VK Plastic 200mm Inline fan
    • 1x 6m of 200mm duct
    • 2x 6m of 150mm duct
    • 2x Metal Cone Vents
    • 1x BTO 200X150X150
    • 1x 200-150 Reducer
    • 1x External Wall Vent
    • 1x 24-hour Timer (The timer is plugged into a standard power point)
    • 1x Flex & Plug (The fan is then plugged into the timer)
    • 1x Roll on hanging tape (allows ducting to hang from joists)

1x Roll of duct tape (allows secure connection of the system)

Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the subfloor. This, in turn, can cause structural and health problems for the home and its occupants.

The most common reason for inadequate underfloor ventilation is that there are not enough vents or they are too small for the building’s size and layout. Building extensions, building location, and soil type can all contribute to problems in the subfloor.

Additional information

Brand

Fanco
Installation

Includes Lead & Plug
Warranty

The Manufacturer offers a 2 year replacement warranty (conditions apply)
Motor Type

Centrifugal
Manufacturers Part Number

EUFUK4P

BarCode Number :

3 reviews for Sub Floor Kit 7 – VK Plastic 200mm with 2 Intakes

  1. 5 out of 5

    Alan (verified owner) –

    Powerful fan and extremely easy to install. Running well and making a big difference to our underfloor ventilation already. I had some questions regarding parts needed for my job, and differences between motors and attachments. All questions were answered promptly enabling me to order exactly what I needed.

  2. 5 out of 5

    Heath (verified owner) –

    Exactly what i needed to fix the job!

  3. 4 out of 5

    Douglas –

    The fan and attachments work well
