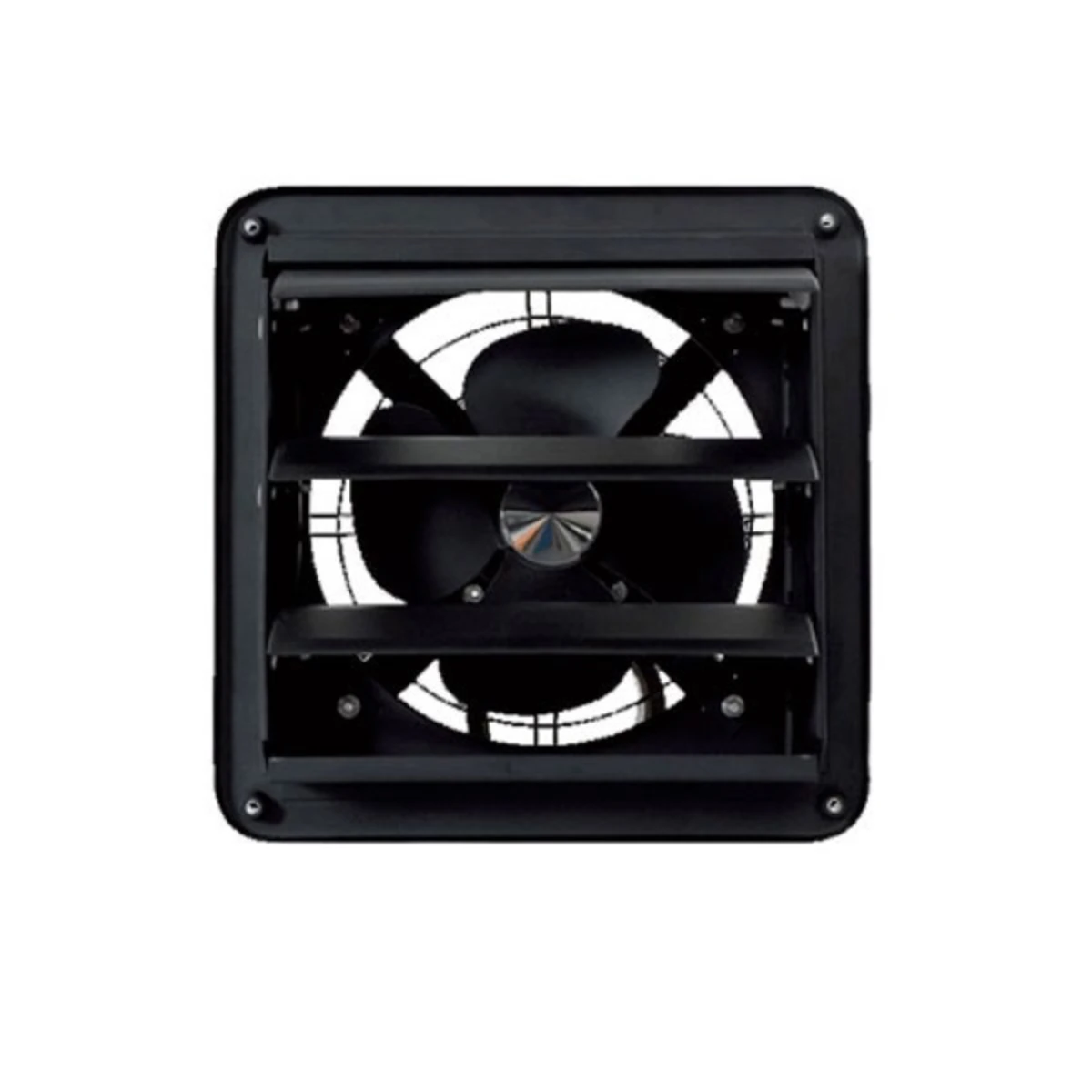

Commercial Wall Fan 300 with Gravity Shutters
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-sideview-black
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-sideview-closed-black
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-front-closed-black
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-sideview-black
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-sideview-closed-black
fanmaster-commercial-wall-exhaust-fan-with-gravity-shutters-front-closed-black

Commercial Wall Fan 300 with Gravity Shutters

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$209.00

The Commercial Wall Exhaust Fan is an industrial-grade wall-mounted exhaust fan with self-closing louvres that prevent reverse airflow. It is suitable for industrial, commercial, or domestic applications.

- +
SKU: EWFM300

Product Details

Commercial Wall Fan Features Overview:

Installation Wall
Hole Size 344mm square
Fascia Size 379mm square
Extraction Rate 1080 m3/hr (300 l/s)
Noise <58 dB(A)
Motor Wattage 45W
Ductable No

The commercial wall exhaust fan can extract heat, air, or dust and ventilate a space such as a factory or garage. The fan is designed to extract large volumes of air (the fan has a huge capacity of 1080 m3/hr) at a relatively low noise. The fan is easy to install, it comes with a 45W motor ready to be hardwired.

This fan is designed to be wall-mounted only. The manufacturer recommends fabricating a wooden frame that can be fixed to the wall. You can then secure the fan to the wooden frame with screws.

Refer to this installation manual for more information: Commercial Wall Fan Installation Instruction

Refer to this spec sheet for more information: Commercial Wall Fan Spec Sheet

Please note: Installation should be carried out following the IWEL Installation Manual, available for download from our website.

Key Specs

Manufacturer

Fanmaster
Manufacturers Part Number

IWEL300
Colour

Black
Installation

Requires Hardwiring (electrician required)
Warranty

The Manufacturer offers a 1 year replacement warranty (conditions apply)
Barcode Number 9344253000891

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
