Infinity Features Overview:
| Installation | Ceiling Only |
|---|---|

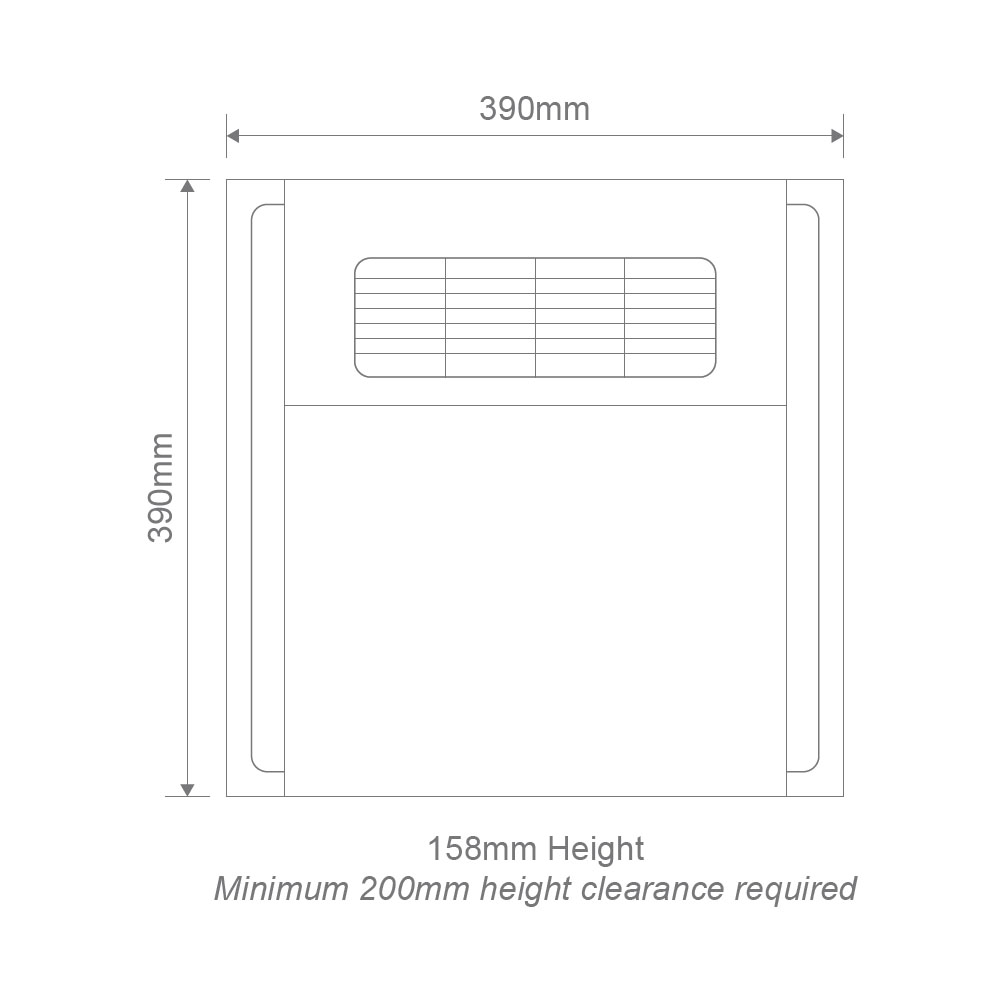

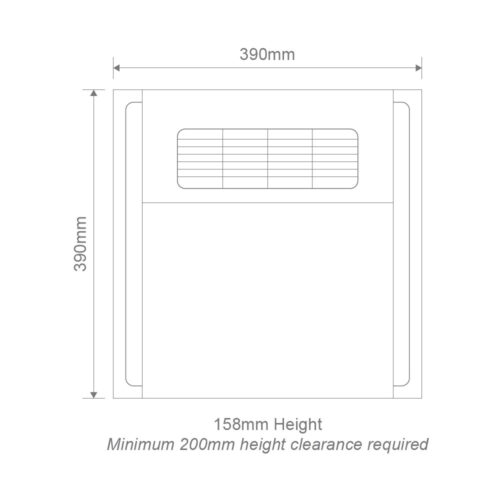

| Fascia Size | 390 x 390mm |
| Required Install Depth | Requires 200mm of cavity space |
| Hole (Cutout) Size | 330 x 350mm (Rectangle) |
| Extraction Rate | 300 m3/hr (83.33 l/s) |
| Noise | 46 dB(A) |
| Ductable | Yes – 100mm diameter |

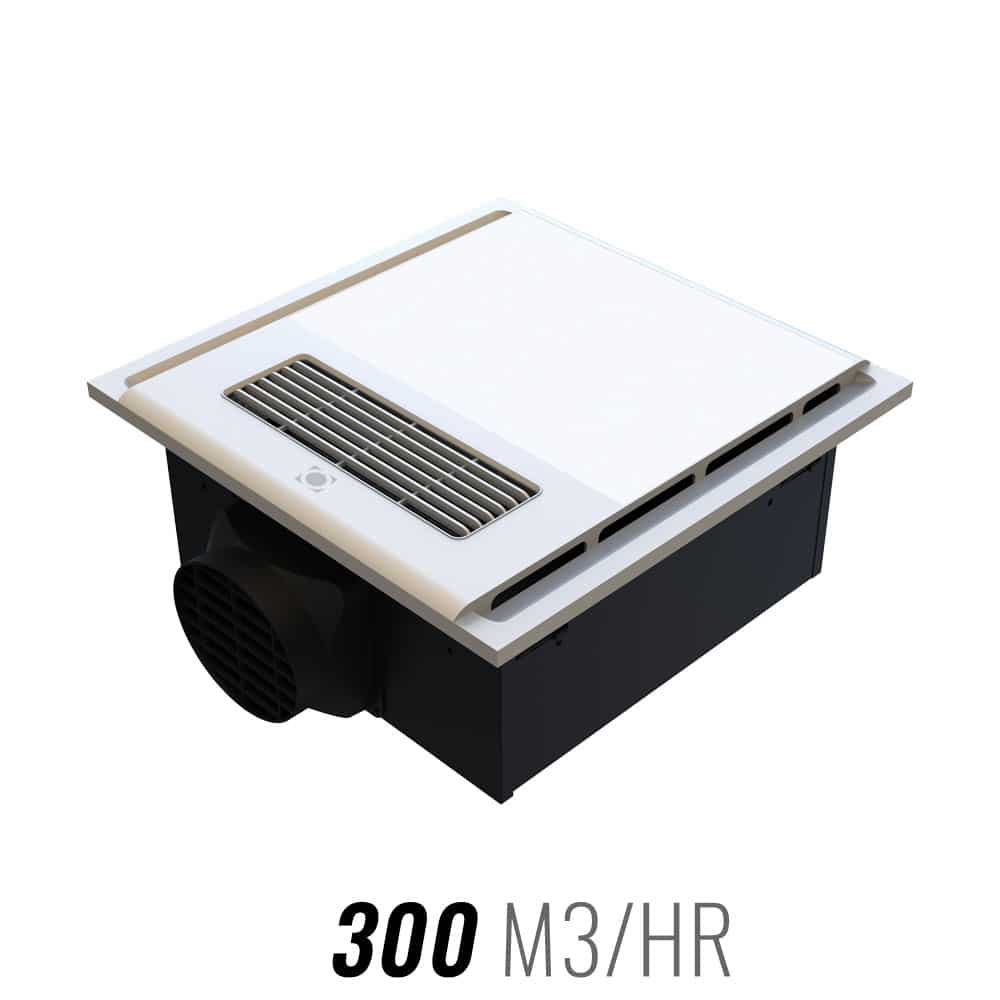

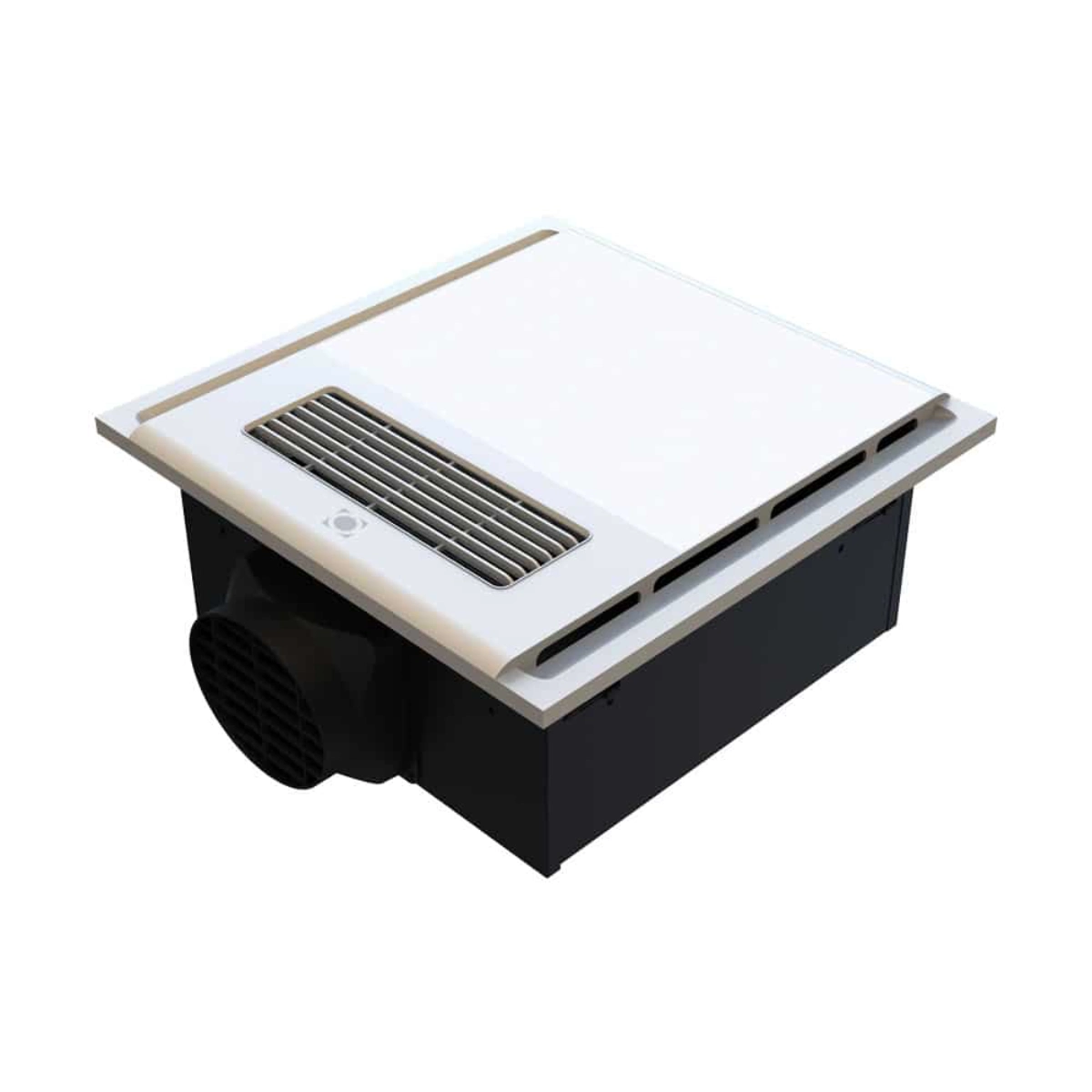

Modern and efficient, the Domus Heatcore 4-in-1 blends heating, exhaust, circulation, and lighting into one sleek unit. Its patented Heat Breeze Technology gently warms the room while helping reduce condensation through low-level extraction. With a 300m³/hr airflow and a 12W Tri-Colour LED light, it delivers both performance and ambience. The digital wall controller makes switching between modes simple. Wiring is required for new installations, but if you’re replacing an existing 3-in-1 unit, the retrofit-friendly design allows you to use the existing wiring. An auto shut-off feature adds peace of mind, switching the unit off after two hours if left on accidentally.

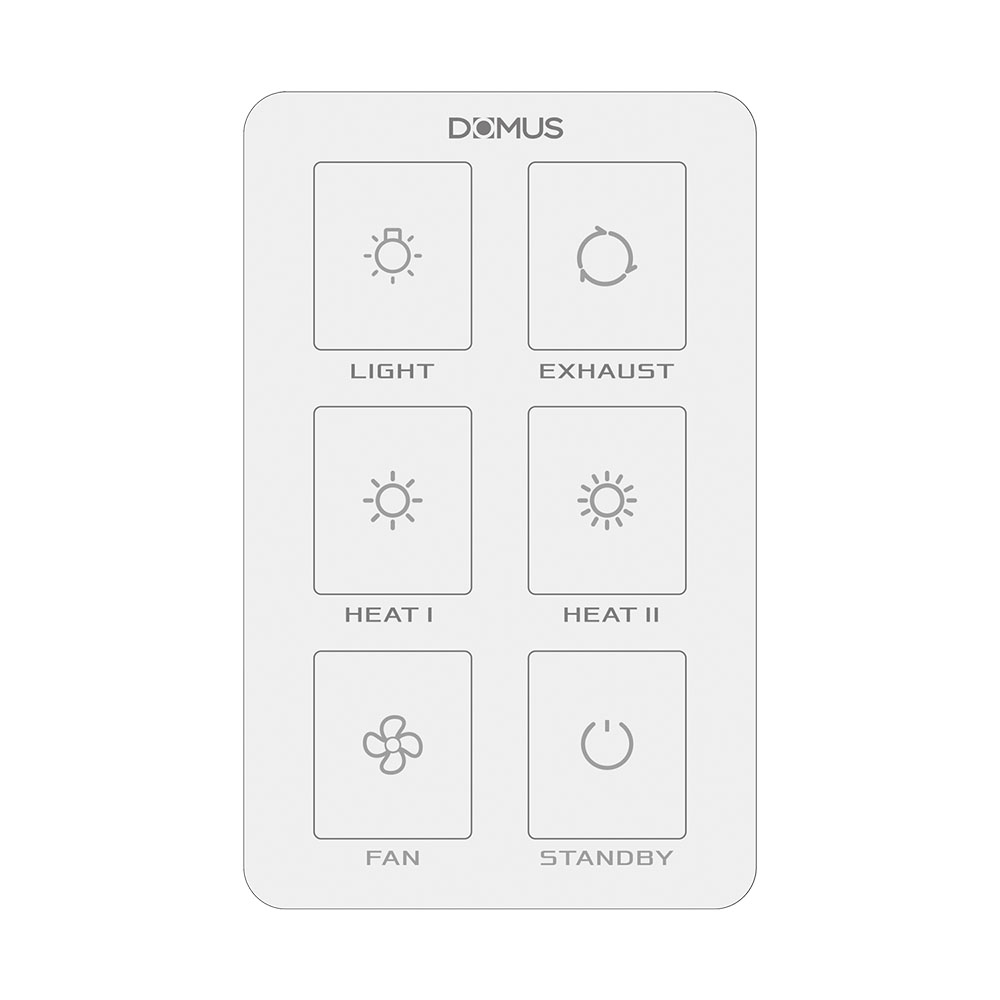

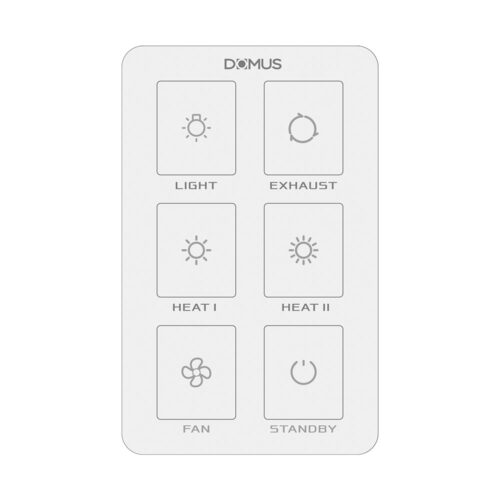

It comes with a horizontal and vertical digital wall controller, 3M flexible ducting and an external vent.
Refer to this installation manual for more information: Domus Heatcore Installation Manual
Refer to this spec sheet for more information: Domus Heatcore Specifications Sheet
Understanding the Domus Heatcore Heat & Light:
| Light Type | LED |
|---|---|
| Light Wattage | 12W |
| Lumens | 850lm, 950lm or 900lm |
| Heat Type | PTC Heating Element |
| Heat Wattage | 2150W |
| Fan Power | 60W |
| Fan Type | Fan Driven |

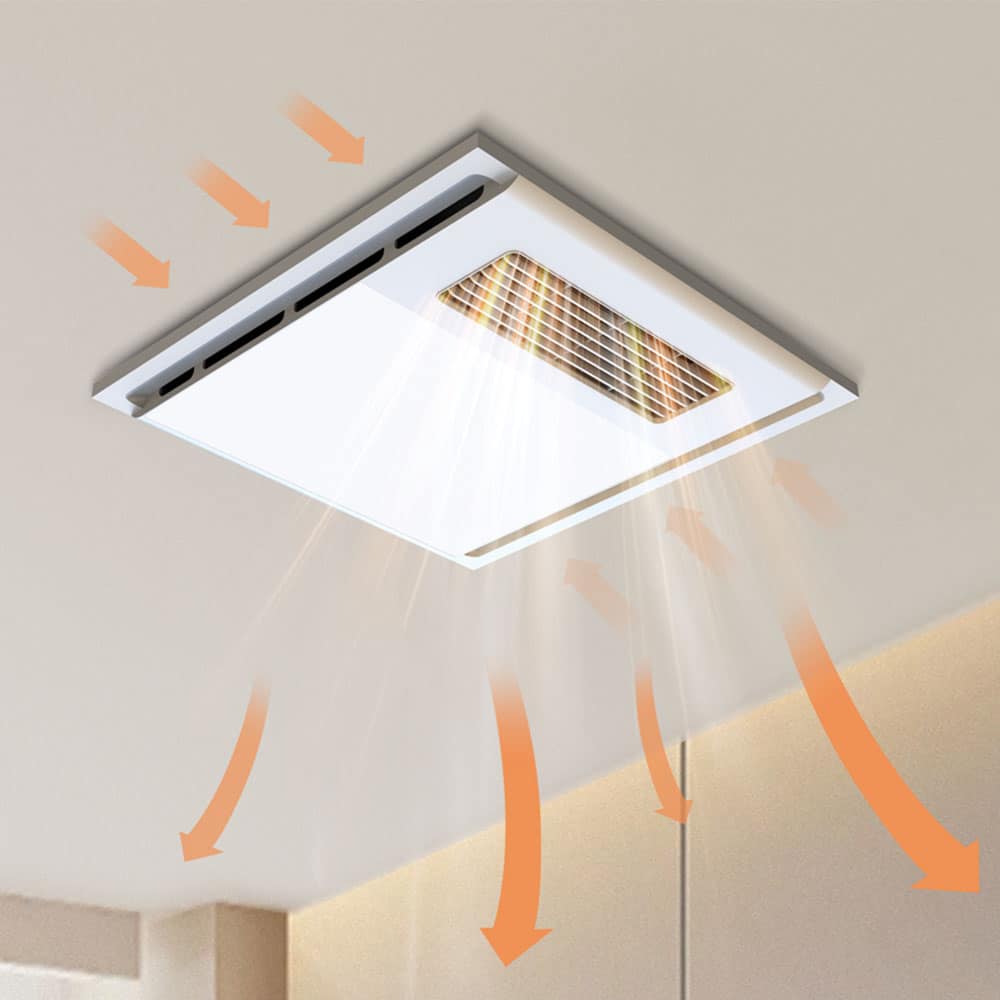

It’s equipped with a 2150W PTC heating element and patented Heat Breeze Technology for fast, efficient warmth and reduced condensation. Four functions: heater, exhaust fan, circulating fan, and tri-colour LED light are built into one powerful unit.
With a 12W tri-colour LED light, the Heatcore provides flexible lighting options: Warm White, Cool White, or Daylight to suit your needs. Its clean, ambient glow elevates the bathroom atmosphere while offering functional brightness.
