Elicent AXM Features Overview:
| Capacity | 250 m3/hr (69.44 l/s) |
|---|---|
| Noise | 39 dB(A) |
| Voltage | 220-248 |
| Motor RPM | 1700 / 2300 |
| Motor Height | 232 |
| Ductable | Yes – 100mm diameter |

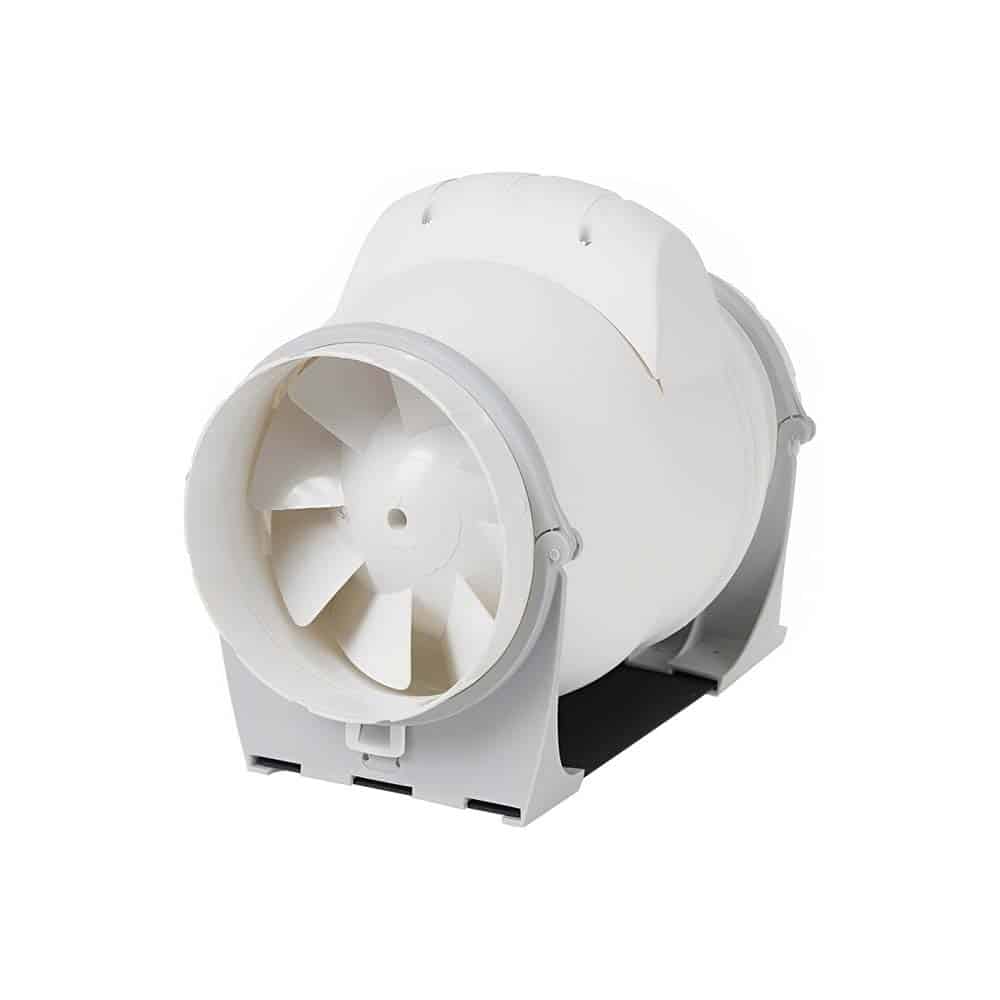

- Constructed from durable polypropylene, making them suitable for direct installation within ductwork.
- A key design feature allows for easy inspection and maintenance by simply opening the clamp and removing the fan unit.
- These fans utilise a helicocentrifugal mixed flow impeller with a downstream stator crafted from ABS material.
- The fans have an IP44 protection rating.
- Speed control can be achieved using phase control or a transformer.
- Thermal overload protection is included as a standard safety feature. An externally fitted terminal box with a cable entry grommet simplifies electrical connections.
- These fans are designed for high efficiency, resulting in minimal energy costs.
- Their quiet running is attributed to optimised aerodynamics and the inclusion of guide vanes.
- Installation is made easy with pre-installed mounting brackets and an external connection box.
- The loosening of clamps further simplifies maintenance, eliminating the need to handle the ductwork. The design allows for versatile installation options.
- Max temperature – 40 degrees
View the comprehensive manuals below to learn more about the product and how it’s installed.
Refer to this spec sheet for more information: AXM- Spect Sheet.
Refer to this user manual for more information: Manual AXM.
