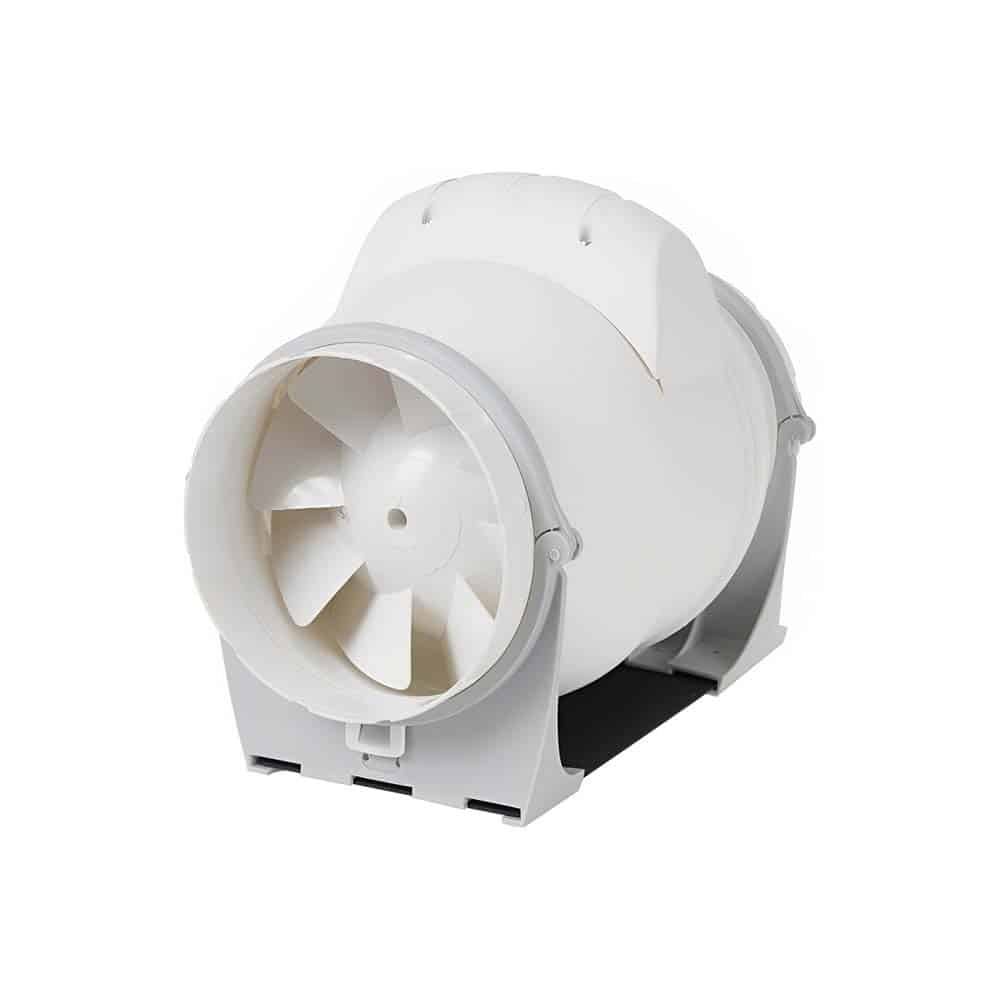

Elicent AXM – Inline Mixflow 200mm Duct – Plastic

Elicent AXM Features Overview:

• Entirely constructed from durable polypropylene, making them suitable for direct installation within ductwork.
• A key design feature allows for easy inspection and maintenance by simply opening the clamp and removing the fan unit.
• These fans utilise a helicocentrifugal mixed flow impeller with a downstream stator crafted from ABS material. Depending on the specific model, they are equipped with asynchronous motors offering 2 or 3 speeds.
• The fans have an IP44 protection rating and a Motor Class B insulation. A robust, maintenance-free motor with ball bearings ensures reliable operation.
• Speed control can be achieved using phase control or a transformer, except for timer-equipped versions.
• Thermal overload protection is included as a standard safety feature. An externally fitted terminal box with a cable entry grommet simplifies electrical connections.
• These fans are designed for high efficiency, resulting in minimal energy costs.
• Their quiet running is attributed to optimised aerodynamics and the inclusion of guide vanes.
• Installation is made easy with pre-installed mounting brackets and an external connection box.
• The loosening of clamps further simplifies maintenance, eliminating the need to handle the ductwork. The design allows for versatile installation options.
• Max temperature – 40 degrees.

View the comprehensive manuals below to learn more about the product and how it’s installed.

Refer to this spec sheet for more information: AXM- Spect Sheet.

Refer to this user manual for more information: Manual AXM.
