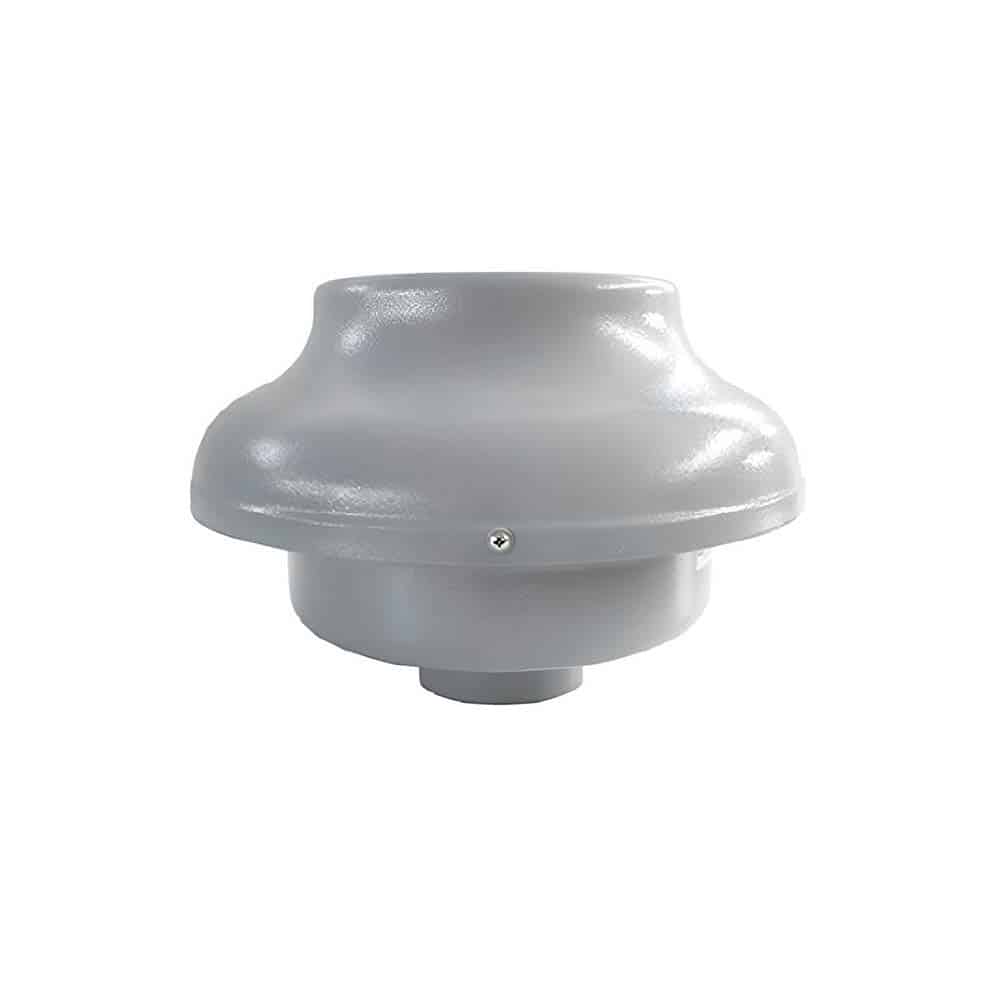

Elicent Centrifugal Mini Roof Fan 200mm

$439.00

Designed for high-performance roof exhaust
Offers a cost-effective centralised ventilation solution for large spaces
Constructed with durable, weather-resistant aluminium & steel with an epoxy finish
Features a ball-bearing motor & IPX5 rated
Capable of handling air temperatures up to 60°C
Includes a 2-year replacement warranty

SKU: ERELRF200

Product Details

Elicent Mini Roof Fan Features Overview:

Installation	Roof
Extraction Rate	794 m3/hr
Noise	55 dB(A)
Motor Wattage	110w
Ductable	Yes – 200mm diameter

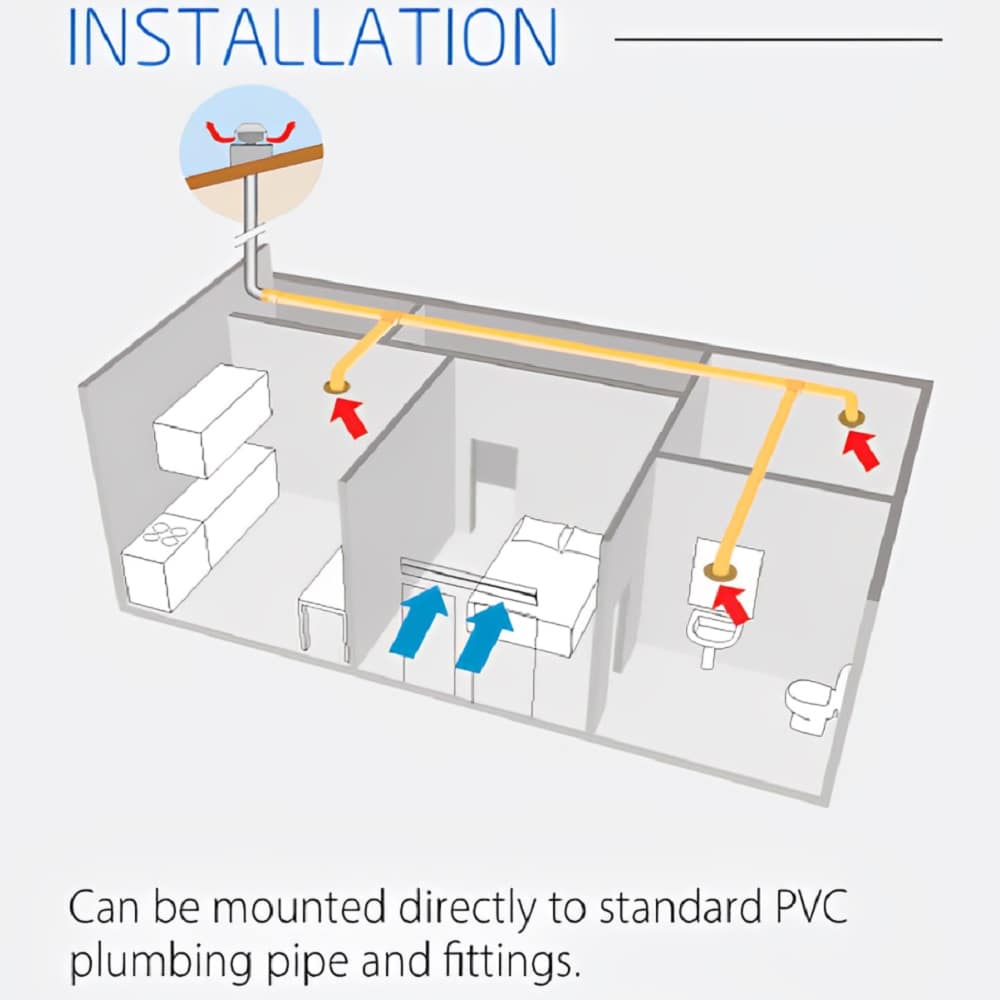

A versatile and robust centrifugal roof fan, the Elicent Mini Roof Fan is suitable for vertical installation. Its protection cowl, made from highly resistant aluminium, is perfectly suited for exposed areas, including coastal regions. Installation involves hardwiring by a qualified electrician, and it’s designed for direct connection to standard 200mm PVC pipes and fittings.

Refer to this installation manual for more information: Elicent MRF Installation Manual

Refer to this spec sheet for more information: Elicent MRF Spec Sheet

Elicent Mini Roof Fan dimensions Elicent MRF Performance Table

Elicent MRF 200 Pressure Curve

Key Specs

Brand	Elicent
Installation	Requires Hardwiring (electrician required)
Warranty	Elicent: The manufacturer offers a 2 year replacement warranty (conditions apply).
Motor Type	Centrifugal
Manufacturers Part Number	2MF2012
Barcode Number	8016510039159

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
