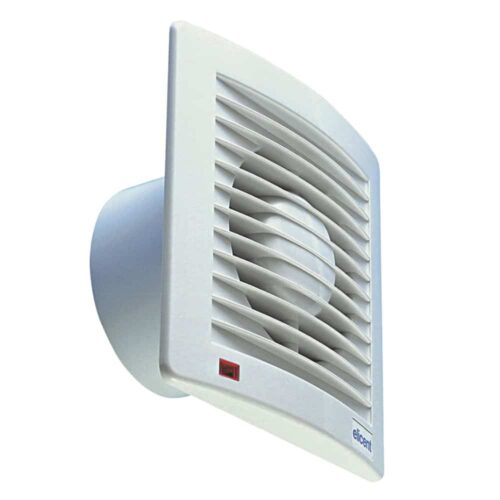

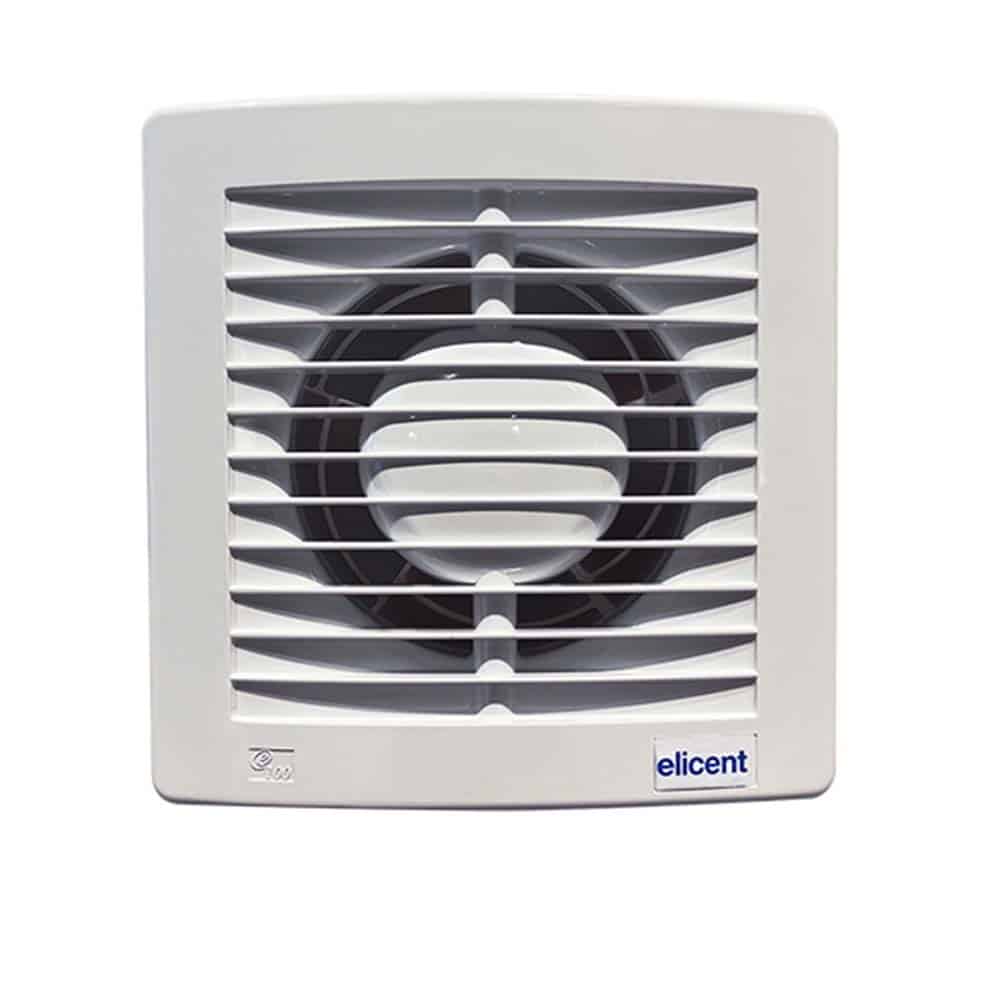

Elicent E-Style 100 PRO MHT – Ceiling/Wall Exhaust Fan – 100mm Duct with Humidity Sensor & Timer – White

$189.00

Crafted in Italy with a sleek design
Flexible Installation, appropriate for both wall and ceiling setups
Designed for a 100mm cut-out for easy installation
Provides an extraction rate of 95 m³/hr, perfect for compact areas
Operates quietly at 31.4 dB(A), featuring a back-draft shutter
Can be linked to a 100mm duct if necessary
Comes with a humidity sensor and timer included

SKU: EMELESHT100WH

Product Details

Elicent E-Style PRO MHT Features Overview:

Installation	Wall / Ceiling
Hole Size	100mm Round
Extraction Rate	95 m3/hr (26.39 l/s)
Noise	31.4 dB(A)
Motor Wattage	14W
Ductable	Yes – 100mm diameter

The Elicent E-Style exhaust fan is a quality Italian-made product suitable for wall or ceiling installation.
It comes with a timer that can be set to 30 seconds to 20 minutes and an adjustable humidity sensor that can be set to 40 to 80% of R.H.
The Humidity Sensor is designed for use in a laundry or bathroom where humidity is generated by appliances.
The fan can be connected to a duct so the air may be exhausted out of the house. It also has a built-in back draft shutter (a clear plastic flap at the back) to stop warm air from escaping or external air from coming in through the fan.

View the comprehensive manuals below to learn more about the product and how it’s installed.

Refer to this user manual for more information: User Manual E-Style

Key Specs

Ductable	Yes
Colour	White
Shape	Square
Duct Size	100mm
Brand	Elicent
Colour	White
Hole Size	100mm
Installation	Requires Hardwiring (electrician required)
Warranty	The Manufacturer offers a 2 year replacement warranty (conditions apply)
Manufacturers Part Number	2MU7110
Rec Room Size (Based on 15 air changes per hour)	Small (10m3 or under)
Barcode Number	8016510030453

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
