Fanco Breeze AC Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 12 Degrees |
| Motor Type | AC |
| Control Type | Wall Control |
| Summer / Winter use? | Reversible from switch on motor |

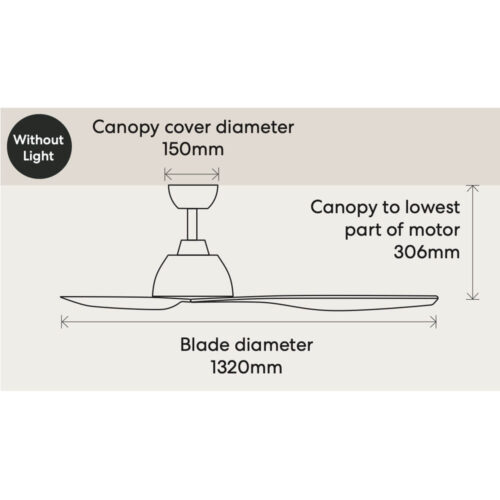

| Ceiling to Blade Drop | 300mm (300mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |
A wonderfully minimalist and modern design constructed from lightweight ABS blades. Anti-corrosive paint has been applied to all metal components for outdoor/coastal installations.
Fanco Breeze AC Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 (High) | 206 | 45 | 9030 m3/hr |
| 2 | 154 | 26 | 7283 m3/hr |
| 3(Low) | 106 | 15 | 5622 m3/hr |
The three ABS plastic blades are designed to maximize airflow while being lightweight and resistant to wear. Its 52-inch diameter and performance make this an excellent choice for bedrooms & living spaces.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet and installation manual here.
CLICK TO DOWNLOAD FANCO BREEZE AC SPEC SHEET
CLICK TO DOWNLOAD FANCO BREEZE AC INSTALLATION MANUAL
Please note: If installed outdoors, this fan must be installed in an enclosed outdoor area, a minimum of 1.5m from the edge of the eaves/roof. The fan must be fully shielded from wind, rain, and direct sunlight.
