Fanco Horizon Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 162cm (64″) |
| Blade Pitch | 17 Degrees |
| Motor Type | DC |
| Control Type | Wall Control | Remote Control | Smart Control |
| Summer / Winter use? | Reversible from wall control, remote & smart app |

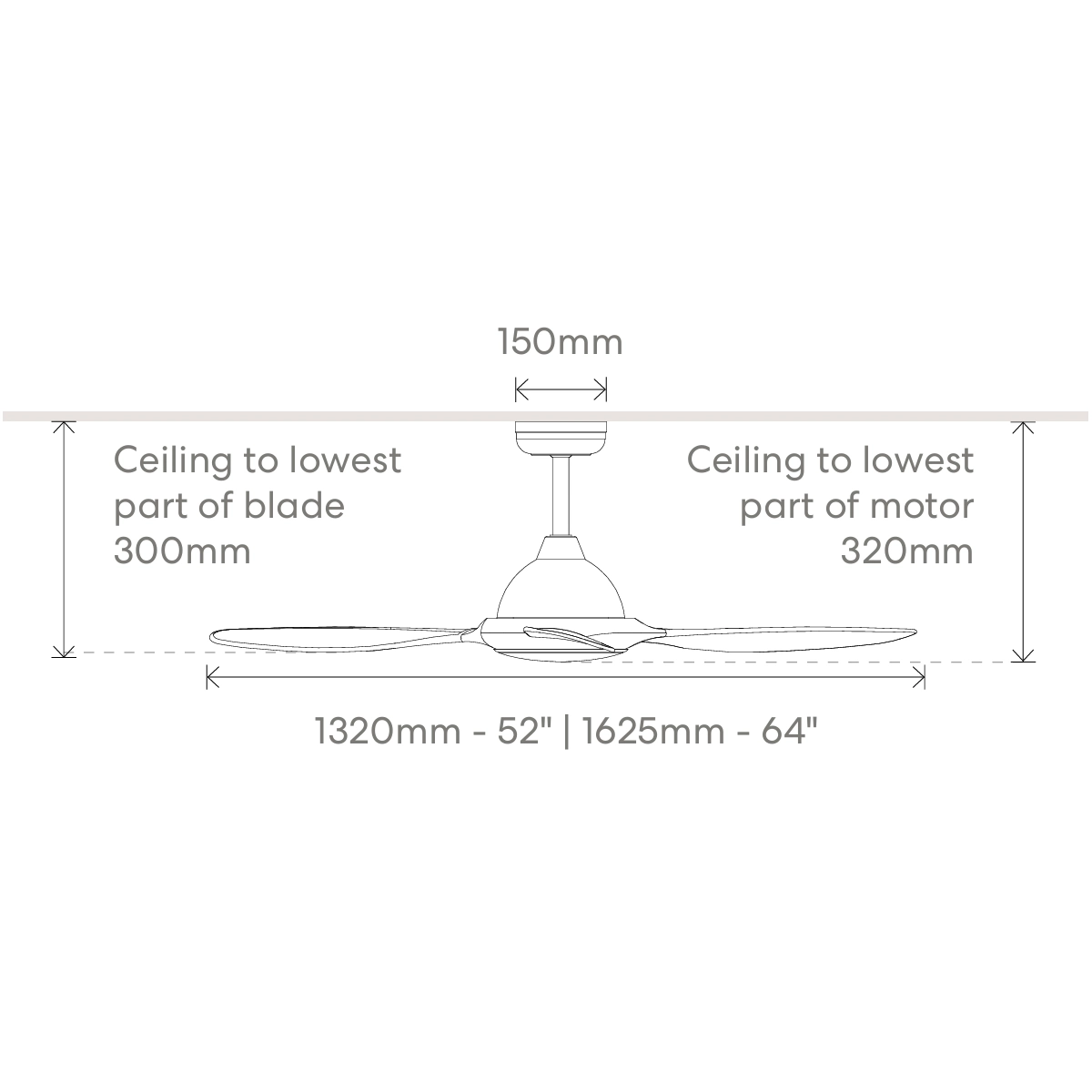

| Ceiling to Blade Drop | 300mm (320 to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |
The fan is flexible in installation thanks to Horizon’s suitability in indoor & outdoor locations, including coastal locations. It is also usable for angled ceilings up to 15 degrees.
Fanco Horizon Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 4.9 | 6,913 m3/hr |
| 2 | 88 | 7.1 | 8,821 m3/hr |
| 3 | 116 | 11.6 | 10,881 m3/hr |
| 4 | 145 | 18.6 | 13,998 m3/hr |
| 5 | 174 | 30 | 17,376 m3/hr |
| 6 | 190 | 45 | 19,010 m3/hr |
The Horizon is a popular choice for larger areas with very high airflow of 19,010 m3/hr at maximum speed. A class-leading energy-efficient DC motor consumes only 45w at this speed.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet, installation manual, smart ceiling fan guide set and wall control installation guide up here.
CLICK TO DOWNLOAD FANCO HORIZON SPEC SHEET
CLICK TO DOWNLOAD FANCO HORIZON INSTALLATION MANUAL
CLICK TO DOWNLOAD SMART CEILING FAN SETUP GUIDE
CLICK TO DOWNLOAD WALL CONTROL INSTALLATION GUIDE
