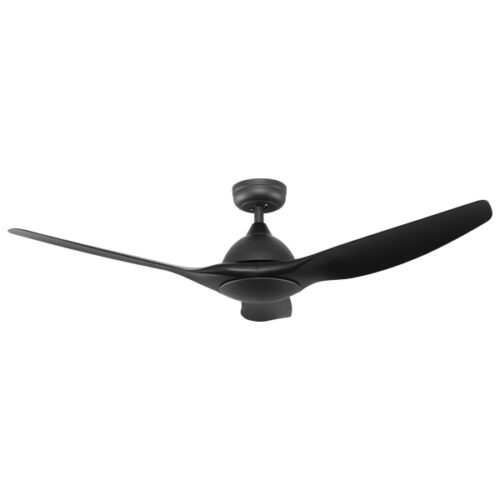

Fanco Horizon Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 17 Degrees |
| Motor Type | DC |
| Control Type | Remote Control | Smart Control |
| Summer / Winter use? | Reversible from remote & smart app |
| Ceiling to Blade Drop | 300mm (320 to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |

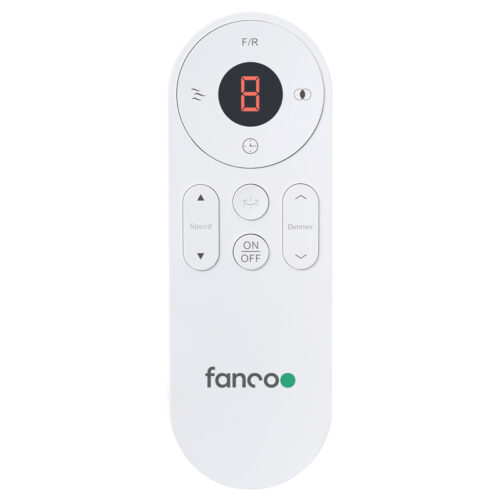

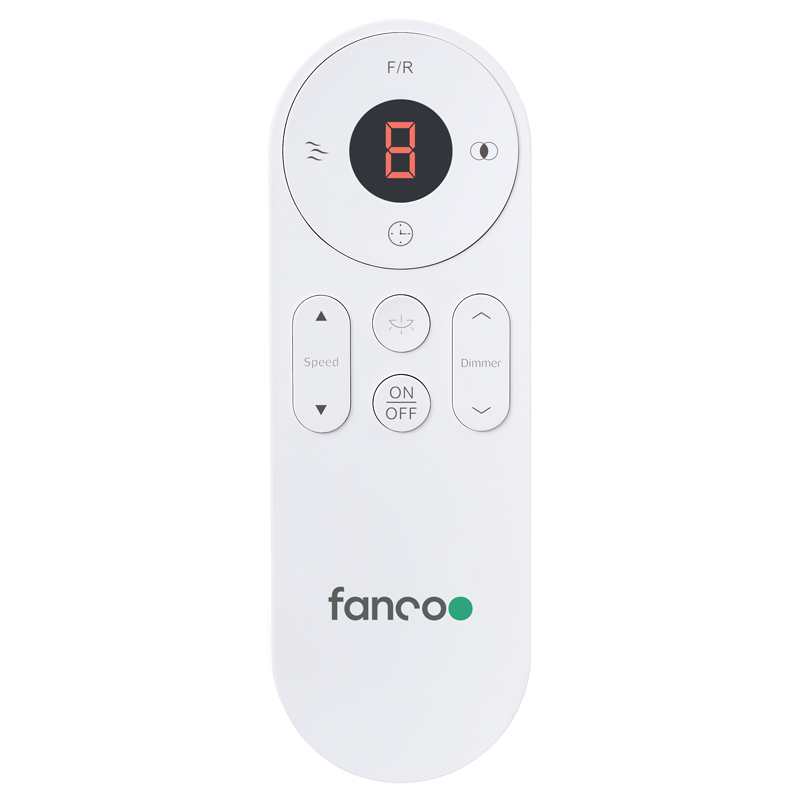

The fan is flexible in installation thanks to Horizon’s suitability in indoor & outdoor locations including coastal locations. It is also usable for angled ceilings up to 15 degrees. The fan can be controlled with either the remote or by using the smart app. Timer settings have 1-9 hour settings.
Fanco Horizon Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 5.3 | 3,240 m3/hr |
| 2 | 88 | 6.5 | 5,760 m3/hr |
| 3 | 116 | 8.8 | 7,551 m3/hr |
| 4 | 145 | 13.1 | 9,829 m3/hr |
| 5 | 174 | 18.5 | 12,277 m3/hr |
| 6 | 200 | 25.3 | 13,862 m3/hr |
The Horizon is a popular choice for larger areas with very high airflow of 13,862 m3/hr at maximum speed. A class-leading energy efficient, DC motor consumes only 25.3W at this speed.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet, installation manual and smart ceiling fan guide set up here.
CLICK TO DOWNLOAD FANCO HORIZON SPEC SHEET
CLICK TO DOWNLOAD FANCO HORIZON INSTALLATION MANUAL
CLICK TO DOWNLOAD SMART CEILING FAN SETUP GUIDE
Fiona (verified owner) –
Love this particular brand and model of ceiling fans – Fanco ‘Horizon’. Can’t fault them. Had them in previous house recently sold and now installed in our new place. They are whisper quiet, look brilliant, DC, 6 speed settings. Only a bit disappointed I couldn’t buy them in the ‘Koa’ timber look style, however, the black look awesome too.
Ann (verified owner) –
Would definately recommend, great design and work well.
Glenn –
It’s a great product, I installed it myself and used a licensed Electrician to wire it up.
Dominic –
Stylish fan and silent operation
