Fanco Mixflow TT Inline Fan 315mm - Image 2

Fanco Mixflow TT Inline Fan 315mm

Name: Fanco Mixflow TT Inline Fan 315mm
Brand: Fanco
SKU: EXVUTTP315
Availability: InStock
Rating: 5.00 (2 reviews)

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

$499.00

The Fanco TT 315 is a quality inline fan suitable for connection to 350mm ducting. This fan has two speeds available and requires an electrician to connect the fan to the desired speed – it does not include a speed switch. The lower setting has an output capacity of 1570 m3/hr and the higher setting has an output capacity of 2050 m3/hr.

SKU: EXVUTTP315

Product Details

TT Features Overview:

Speed	HIGH	LOW
Capacity	2050 m3/hr	1570 m3/hr
Noise	58 dB(A)	TBC
Wattage	320w	TBC
Ductable	Yes – 350mm diameter

The Fanco TT range is a high quality range of mixflow inline fans. This fan has two speeds available and requires an electrician to connect the fan to the desired speed – it does not included a speed switch.

Typically these fans are used for exhaust applications. See accessories above for the components designed to be used in conjunction with the fan.

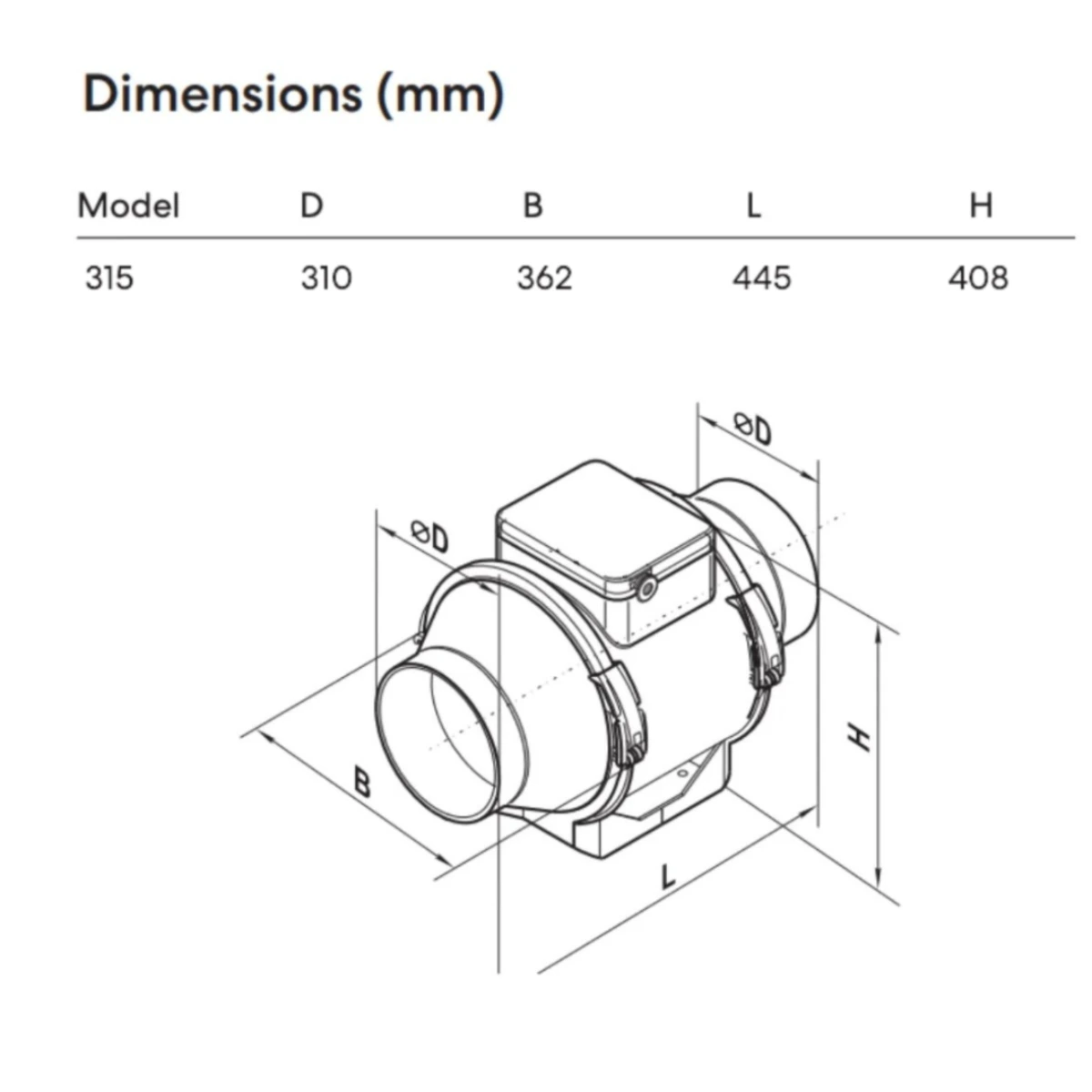

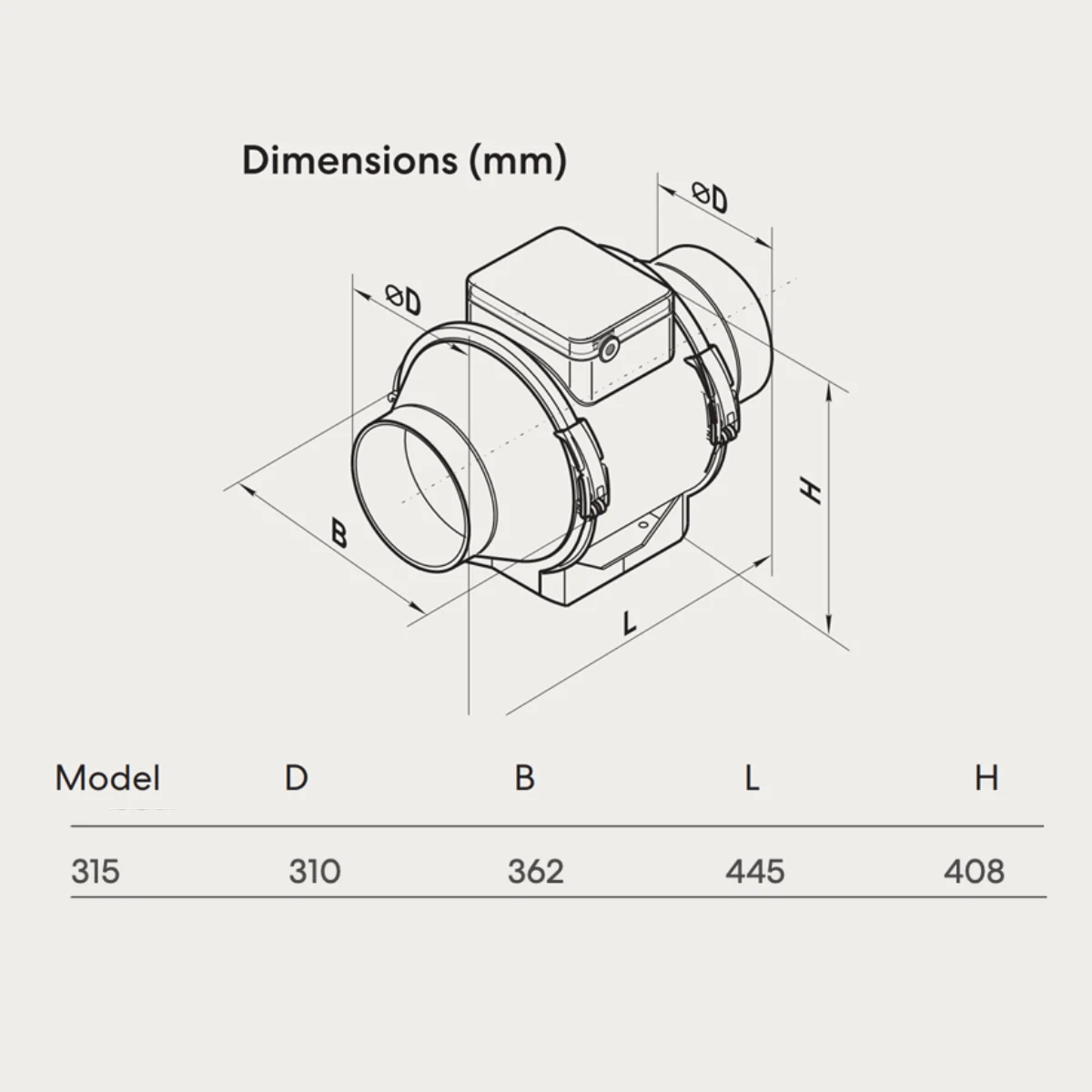

The outlets of this fan are 315mm – the closest match in terms of duct size that we recommend for this fan is 350mm flexible duct.

TT Inline Fan Features:

Ball bearing motors with two speeds
Built in overheating protection with automatic restart
Motor protection rating IP X4
The casing is made of high-quality durable ABS plastic (TT 100-200)
or fire resistant polypropylene (TT 250-315)
Clever design ensures easy service and maintenance access

This fan needs to be hardwired by an electrician and does not include a speed switch.

Key Specs

Brand	Fanco
Colour	White
Installation	Requires Hardwiring (electrician required)
Warranty	The Manufacturer offers a 2 year replacement warranty (conditions apply)
Motor Type	Mixflow
Manufacturers Part Number	EXVUTTP315
Barcode Number	4824032089170

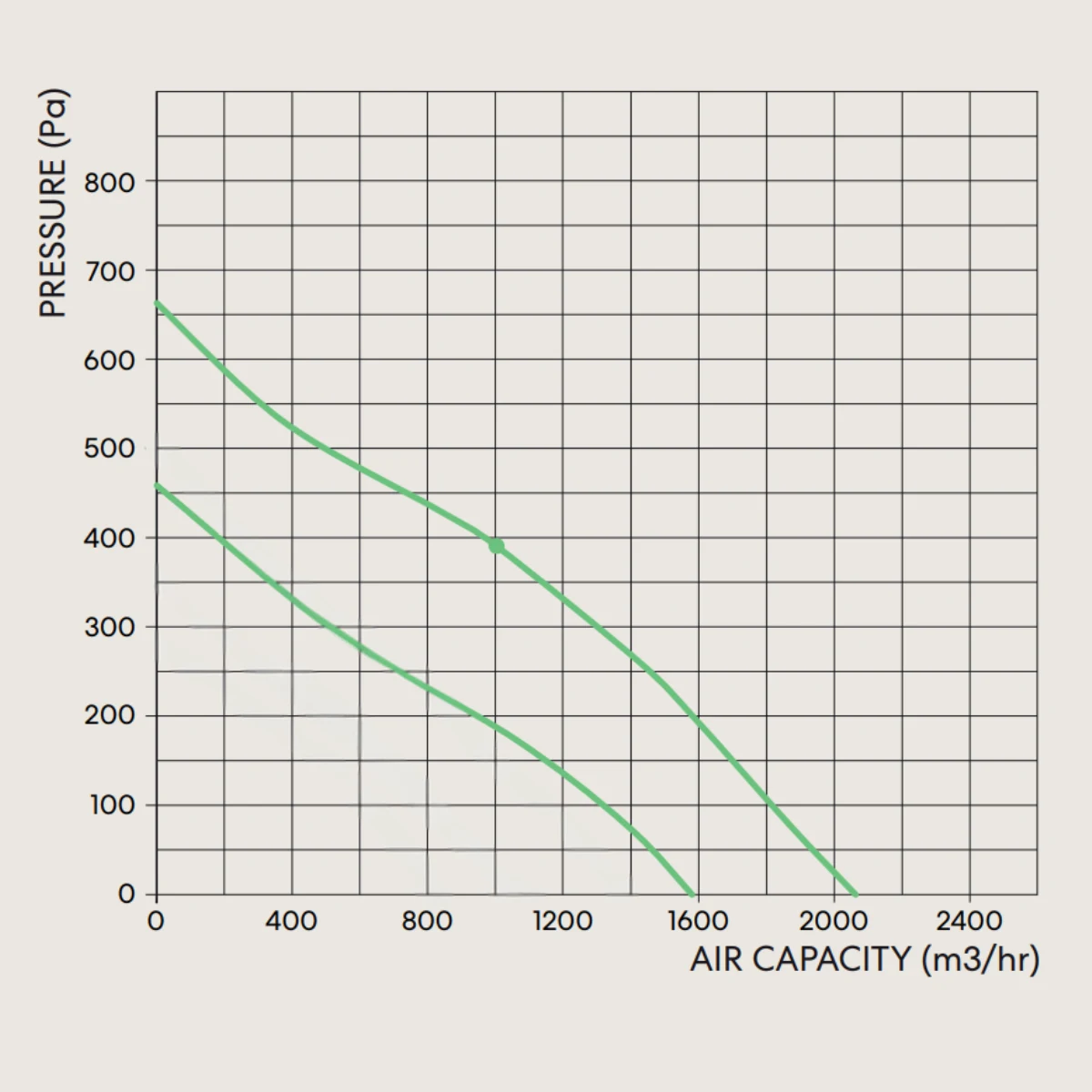

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
