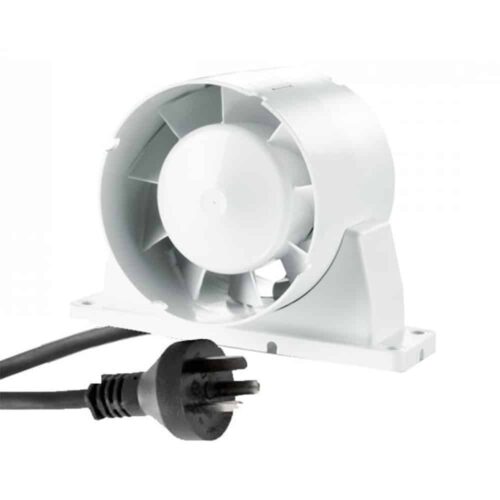

Fanco Axial VKO Inline Fan 100mm with Lead & Plug

Name: Fanco Axial VKO Inline Fan 100mm with Lead & Plug
Brand: Fanco
SKU: W-EXVUVKO1-LP
Availability: InStock

$85.00

The Fanco VKO is a good quality axial inline fan generally used for applications which require short lengths of duct to service single rooms or small areas.This fan plugs into an existing powerpoint. If you are purchasing accessories, please check to see if they need to be installed by an electrician.

SKU: W-EXVUVKO1-LP

Product Details

VKO Features Overview:

Capacity	135 m3/hr
Noise	37 dB(A)
Wattage	16w
Ductable	Yes – 100mm diameter

The Fanco VKO range are high quality in line fans that are normally ducted and may be used for exhaust, air transfer and other applications. The fan comes with a mounting bracket but can also be used without the bracket if required (see images for pictures of the fan with and without bracket).

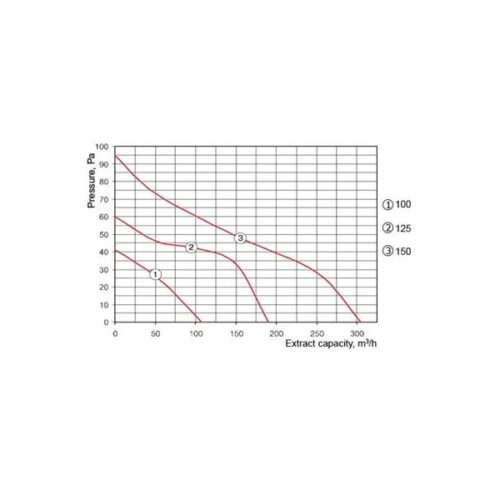

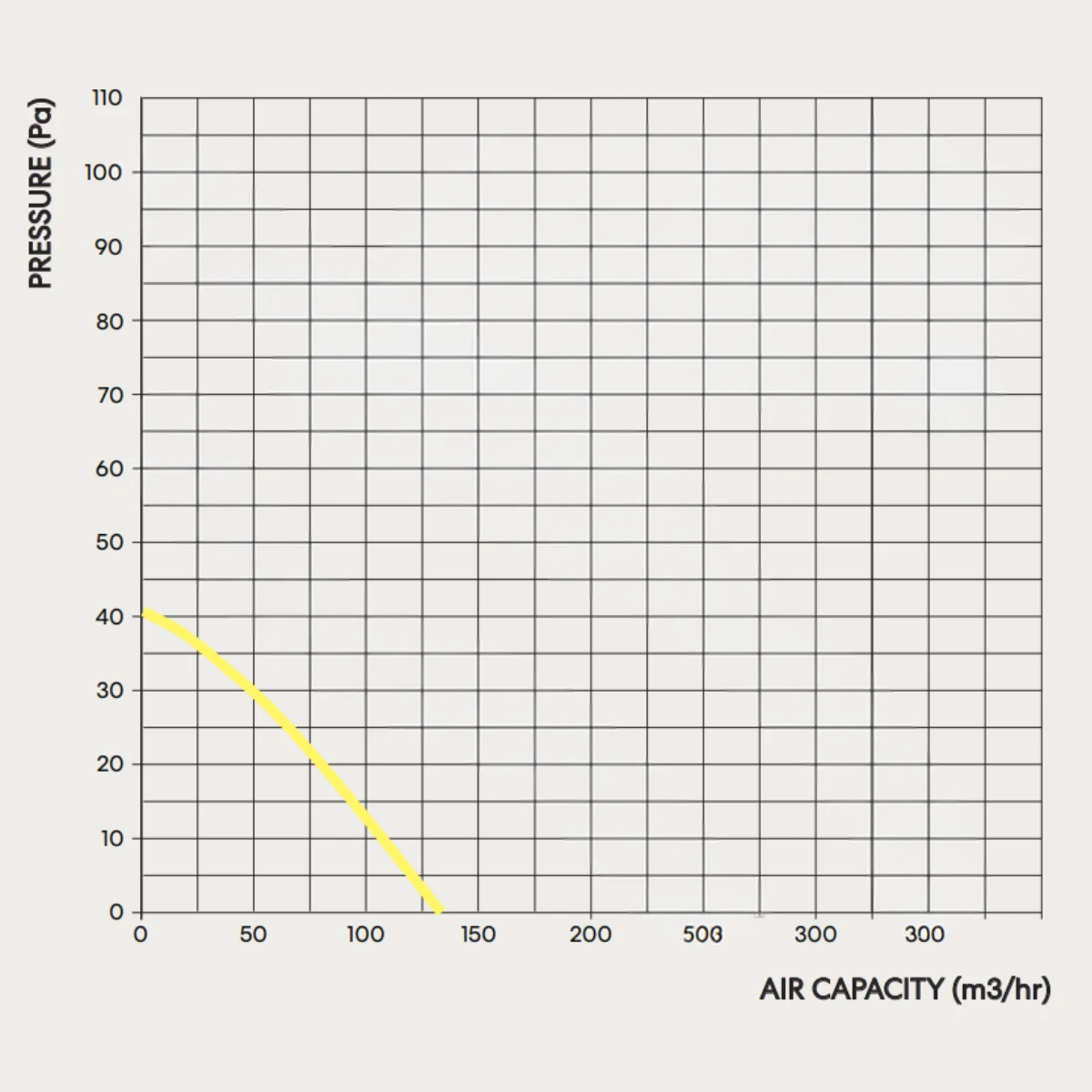

The VKO range by Fanco is available in three sizes: 100mm, 125mm and 150mm. Generally the VKO is a fan that should not be ducted any longer than a couple of metres, for more information please refer to the capacity loss image to give you a rough idea of how the fan performs along a duct run.

VKO Inline Fan Features:

The casing and Impeller are made from high quality, durable ABS plastic
High efficiency
Protected rating IPX4
Reliable and low watt electric motor
Overheating protection capacity

This fan comes with a lead and plug attached – therefore simply plugs into a powerpoint. An electrician is not required to perform installation. However, please be aware that you will require an electrician if you choose to use this fan in conjunction with hardwired accessories, including but not limited to speed controllers. The lead attached to the fan is 1m in length.

Important Notice: A member of our technical team will install the lead and plug to the fan. Please be aware we are unable to accept returns for ‘change of mind’ reasons if a plug is installed.

Key Specs

Brand	Fanco
Colour	White
Installation	Includes Lead & Plug, Accessories May Require Hardwiring
Warranty	The Manufacturer offers a 2 year replacement warranty (conditions apply)
Motor Type	Axial
Manufacturers Part Number	EXVUVKO1 – EALEAD

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
