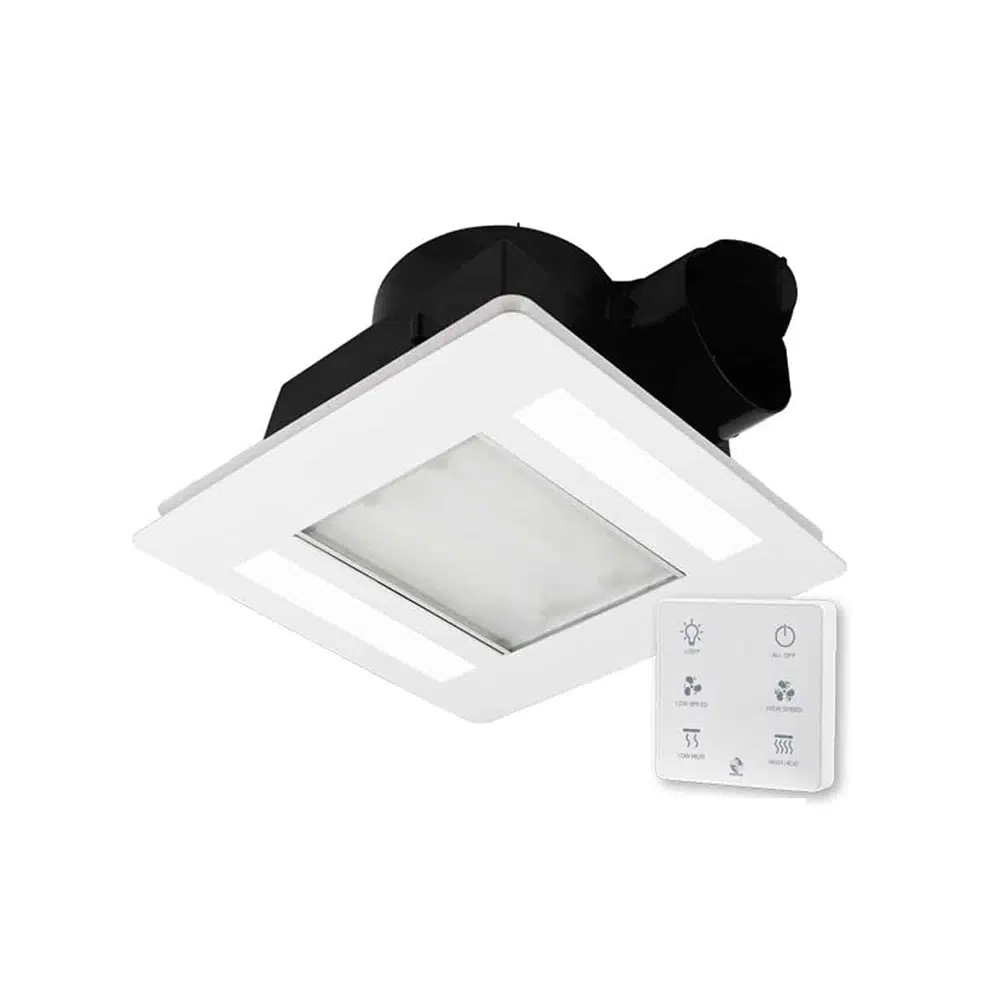

Fantech Response Radiance 3-in-1 Exhaust Fan with LED Light – White

$579.00

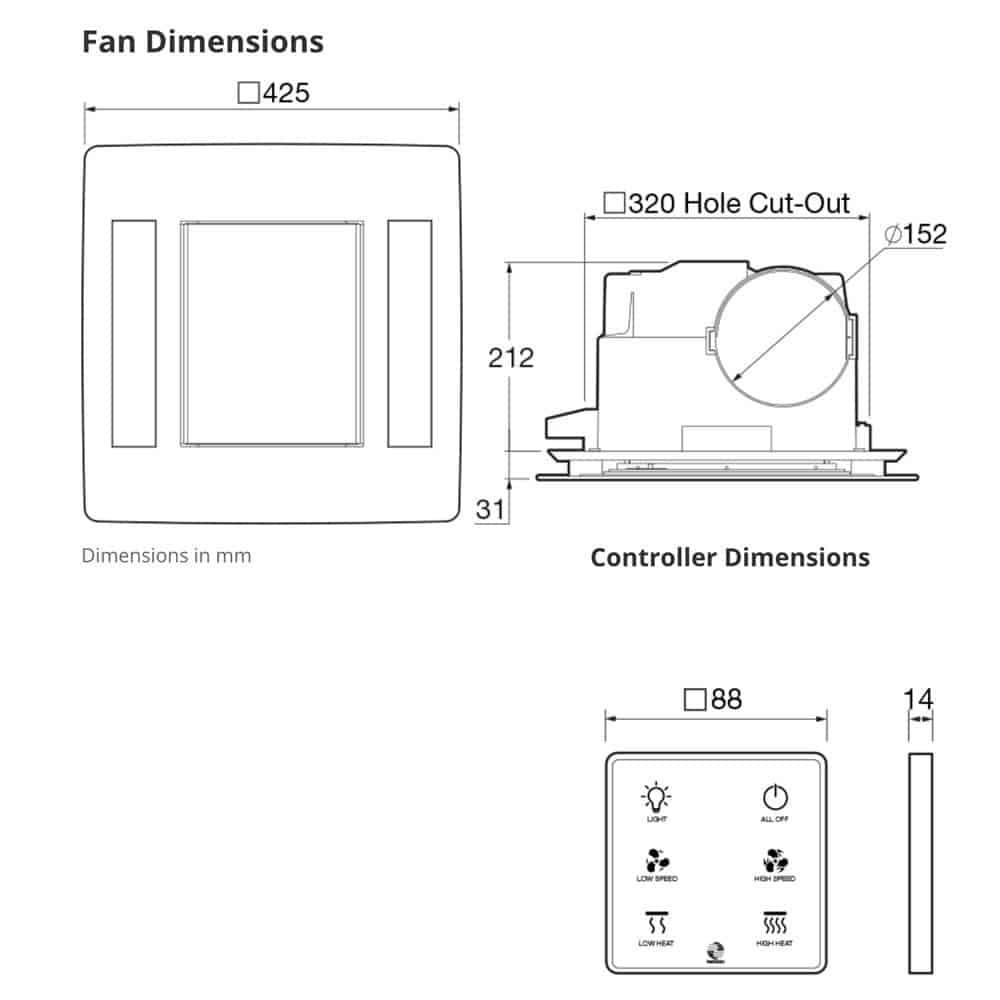

Unit requires 220mm of cavity space and a hole size of 320mm x 320mm

3-in-1 heat, light, and exhaust unit
2x 500W heat lamps for fast heating
Supplied with a 24W tri-colour LED light
Operated through a wireless wall-mounted controller

SKU: ECFTRR1WH

🇦🇺 Quality fans for Aussie homes since 2008

Product Details

Fantech Response Radiance Features Overview:

Installation	Ceiling ONLY
Hole Size	320mm x 320mm
Required Install Depth	Requires 220mm of cavity space
Extraction Rate	High: 313 m3/hr Low: 108/m3/hr
Noise	High: 37 dB(A) Low: 27 dB(A)
Motor Wattage	40W
Ductable	Yes – 150mm diameter

This fan comes ready with a lead and plug which connects to a power socket. The fan features a two-speed motor; from the wall control you can select high or low speed.

Refer to these links to download the installation manual and spec sheet for more technical details.

CLICK TO DOWNLOAD FANTECH RESPONSE RADIANCE INSTALLATION MANUAL

CLICK TO DOWNLOAD FANTECH RESPONSE RADIANCE SPEC SHEET

Understanding the Fantech Response Radiance Heat & Light

Light Type	LED
Light Wattage	24W
Lumens	1560lm
Light Temperature	3000K, 4200K, or 6000K
Heat Lamp	2 x 500W Heat Lamps

Key Specs

Brand	Fantech
Manufacturers Part Number	RESP3-1WH
Motor Type	AC
Colour	White
Hole Size	320mm x 320mm
Installation	Includes Lead & Plug, Requires Hardwiring (electrician required)
Ip rating	IPX4
Rec Room Size (Based on 15 air changes per hour)	Large (20m3 & Over)
Warranty	The Manufacturer offers a 5 year replacement warranty (conditions apply)

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
