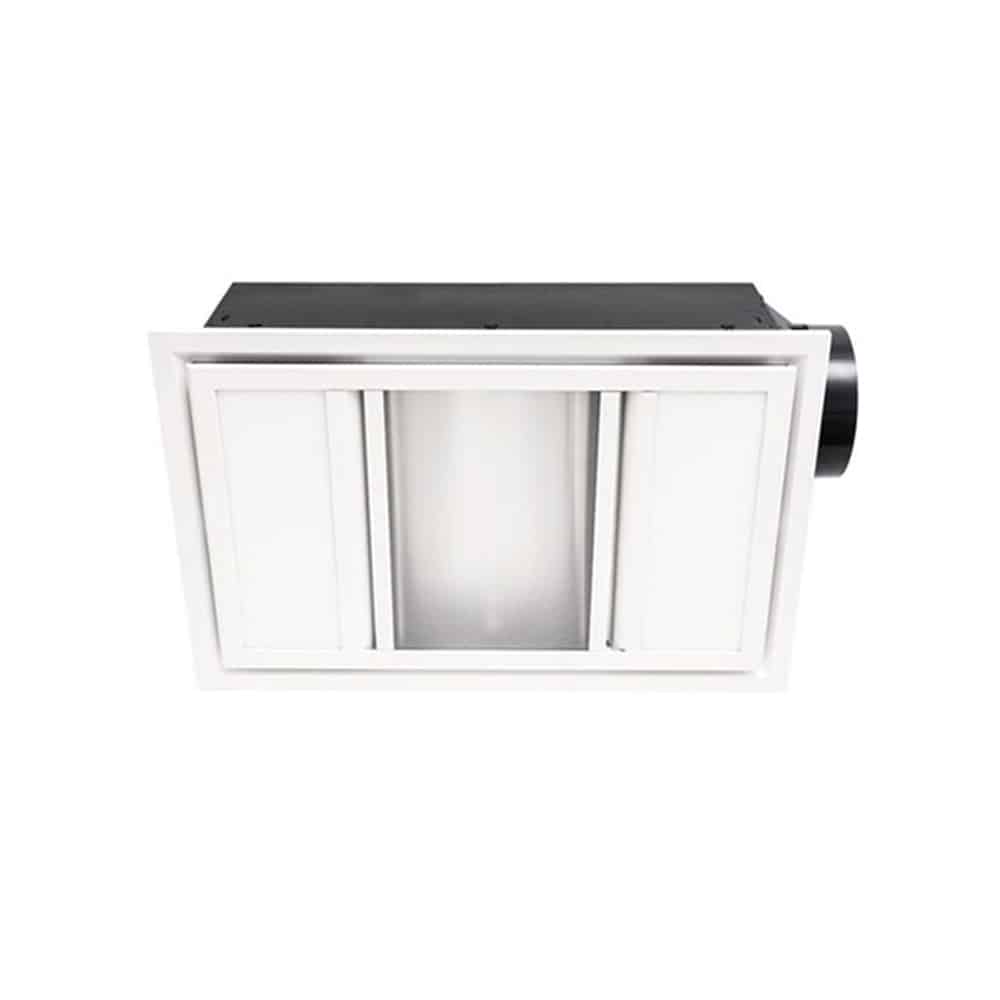

The newly updated Mercator Domino Exhaust Fan in White (BH152ESWWH) delivers function and style in one exceptional package.
This 3 in 1 exhaust fan features a 800W linear heat lamp for instant heating, x2 11W CCT LED panels (3000K Warm White, 4000K Neutral White and 5000K Cool White) and is side ducted with included draft stopper. This updated model features a CCT (colour changing technology) LED light, allowing you to select from warm, natural or cool light.
This exhaust fan houses a powerful 60 watt motor. With a 500 m3/hr capacity and its modern 3 panelled facing, this 3-in-1 model attends to your bathroom’s heating, lighting and exhaust needs. View all technical specifications below:
🇦🇺 Quality fans for Aussie homes since 2008
| Installation | Ceiling Only |
|---|---|

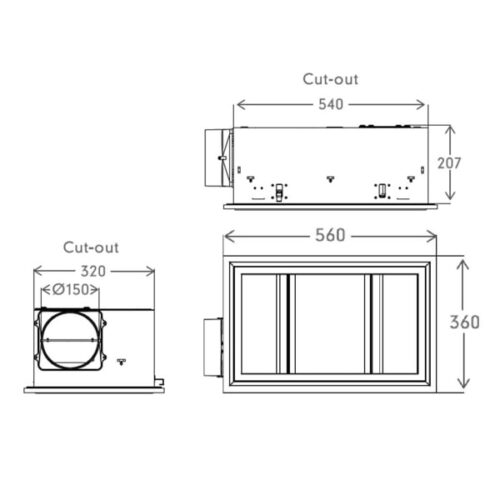

| Hole Size | 540mm x 320mm |
| Required Install Depth | Requires 235mm of cavity space |
| Extraction Rate | 500 m3/hr |
| Noise | TBC |
| Motor Wattage | 60w |
| Ductable | Yes – 150mm diameter |
| Light Type | CCT LED |
|---|---|
| Light Wattage | 2x 11w |
| Lumens | TBC |
| Light Temperature | CCT – 3000K, 4000K, 5000K |
| Heat Lamp | 1x 800W, R7 |
| Brand | Mercator |
|---|---|
| Colour | White |
| Hole Size | 540mm x 320mm |
| Installation | Requires Hardwiring (electrician required) |
| Warranty | The manufacturer offers a 2 year warranty on heat lamp followed by a 3 year in-home warranty. |
| Manufacturers Part Number | BH152ESWWH |
| Barcode Number | 9312699211225 |
All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.
For comprehensive warranty information relating to this product please visit the manufacturers website.
