Fanco OV1 250 Features Overview:
| Installation | Wall / Ceiling |
|---|---|

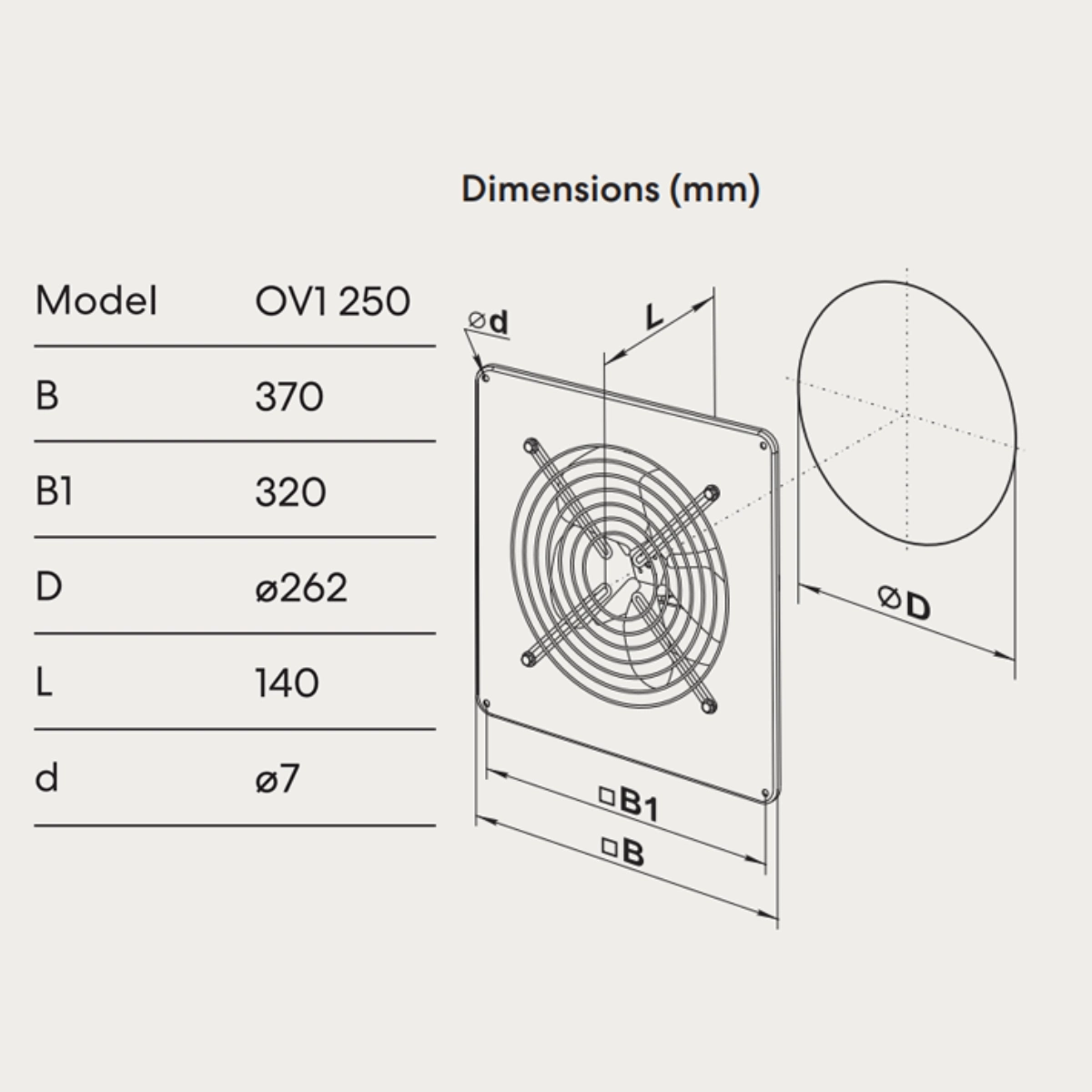

| Hole Size | 262mm |
| Extraction Rate | 1070 m3/hr |
| Noise | 48 dB(A) |
| Motor Wattage | 68w |
| Ductable | Yes – Very Short Length ONLY |

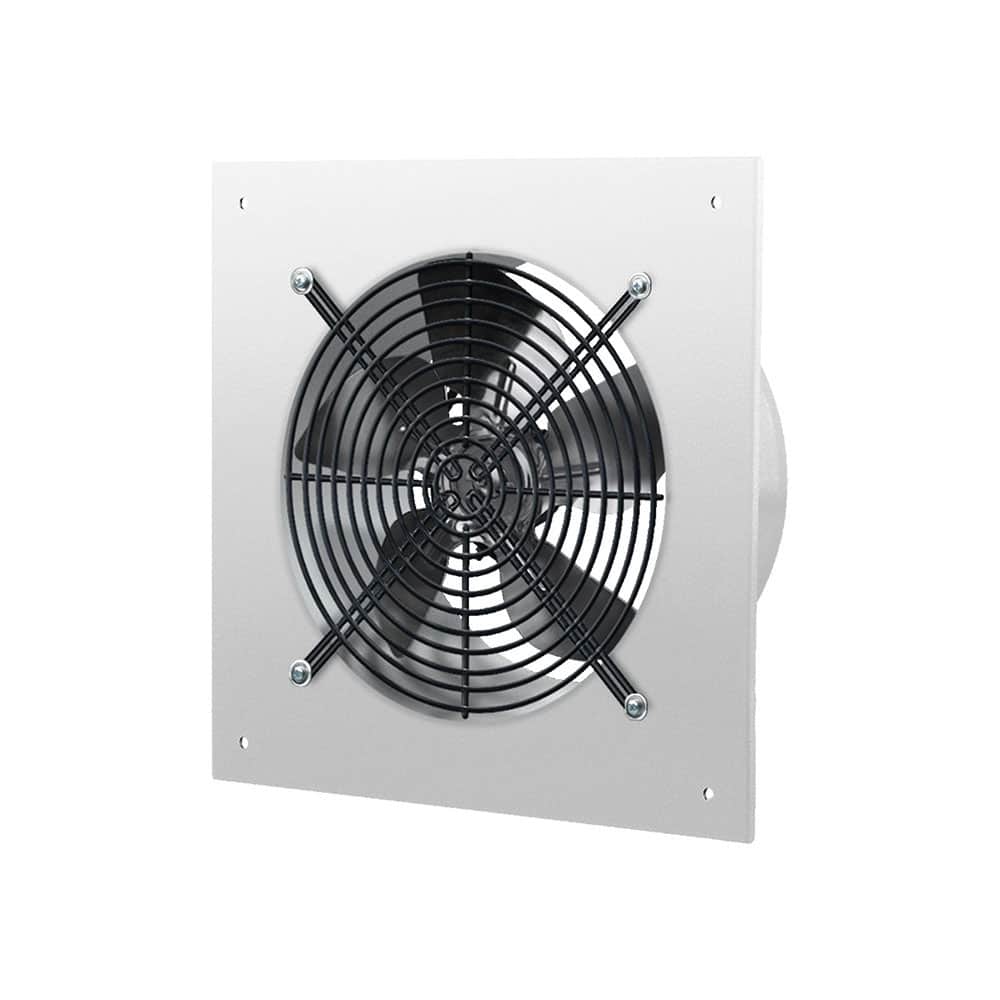

The OV1 exhaust fan is a commercial grade fan that can be speed controlled (you will need to purchase the controller listed as an accessory). The fan can only be connected to very short lengths of duct and is well suited for a wide range of commercial applications.
- Designed to be mounted to a wall or ceiling.
- The fan casing is made of steel with polymeric coating.
- The terminal box is fitted with a cord for remote connection.
- Single-phase asynchronous motor with external rotor is equipped with thermal overheating protection.
- Automatic restart as well as ball bearings for long service life.
- Motor rating protection IP 24.
- Ductable – Suits 300mm Duct (must be very short straight lengths).
Detailed instructions on setup, installation, wiring, and operation. These resources provide everything you need to ensure the fan is installed correctly and performs reliably.
CLICK TO DOWNLOAD OV1 SPEC SHEET
CLICK TO DOWNLOAD OV1 INSTALLATION MANUAL
