Panasonic DC Ceiling Ventilator Features Overview:
| Installation | Ceiling ONLY |
|---|---|
| Hole Size | 230mm x 230mm (Square) |
| Required Install Depth | Requires 200mm of cavity space |
| Extraction Rate | 220 m3/hr (61.11 l/s) |
| Noise | 43 dB(A) |
| IP Rating | IPX2 |
| Ductable | Yes – 100mm diameter |

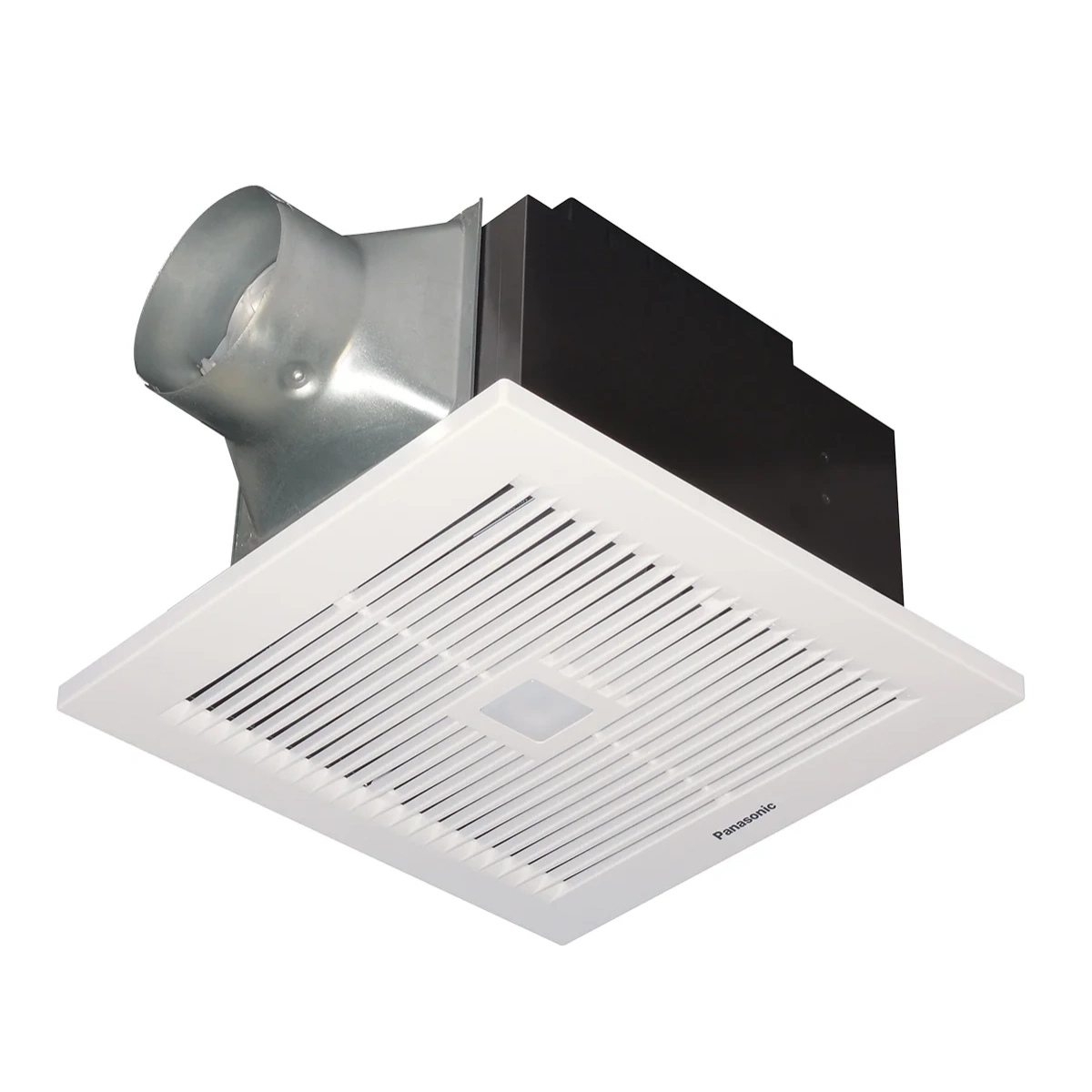

The Panasonic DC Ceiling Ventilator is a high-performance ceiling exhaust fan designed to deliver efficient, quiet ventilation for bathrooms, en-suites, toilets, and laundries. Featuring intelligent constant air volume technology, it maintains consistent airflow with three selectable settings (90 / 144 / 220 m3/hr) to suit varying ventilation requirements, while the double orifice and casing design reduces operating noise to just 43 dB(A) at high speed.

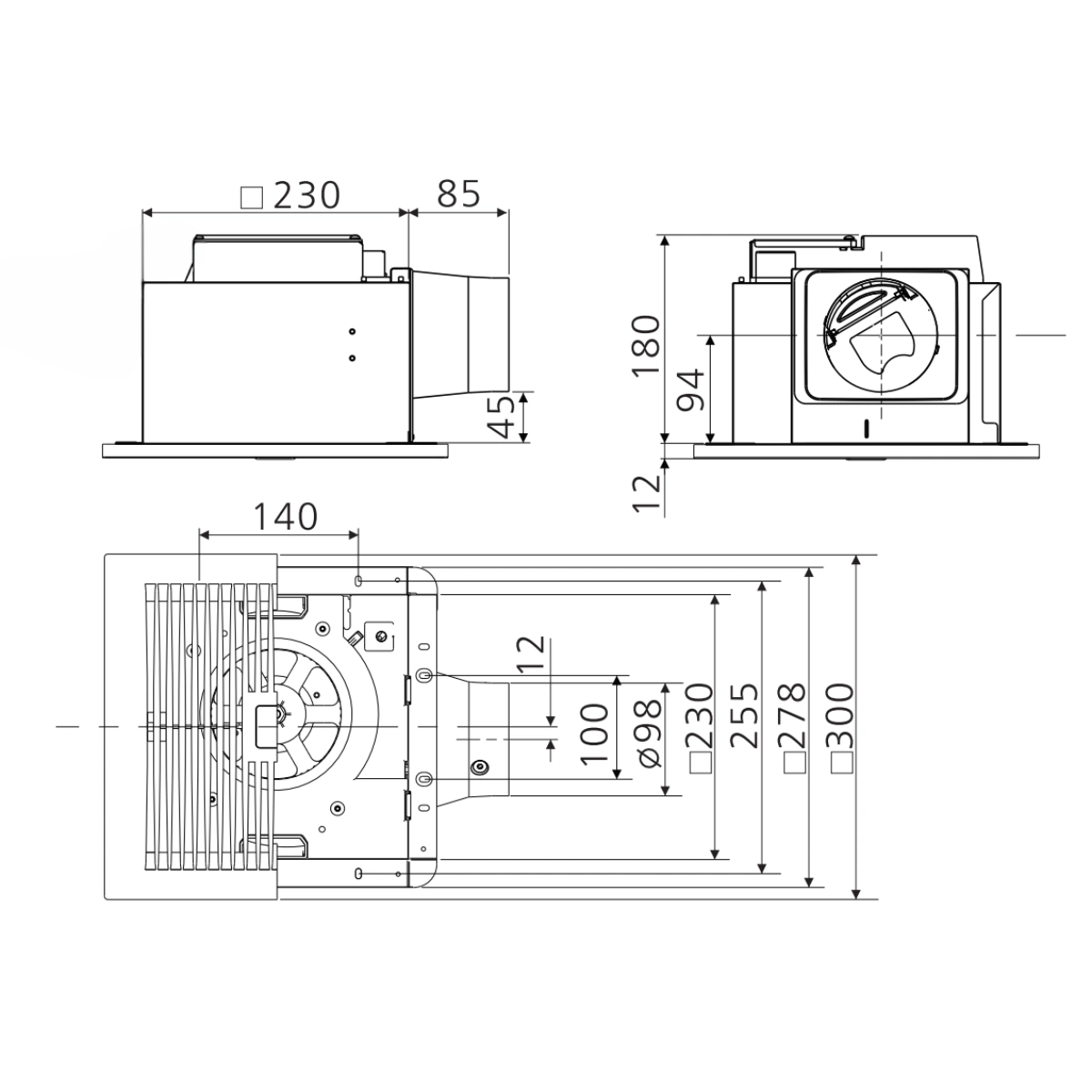

Designed with a 300mm x 300mm slimline fascia and a compact 180mm motor height, it is well-suited to installations with limited ceiling space. Additional practical features, such as an internal fan guard for added safety and a built-in backdraft stopper, ensure dependable, controlled operation across a range of environments. This model also features an integrated motion sensor that automatically turns the exhaust fan on when movement is detected and switches it off after you leave the room, providing convenient, energy-efficient ventilation.
When installing the fan, it should not be installed directly into the plasterboard. Panasonic recommends the installer place wood or metal materials on top of the ceiling fan, then screwing into that.
