Inline Fan Features Overview:
| Installation | Typically in Ceiling Cavity |
|---|---|
| Extraction Rate | 555 m3/hr |
| Noise | 33 dB(A) |
| Motor Wattage | 52W |
| Ducting | 6m of 150mm flexible duct |

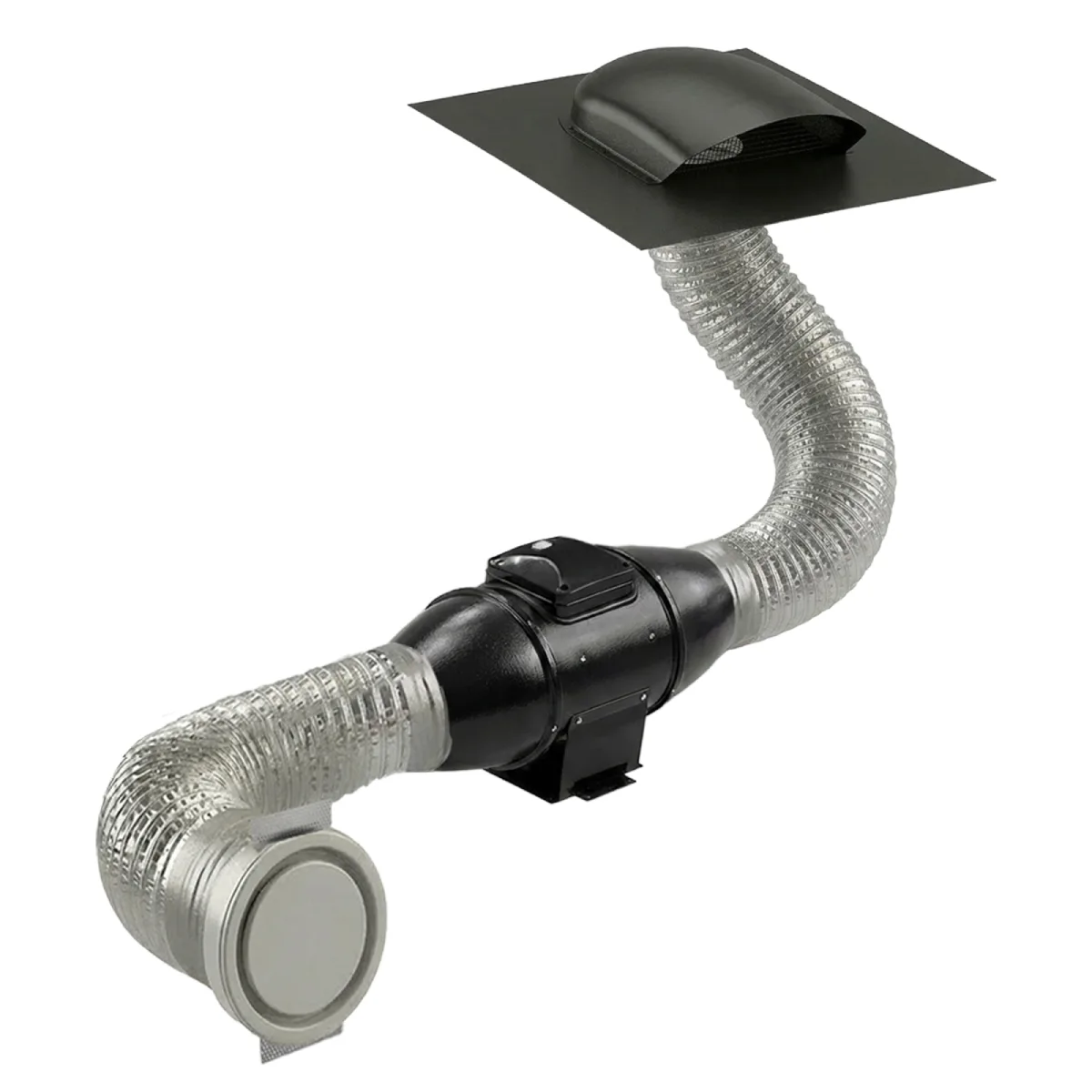

This inline fan by Fanco comes complete with everything you need for installation, which is usually placed in the roof space, a vent for the ceiling of the room, a low-profile roof vent and a flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.
Inline Fan includes:
- 1x TT Silent Premium 150 In Line Fan with Power Cord & Speed Switch (EXVUTTS150RV) Click to view fan Specs (Includes installed lead & plug)
- 1x Ergovent Rondo 150 – White Frameless Diffuser (EAEVRO150WH) Click to view vent Specs
- 1 x External Low Profile Roof Vent in ‘Night Sky’ 150mm (EVPPRV13BL) Click to view vent Specs
- 1 x Back draft shutter 150mm (EABDP150VU)
- 1 x 6m Flexible Duct 150mm (EDNU1506MF)
- 1 x Duct tape (EATAPED)
The flow of air is as follows:
Internal ceiling vent – inline fan – back draft shutter – roof vent.
Installation
The kit is designed for DIY installation, allowing the fan to be plugged into an existing power point in the roof space, typically connected to a switch within the room. This setup is commonly found in bathrooms, toilets, and similar areas, though an electrician can also install the power connection separately if needed.
How we calculate the required air volume
For effective ventilation, it’s recommended to achieve around 15 air changes per hour in spaces such as bathrooms, toilets, and laundries. To determine the required fan capacity, calculate the room’s volume (length × width × height, in metres) and multiply the result by 15. This will provide a suitable airflow rate for most situations. We recommend that clients with large glass areas, those who take longer, hotter showers, or simply prefer minimal steam and moisture, choose a fan with double or more the recommended capacity.
About the Roof Vent
To learn more about installation, refer to the comprehensive installation manual below or view the spec sheet for additional details.
