Inline Fan Features Overview:
| Installation | Typically in Ceiling Cavity |
|---|---|
| Extraction Rate | 520 m3/hr |
| Noise | 44 dB(A) |
| Motor Wattage | 60W |
| Ducting | 6m of 150mm flexible duct |

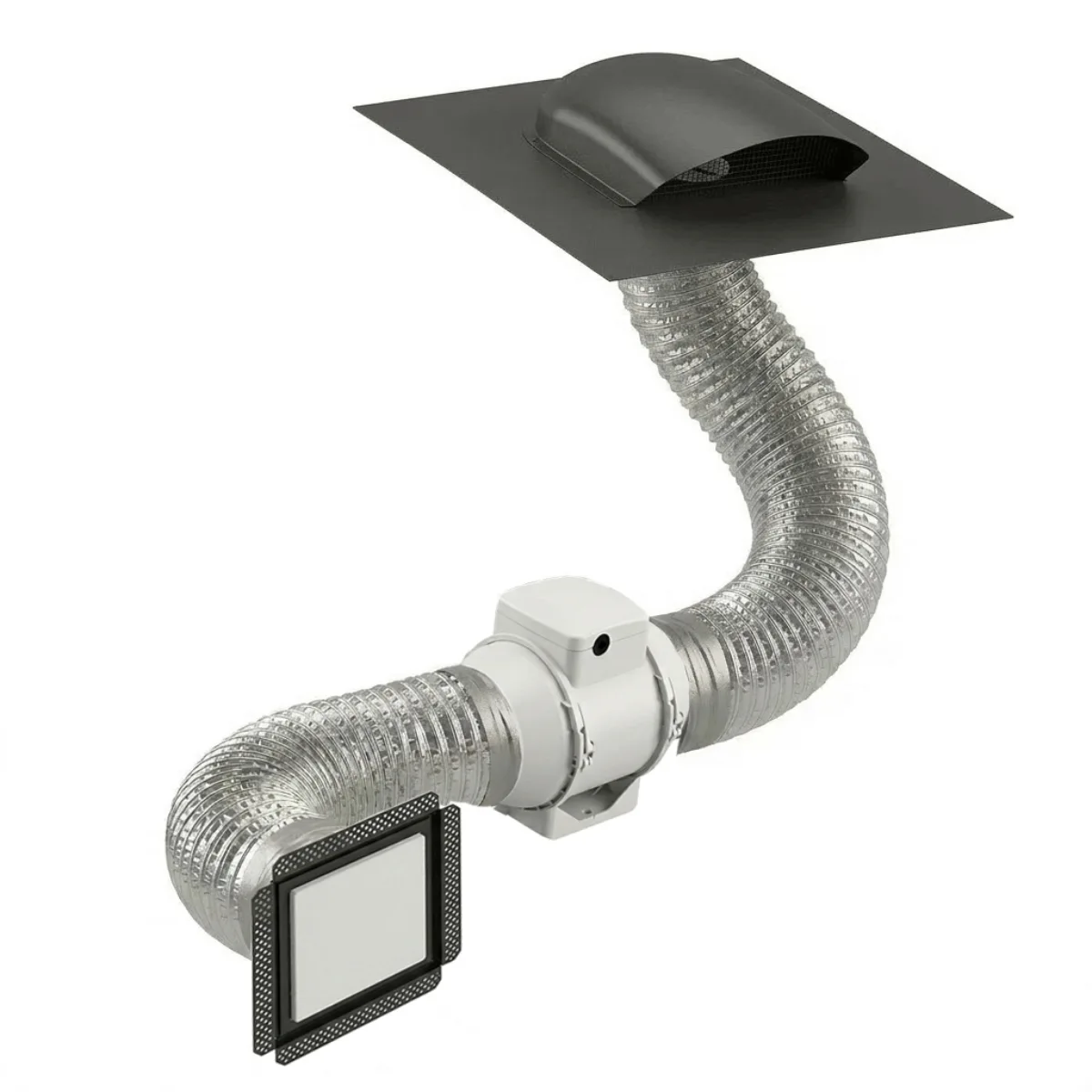

This inline fan by Fanco comes complete with everything you need for installation, which is usually placed in the roof space, a vent for the ceiling of the room, a low-profile roof vent and a flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.
Inline Fan includes:
- 1x TT Premium 150 In Line Fan with Power Cord & Speed Switch (EXVUTT150RV) Click to view fan Specs (Includes installed lead & plug)
- 1x Square 150 – White Frameless Diffuser (EVAVFG250) Click to view vent Specs
- 1 x External Low Profile Roof Vent in ‘Night Sky’ 150mm (EVPPRV13BL) Click to view vent Specs
- 1 x Back draft shutter 150mm (EABDP150VU)
- 1 x 6m Flexible Duct 150mm (EDNU1506MF)
- 1 x Duct tape (EATAPED)
The flow of air is as follows:
Internal ceiling vent – inline fan – back draft shutter – roof vent.
Installation
The kit is designed for DIY installation, with the fan able to be plugged into an existing power point in the roof space and controlled via a wall switch in the room. This type of setup is commonly found in bathrooms, toilets, and similar areas. Alternatively, an electrician can install a separate connection independent of the system installation.
How we calculate the required air volume
For effective ventilation, it is recommended to achieve 15 air changes per hour in spaces such as bathrooms, toilets, laundries, or similar areas. To calculate this, determine the room’s air volume (length × width × height in metres) and multiply the result by 15 to find the required fan capacity. This is suitable for most standard applications. However, for rooms with extensive glass, longer or hotter showers, or where minimal steam and moisture is preferred, we recommend selecting a fan with at least double the calculated capacity.

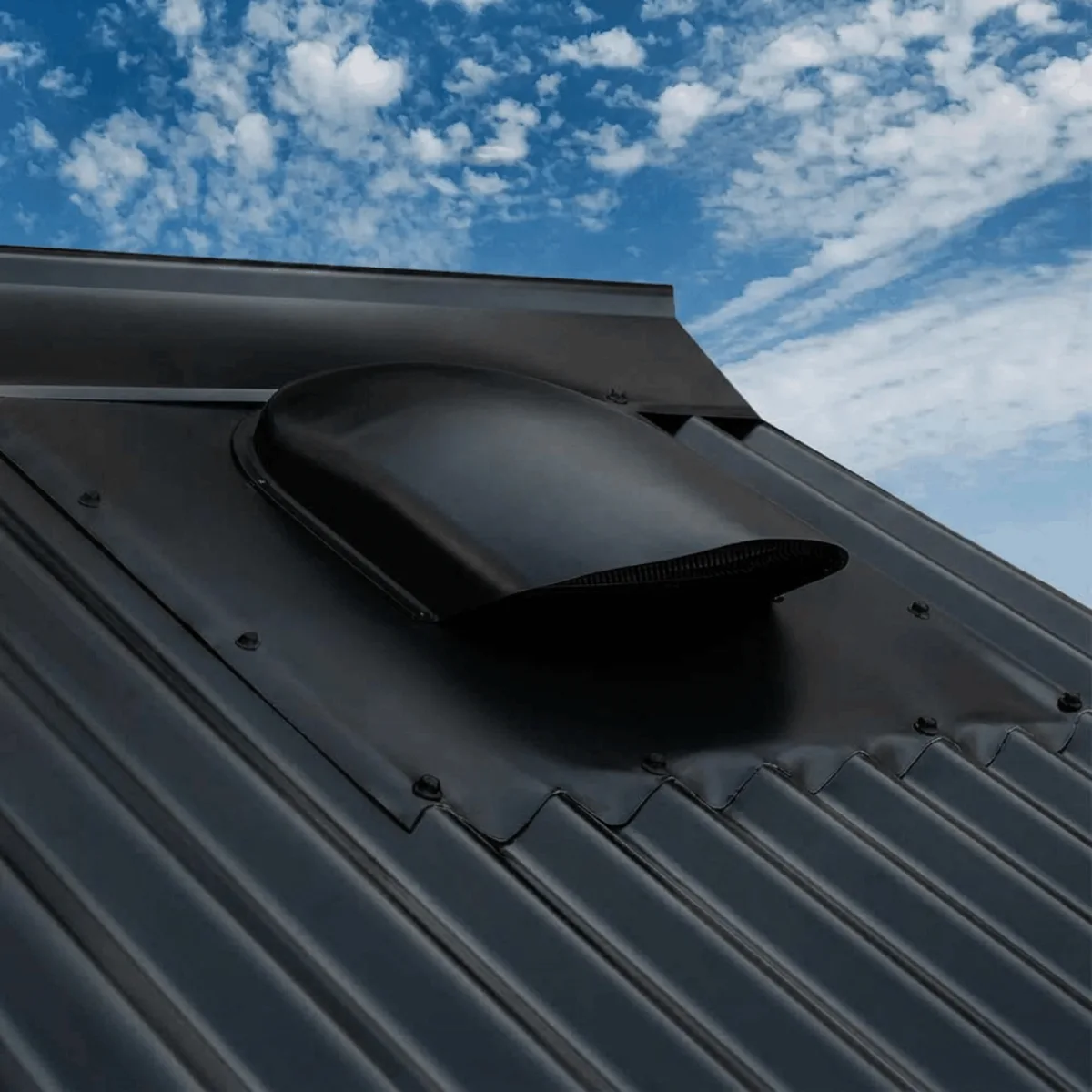

About the Roof Vent
To learn more about installation, refer to the comprehensive installation manual below or view the spec sheet for additional details.
