Sub Floor Kit 7 Features Overview:
| Installation | Under House |
|---|---|
| Extraction Rate | 1150 m3/hr |
| Noise | 49 dB(A) |
| Ductable | 18m of flexible duct |

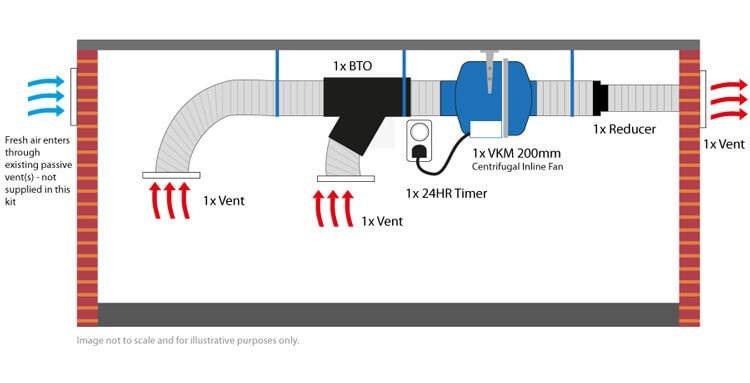

View the image gallery for a typical installation diagram.
Sub Floor Kit Includes
-
- 1x VKM 200mm Inline fan
- Fan comes with lead and plug. If purchasing additional speed controller, the fan will need to be disconnected from the lead & plug and hard wired
- 1x 6m of 200mm duct
- 2x 6m of 150mm duct
- 2x Metal Cone Vents
- 1x BTO 200X150X150
- 1x 200-150 Reducer
- 1x External Wall Vent
- 1x 24hour Timer (The timer is plugged into a standard power point)
- 1x Flex & Plug (The fan is then plugged into the timer)
- 1x Roll on hanging tape (allows ducting to hang from joists)
1x Roll of duct tape (allows secure connection of the system)
Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the subfloor. This, in turn, can cause structural and health problems for the home and its occupants.
The most common reason for inadequate underfloor ventilation is that there are not enough vents or they are too small for the size and layout of a building. Building extensions, building location and soil type can all contribute to problems in the subfloor.
