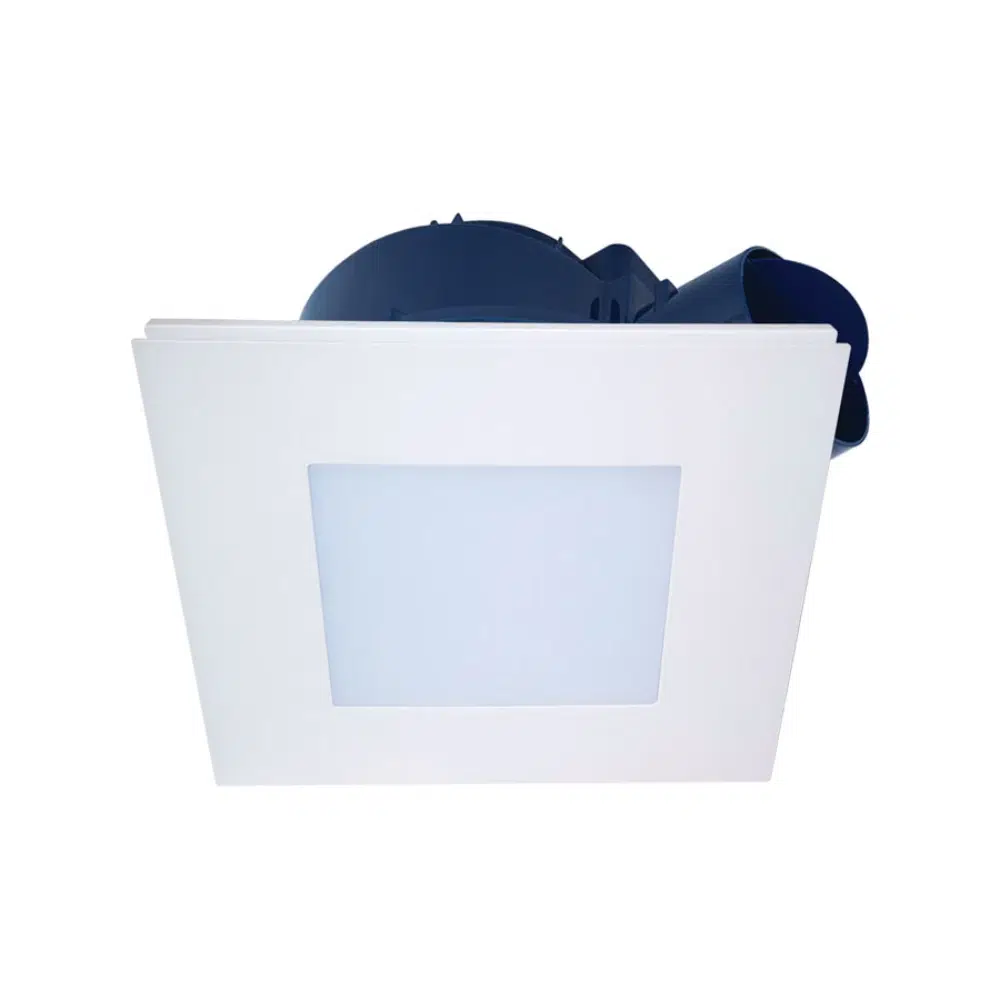

Ventair Airbus EC 500 Square Ceiling Exhaust Fan with Wall Control and CCT LED - White

Ventair Airbus EC 500 Square Ceiling Exhaust Fan with Wall Control and CCT LED - White - Image 2

Ventair Airbus EC 500 Square Ceiling Exhaust Fan with Wall Control and CCT LED – White

Name: Ventair Airbus EC 500 Square Ceiling Exhaust Fan with Wall Control and CCT LED - White
Brand: Ventair
SKU: ECVAAE15SQLWH
Availability: InStock

$349.00

Elevate your bathroom with the Ventair Airbus EC 500 in white. Enjoy continuous 24/7 ventilation and brilliant illumination with a 14W LED panel light offering warm, natural, or cool white options. It operates silently, effectively eliminating stale and moist air while naturally replenishing it with fresh air. This model features a three-speed, energy-efficient EC motor for low operating costs. Ideal for ensuites, bathrooms, and large open bathrooms, it includes a wireless wall controller for easy operation.

SKU: ECVAAE15SQLWH

Product Details

Airbus EC 500 Features Overview:

Installation	Ceiling ONLY
Hole Size	300mm
Required Install Depth	Requires 200mm of cavity space
Extraction Rate	510 m3/hr (max)
Noise	44 dB(A)
Motor Wattage	80w (max)
Ductable	Yes – 150mm diameter

The Ventair Airbus Exhaust Fan is a premium high powered side ducted exhaust fan engineered to maintain high airflow over longer duct runs.

Higher airflow
Integrated CCT LED light
Designed for longer duct runs
Premium ball bearing motor
Super low profile
Easy to install and clean
Back-draft shutter included
Plug and Lead Installation

Mode	Motor (W)	Noise db(A)	Airflow (m3/hr)
Boost	80	44	510
Run	35	40	380
24/7	3	21	70

Boost – 10 minutes rapid exhaust, then back to 24/7
Run – 20 minutes all round performance, then back to 24/7
24/7 – Continuous extraction for a healthier living environment

Key Specs

Installation Location
Brand	Ventair
Manufacturers Part Number	PVPXEC500SQ-LED
Colour	White
Hole Size	300mm
Installation	Includes Lead & Plug
Warranty	The Manufacturer offers a 5 year warranty on the motor (conditions apply)
Barcode Number	9339310014553

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
