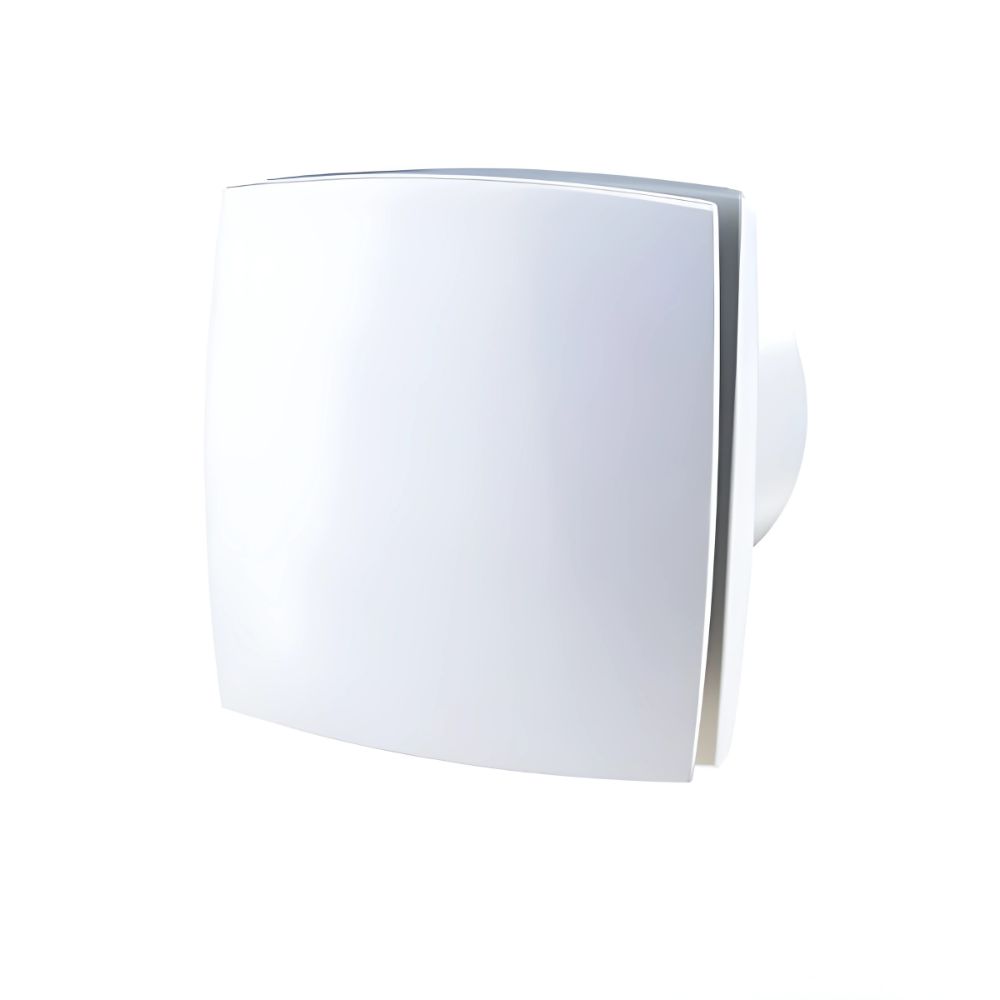

Chico Exhaust Fan 125mm White with Timer

Rated 4.33 out of 5 based on 3 customer ratings
(3 customer reviews)

$155.00

The Chico Exhaust Fan is a low-profile, stylish product that will complement a modern interior. This package comes with an adjustable timer that can be set from 30 seconds up to 120 minutes, and it will operate for the set period once switched off, clearing steam and odour left in a room. The Chico Exhaust Fan will need to be hardwired by a qualified electrician. It is available in three sizes and two colours (white and brushed aluminium).

DISCLAIMER: The fan includes a thin, transparent draft shutter (as pictured), which is designed to prevent a backdraft of air entering the ventilated room. Please note – this does not provide an airtight seal and is not designed to do so.

- +
SKU: W-EMVULD2WH-TF7
Feefo Trusted Service Award

🇦🇺 Quality fans for Aussie homes since 2008

Product Details

Chico Features Overview:

Installation Wall / Ceiling
Hole Size 125mm
Extraction Rate 166 m3/hr
Noise 34 dB(A)
Motor Wattage 16W
Ductable Yes – 125mm Diameter

The Chico exhaust fan range features a modern design with a capable exhaust fan. It is a ductable ceiling or wall-mounted exhaust with a capacity of 166m3/hr.

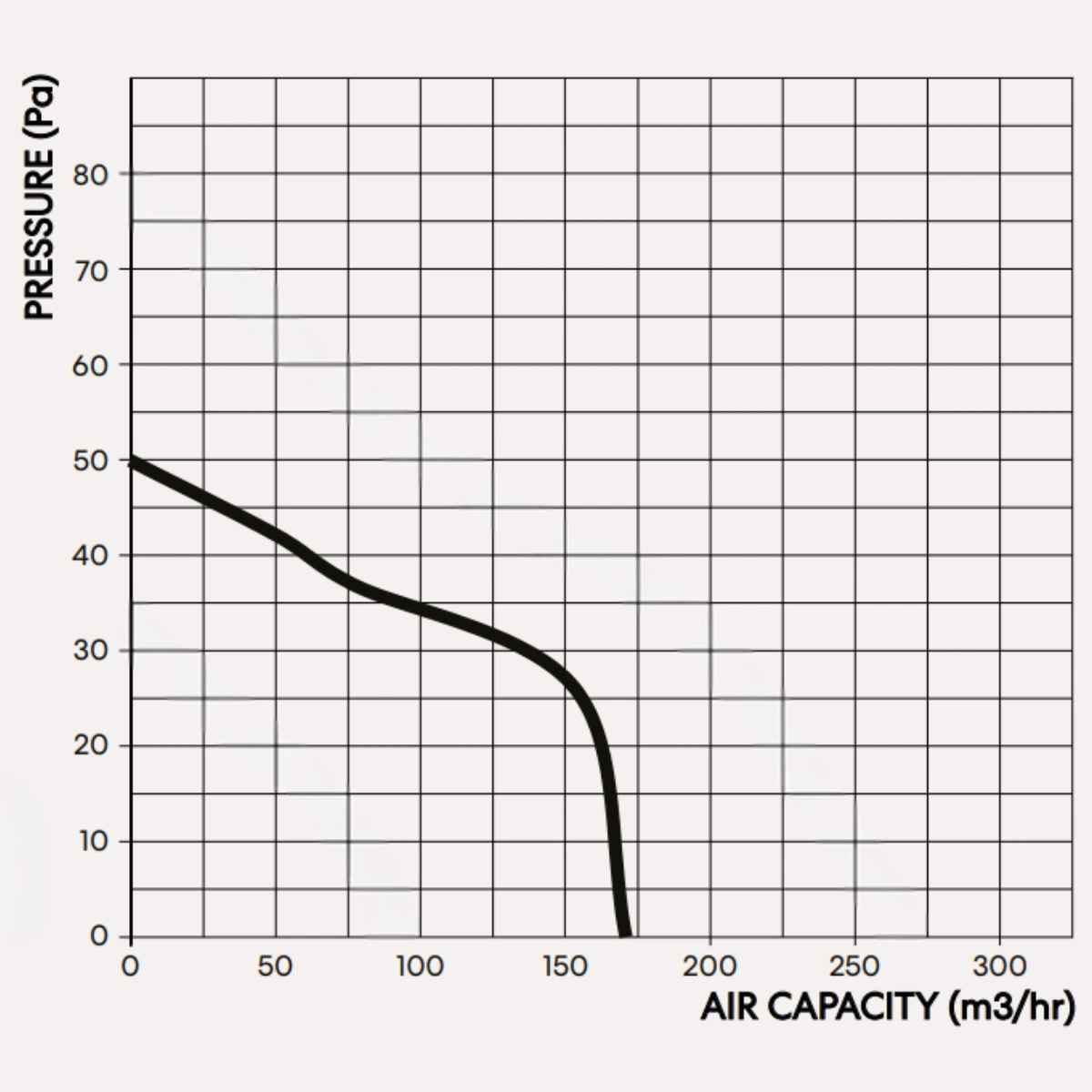

It can be connected to ducting and has a small built-in backdraft shutter. The Chico range has an axial motor; any ducting is recommended to be as short and direct as possible. Ideally, you would only use 1-2m of flexible ducting with these fans. For more information, please refer to the pressure curve.

This fan comes ready to be hard-wired to a switch. A lead and plug may be added by the installer for connection to a power socket.

Refer to these links to download the installation manual and spec sheet for more technical details.

CLICK TO DOWNLOAD CHICO SPEC SHEET
CLICK TO DOWNLOAD CHICO INSTALLATION MANUAL

Key Specs

Brand

Fanco
Colour

White
Hole Size

125mm
Installation

Requires Hardwiring (electrician required)
Warranty

Fanco: The Manufacturer offers a 2 year replacement warranty (conditions apply)
Motor Type

Axial
Manufacturers Part Number

EMVULD2WH + 207933
Barcode Number 787099216573 + 9008606383733

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.

Reviews (3)

3 reviews for Chico Exhaust Fan 125mm White with Timer

  1. Rated 4 out of 5

    ANH –

    good but need more detailed instruction such as wiring timer

  2. Rated 5 out of 5

    John –

  3. Rated 4 out of 5

    Jeremy Ballenger –
