Claro Designer Key Features
| Installation Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 18 degrees |
| Motor Type | DC |

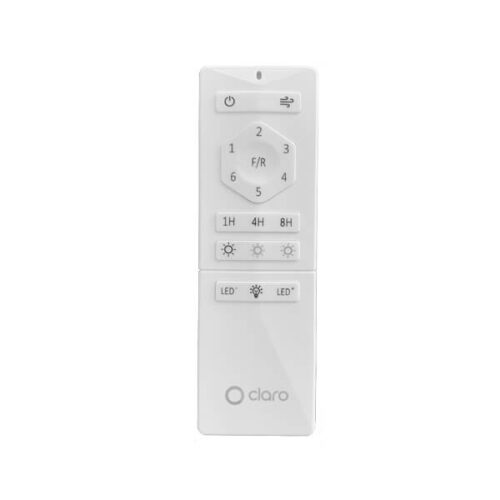

| Control Type | Remote Control |
| Summer / Winter Use? | Reversible from Remote |
| Ceiling to Blade Drop | 300mm (440mm to base of light) |
| Angled Ceilings? | Suitable up to 15 degrees |
| Light Included? | Included |
*Note – 2 rods are included in the box – (125mm and 250mm long). All measurements are based on using the 125mm rod. The 250mm rod is perfect for higher-than-average ceilings.

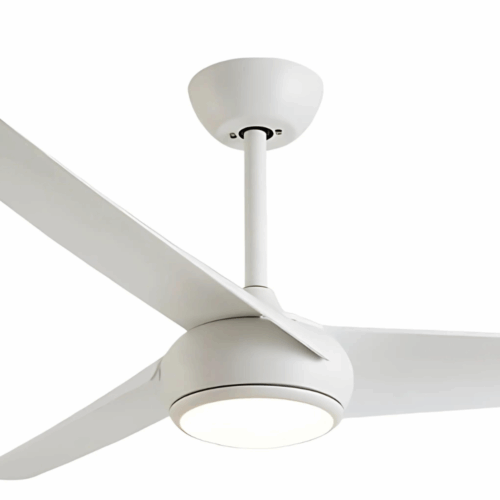

Claro Designer Performance Data if used with 3 blades
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 67 | 3.4 | 1,973 m3/hr |
| 2 | 83 | 4.5 | 3,452 m3/hr |
| 3 | 103 | 6.7 | 5,425 m3/hr |
| 4 | 123 | 9.6 | 6,905 m3/hr |
| 5 | 143 | 14.3 | 8,385 m3/hr |
| 6 | 164 | 19.8 | 10,257 m3/hr |

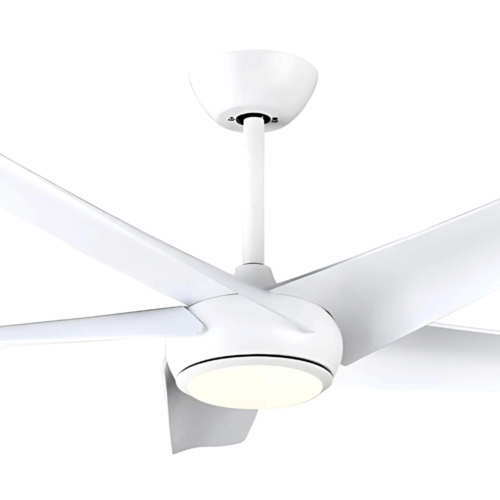

Claro Designer Performance Data if used with 5 blades
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 3.1 | 2,961 m3/hr |
| 2 | 85 | 5.8 | 4,592 m3/hr |
| 3 | 106 | 9.7 | 7,892 m3/hr |
| 4 | 124 | 14.4 | 9,372 m3/hr |
| 5 | 143 | 22.4 | 10,359 m3/hr |
| 6 | 162 | 33.7 | 12,331 m3/hr |
The Claro Designer offers an excellent range of speeds, with the high speed offering exceptional airflow for a 52 inch fan. Energy consumption is low thanks to the economical DC motor.
Understanding the Claro Designer Light
| Light Type | CCT LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 1400lm , 1500lm , 1450lm |
| Light Temperature | 3000k, 4500k or 6500k |
| Dimmable | Yes |
CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.
User replaceable LED light module, available to purchase if required or if you just want to have a spare!
