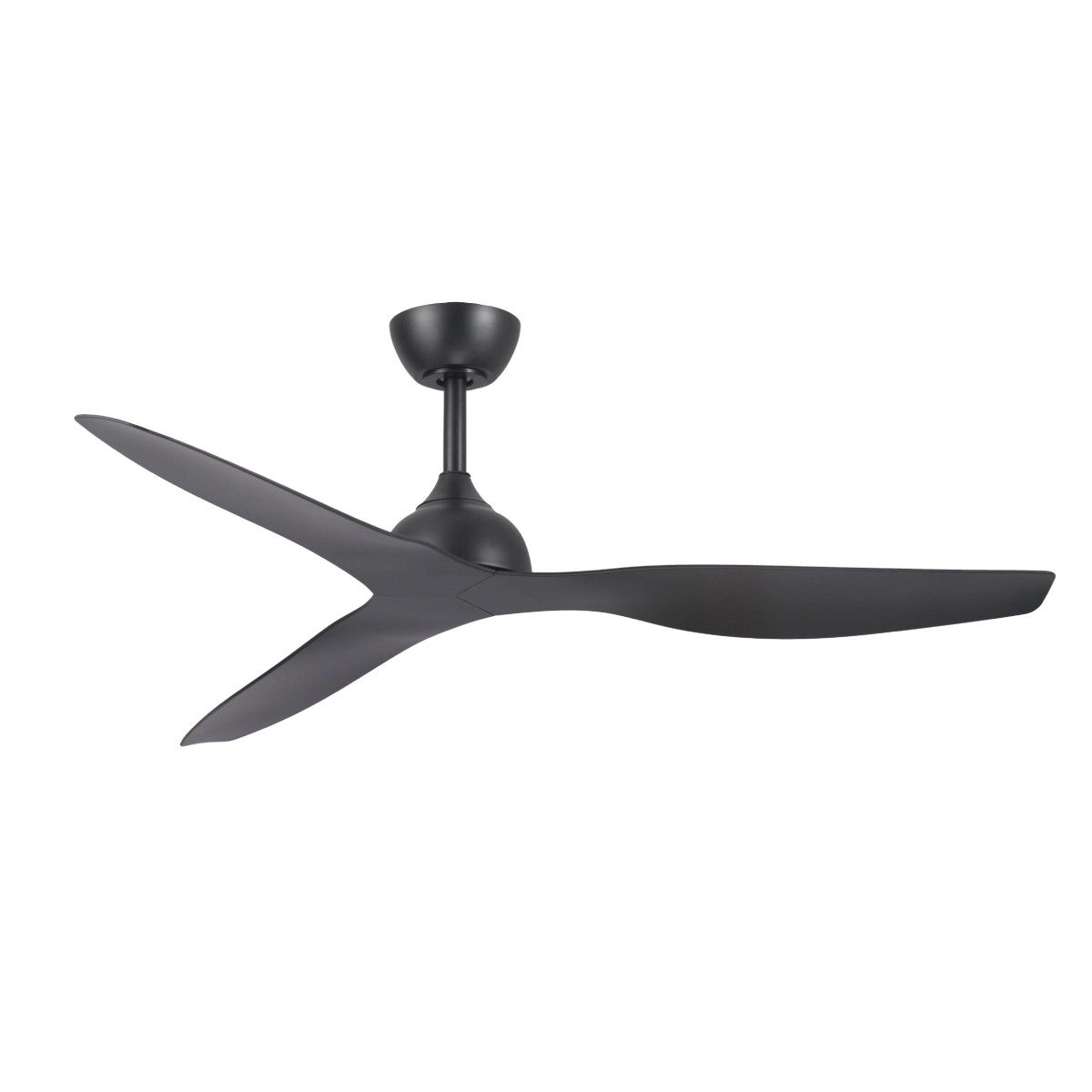

Fanco Eco Style Key Features
| Install Location | Indoor & Outdoor Undercover |
|---|---|
| Blade Material | ABS Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 15 Degrees |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer / Winter Use? | Reversible from remote |

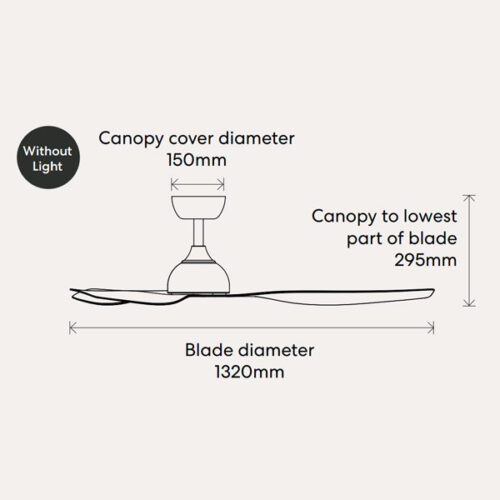

| Ceiling to Blade Drop | 295mm |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |

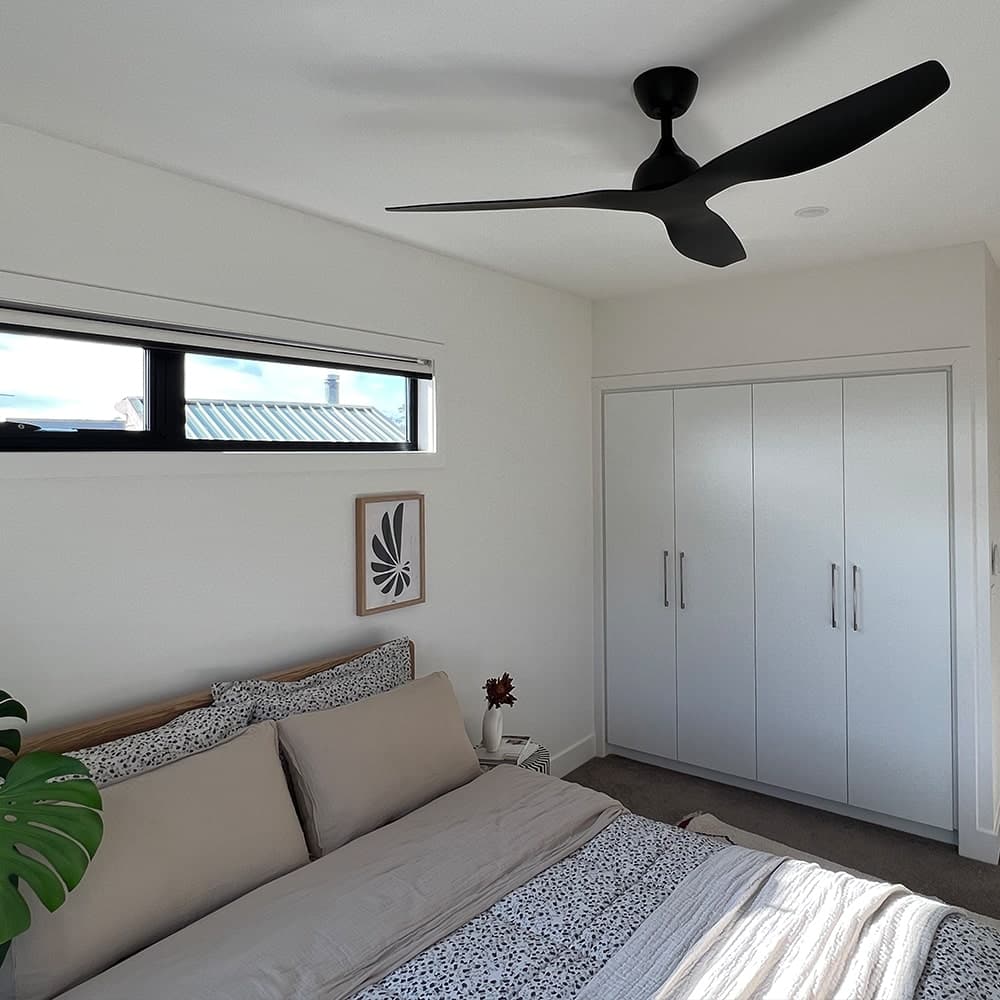

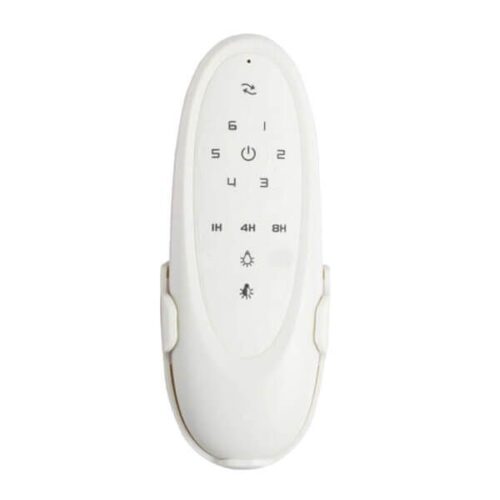

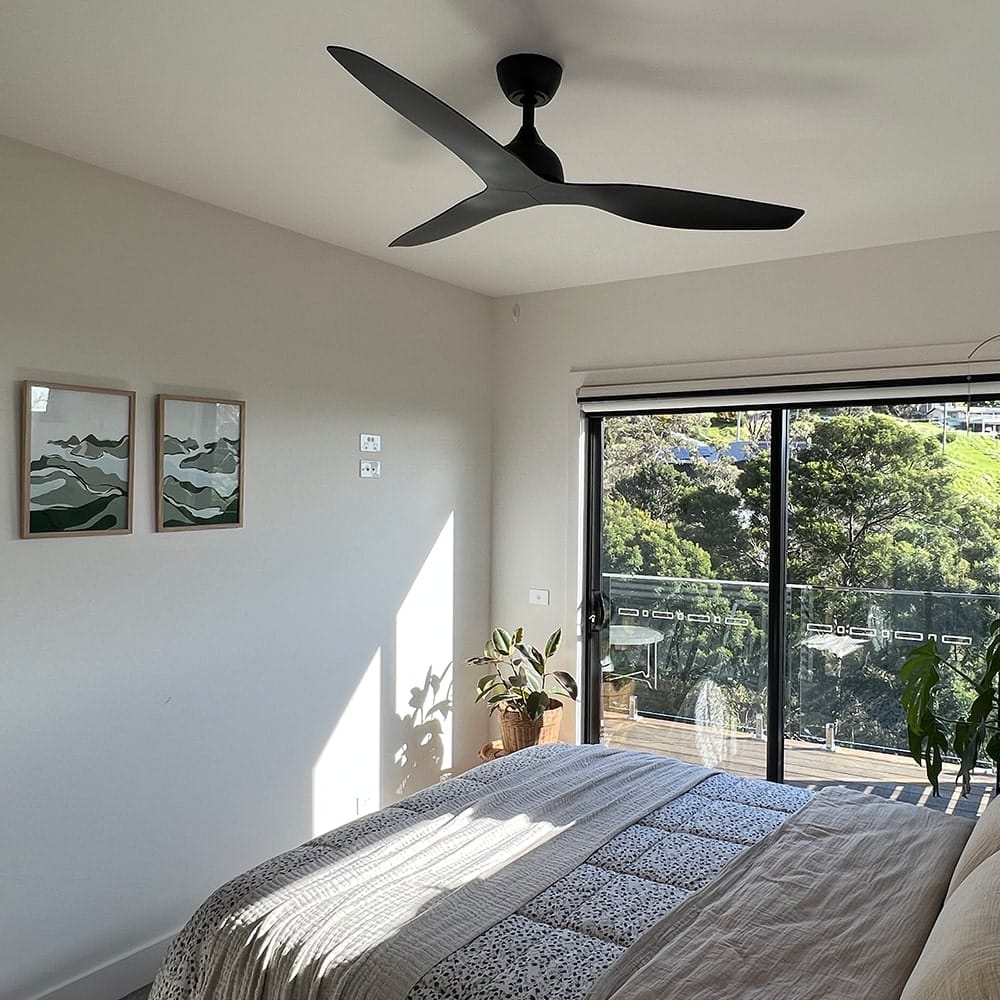

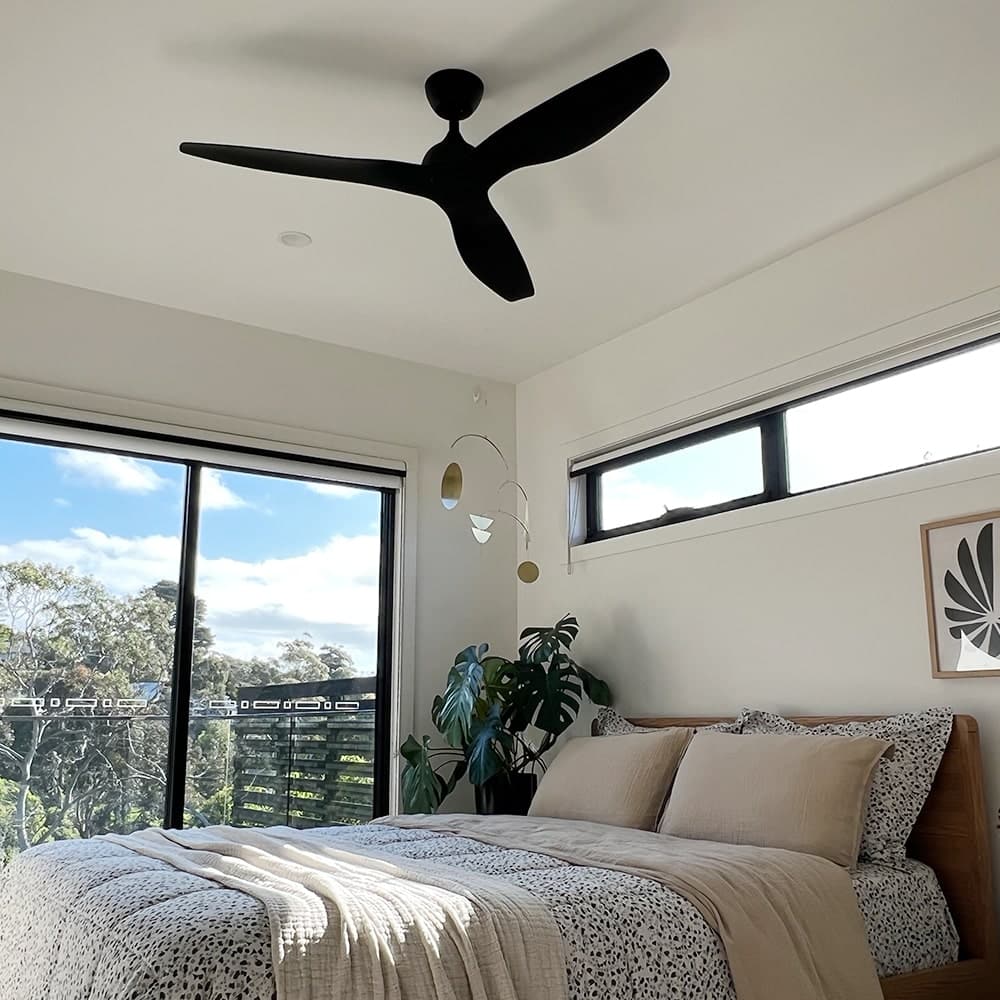

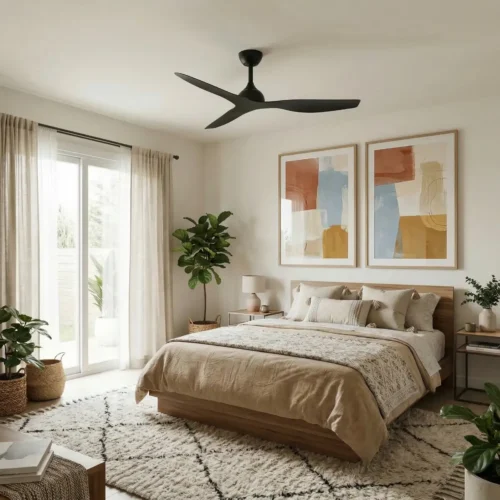

It is suitable for small to medium-sized rooms and well-suited for bedroom installation. It is supplied with a remote control and includes a timer (1 hour, 4 hours, or 8 hours), fan speed, and reverse functionality. Backed by a manufacturer’s warranty, it offers excellent value for everyday comfort and convenience.
Fanco Eco Style Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 75 | 3.8 | 5,010 m3/hr |
| 2 | 125 | 9.5 | 7,860 m3/hr |
| 3 | 140 | 14 | 8,250 m3/hr |
| 4 | 160 | 18.5 | 8,950 m3/hr |
| 5 | 170 | 24 | 9,378 m3/hr |
| 6 | 190 | 33 | 9,641 m3/hr |
High-speed output only consumes 33W of power, which is an efficient operation.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet and installation manual here.
CLICK TO DOWNLOAD FANCO ECO STYLE SPEC SHEET
CLICK TO DOWNLOAD FANCO ECO STYLE INSTALLATION MANUAL

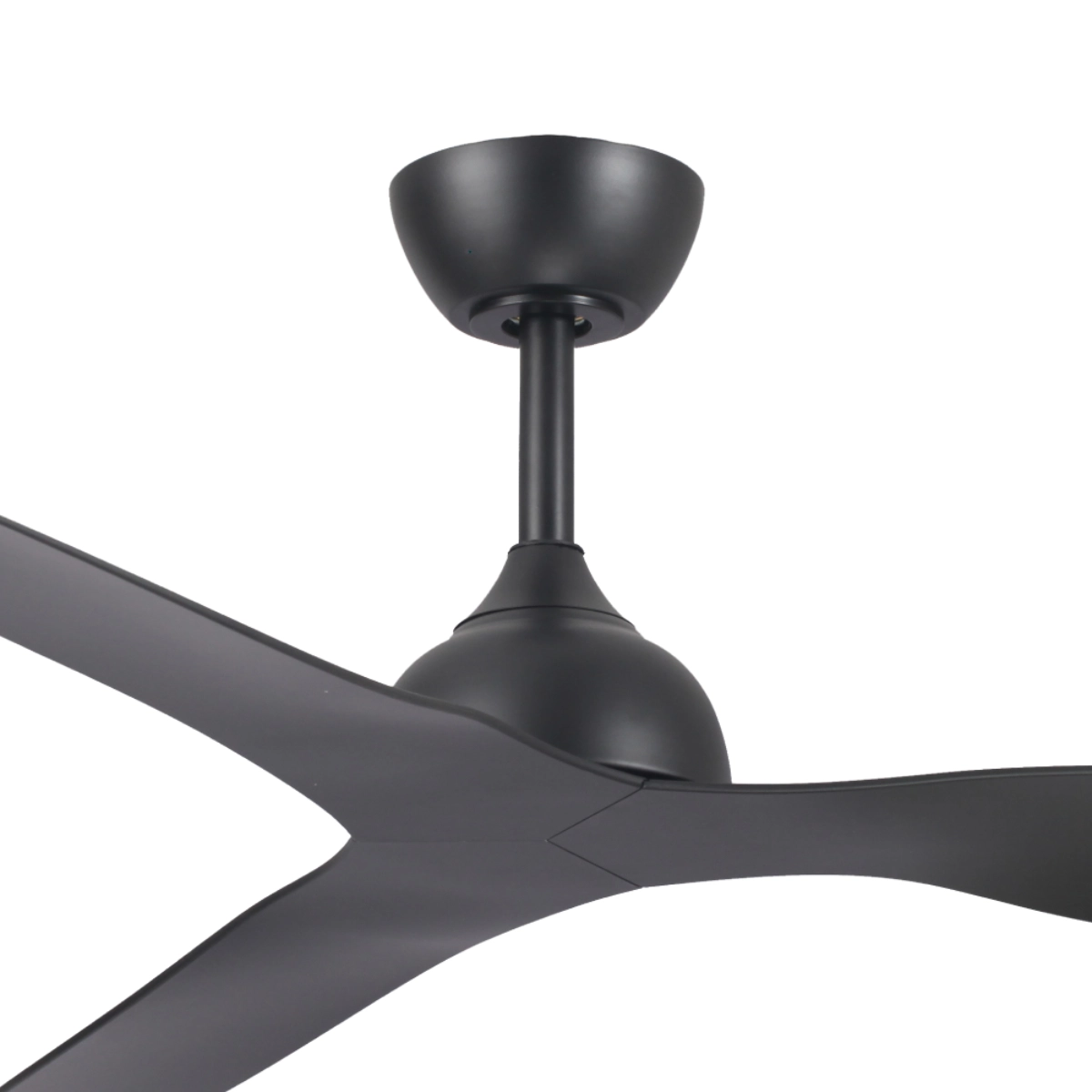

Please Note: This fan includes two extension rods, one is 125mm long and the other is 250mm long. The ceiling to blade drop of 295mm is achieved by using the smaller, 125mm rod.
