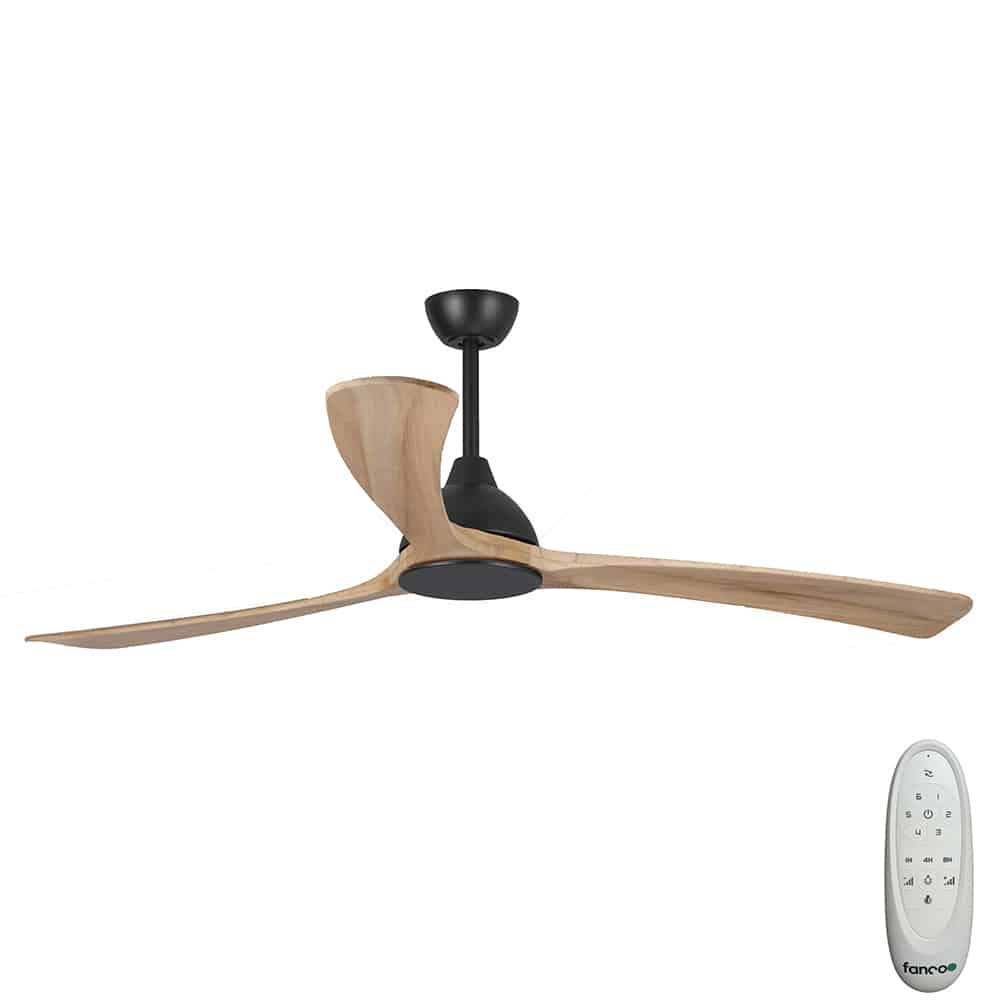

Fanco Sanctuary Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Solid Timber |
| Overall Diameter | 178cm (70″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 307mm (321mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |
Designed for long-lasting performance, featuring sealed solid timber blades and rust-resistant metal components. The included 6-speed remote offers convenient 1H, 4H, or 8H timer settings.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 57 | 4 | 4,972 m3/hr |
| 2 | 79 | 7.3 | 6,230 m3/hr |
| 3 | 93 | 10.7 | 7,727 m3/hr |
| 4 | 112 | 17.5 | 9,100 m3/hr |
| 5 | 130 | 27.4 | 10,318 m3/hr |
| 6 | 148 | 39.7 | 11,371 m3/hr |
Enjoy year-round comfort with reversible airflow controlled via the included remote. The energy-efficient DC motor uses only 39.7W on maximum speed, helping keep running costs low.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet, installation manual and smart ceiling fan set-up guide here.
CLICK TO DOWNLOAD FANCO SANCTUARY SPEC SHEET
CLICK TO DOWNLOAD FANCO SANCTUARY INSTALLATION MANUAL
Please note: Solid timber blades are a natural material and may result in minor variations in performance specifications.
