Fanco Sanctuary Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Solid Timber |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 277mm (300mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Not Included |

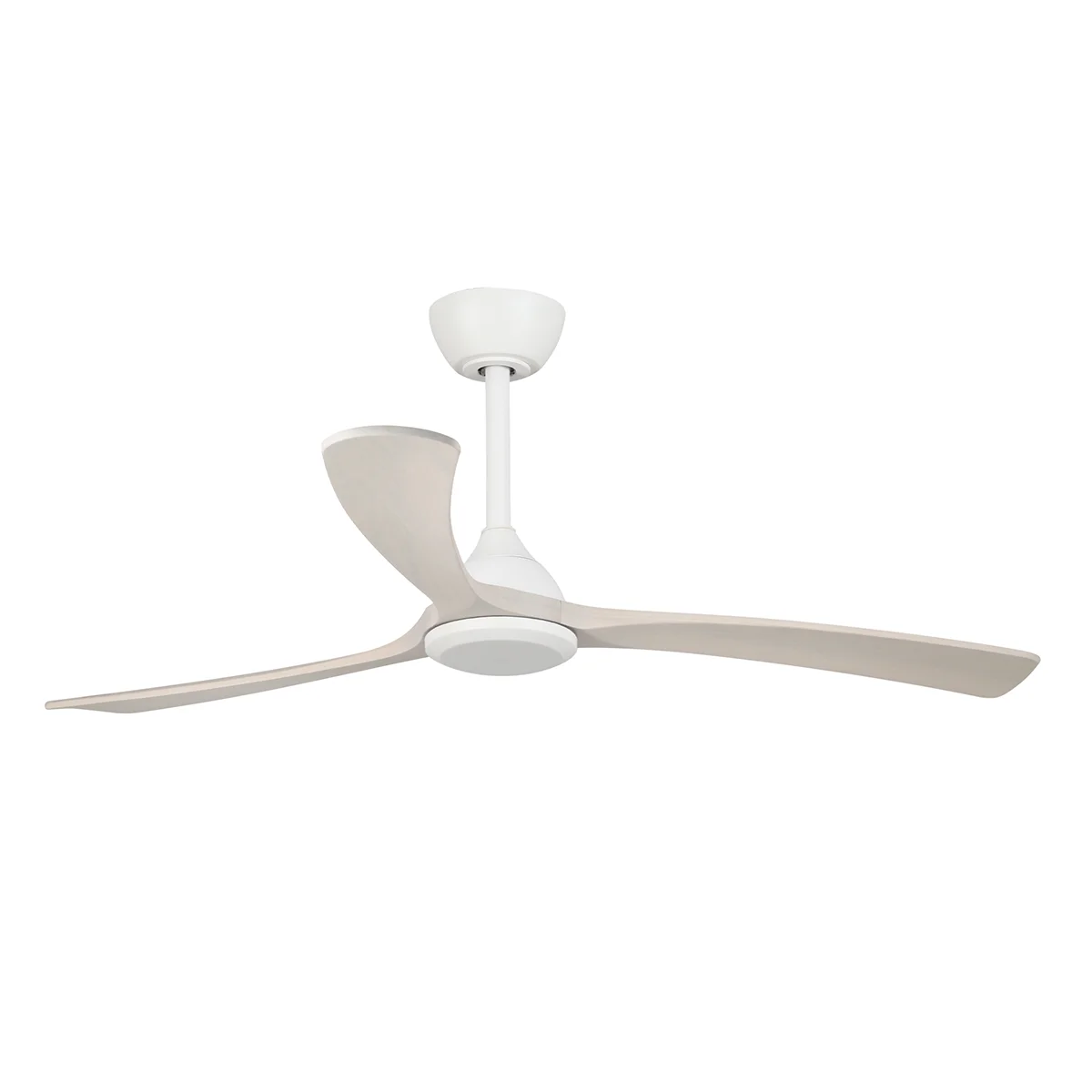

Featuring solid timber blades sealed for water resistance and anti-corrosive metal components, this fan is designed to withstand outdoor and coastal environments. Includes a 6-speed remote control with a built-in timer function offering 1H, 4H, and 8H settings.

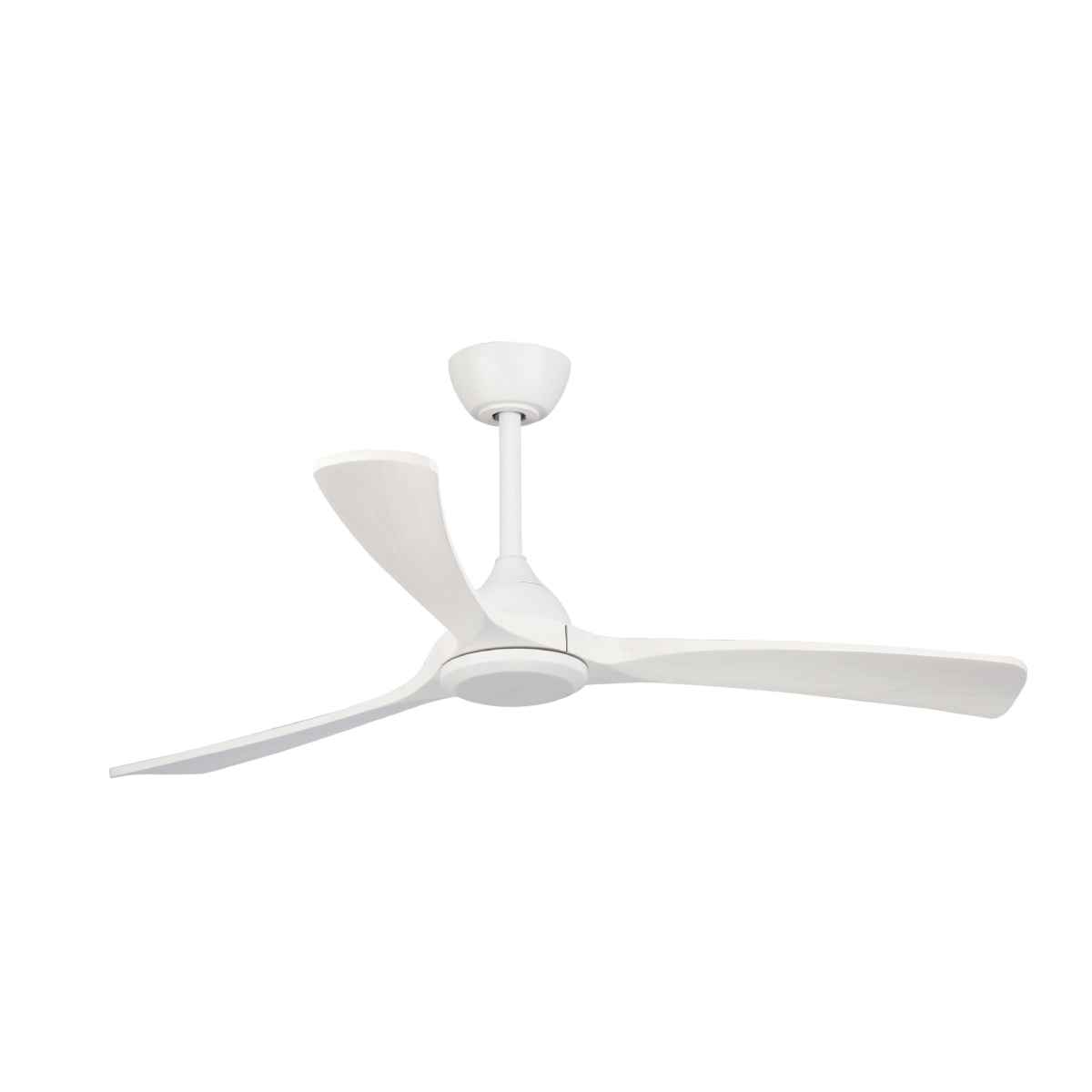

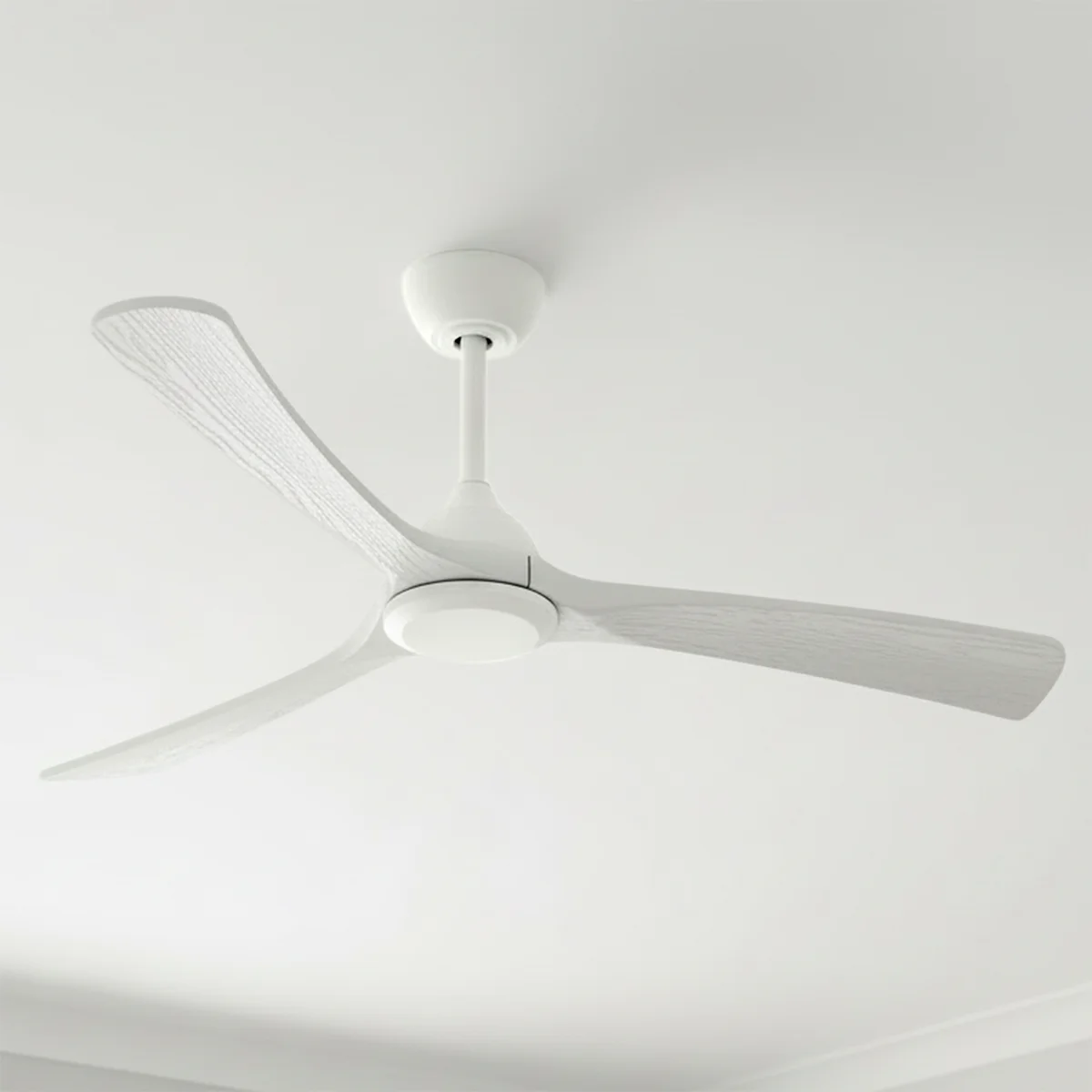

Please note: This fan features white timber blades – which are a ‘whitewash’ style – meaning it’s a soft white colour with the woodgrain still visible, unlike a completely opaque painted coating.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 61 | 1.7 | 3,556 m3/hr |
| 2 | 86 | 3.3 | 4,499 m3/hr |
| 3 | 112 | 6.2 | 5,939 m3/hr |
| 4 | 137 | 11.2 | 6,809 m3/hr |
| 5 | 162 | 19.3 | 7,878 m3/hr |
| 6 | 182 | 29.2 | 9,037 m3/hr |

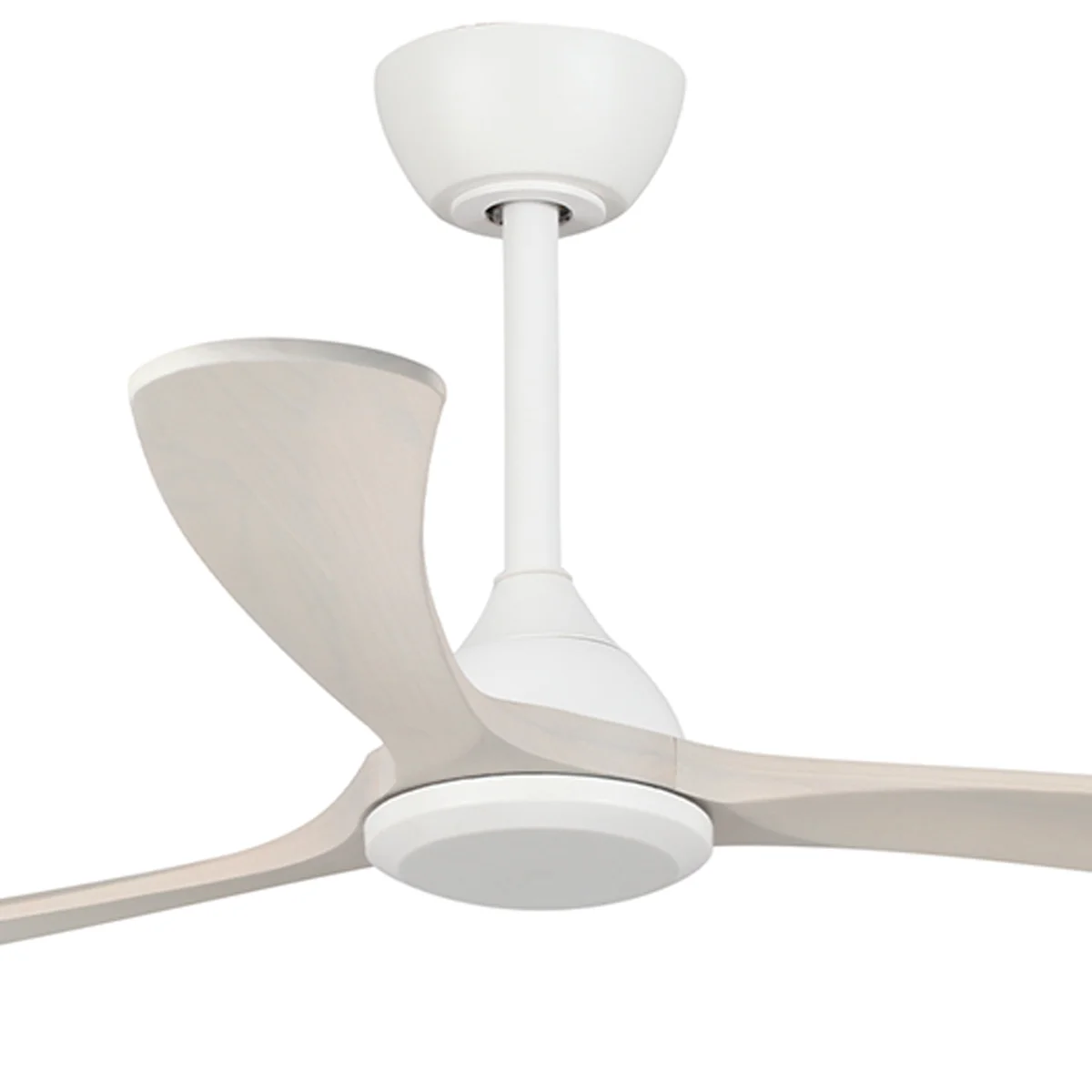

Offering year-round versatility, the fan’s reversible function can be easily adjusted using the included remote control. The efficient DC motor ensures low energy consumption, using only 29.2W at maximum speed while delivering reliable airflow performance of 9,037 m³/hr.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet and installation manual for the ceiling fan setup here.
CLICK TO DOWNLOAD FANCO SANCTUARY SPEC SHEET
CLICK TO DOWNLOAD FANCO SANCTUARY INSTALLATION MANUAL
Please note: Solid timber blades are made from natural materials and may vary slightly in performance specifications. It includes both a 127mm and a 254mm extension rod, allowing you to choose the most suitable drop for your ceiling height and room layout. A qualified person must complete installation. When installed outdoors, the fan must be positioned at least 1.5m from roof edges or eaves, with a minimum 70cm clearance between the blade tips and surrounding walls, roof edges, or ceiling beams.
