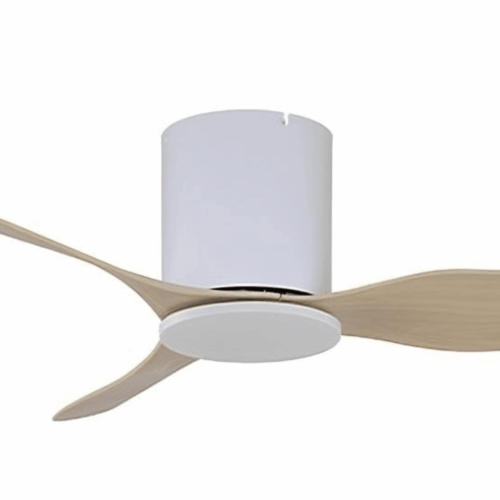

Fanco Studio Tri Control Key Features
| Installation Location | Indoor |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 122cm (48″) |
| Blade Pitch | 25 Degrees |
| Motor Type | DC |
| Control Type | Remote Control|Smart Control|Wall Control |
| Summer / Winter use? | Reversible from wall, remote & smart app |
| Ceiling to Blade Drop | 210mm (240mm to base of motor) |
| Angled Ceilings? | Suitable for flat ceilings ONLY |
| Light Included? | Not Included |
Short ceiling to blade drop is great for ceilings between 2.3 and 2.4 metres high. Remote includes timer off functionality – select from 1-9 hours before fan automatically turns off.
The installation manual for the wall control can be accessed via this link: Wall Control Installation Guide.
The manual for the smart control can be accessed via this link: Fanco Smart Manual.
Fanco Studio Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 5 | 3377 m3/hr |
| 2 | 88 | 6.8 | 4353 m3/hr |
| 3 | 116 | 10.1 | 5700 m3/hr |
| 4 | 145 | 15.4 | 6858 m3/hr |
| 5 | 174 | 21.3 | 8693 m3/hr |
| 6 | 200 | 30.1 | 10171 m3/hr |
This fan is suitable for bedrooms, studies and other low-traffic areas. 6 Speed options for a gentle breeze or energy-efficient power.
