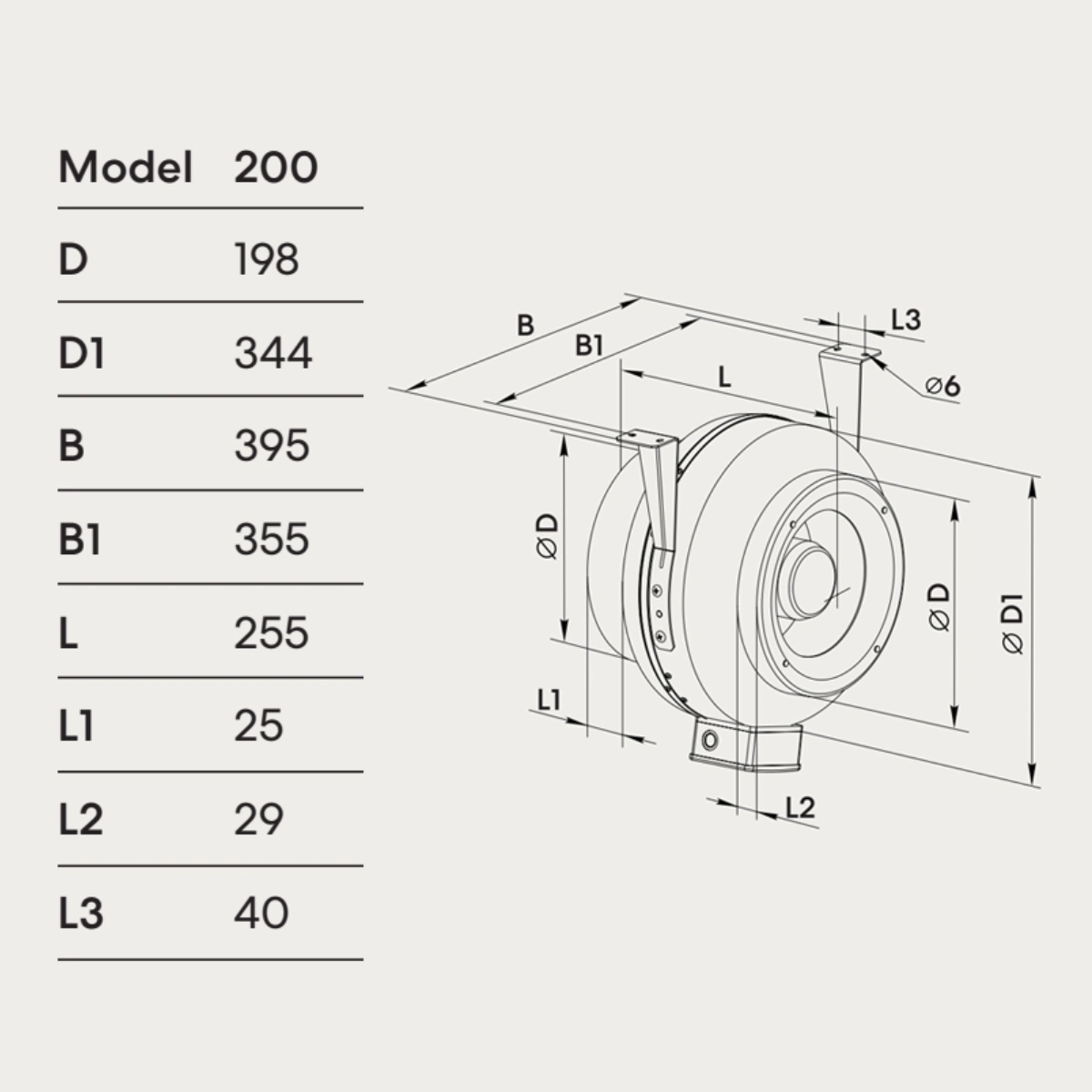

fanco-vkm-200-centrifugal-inline-dimensions

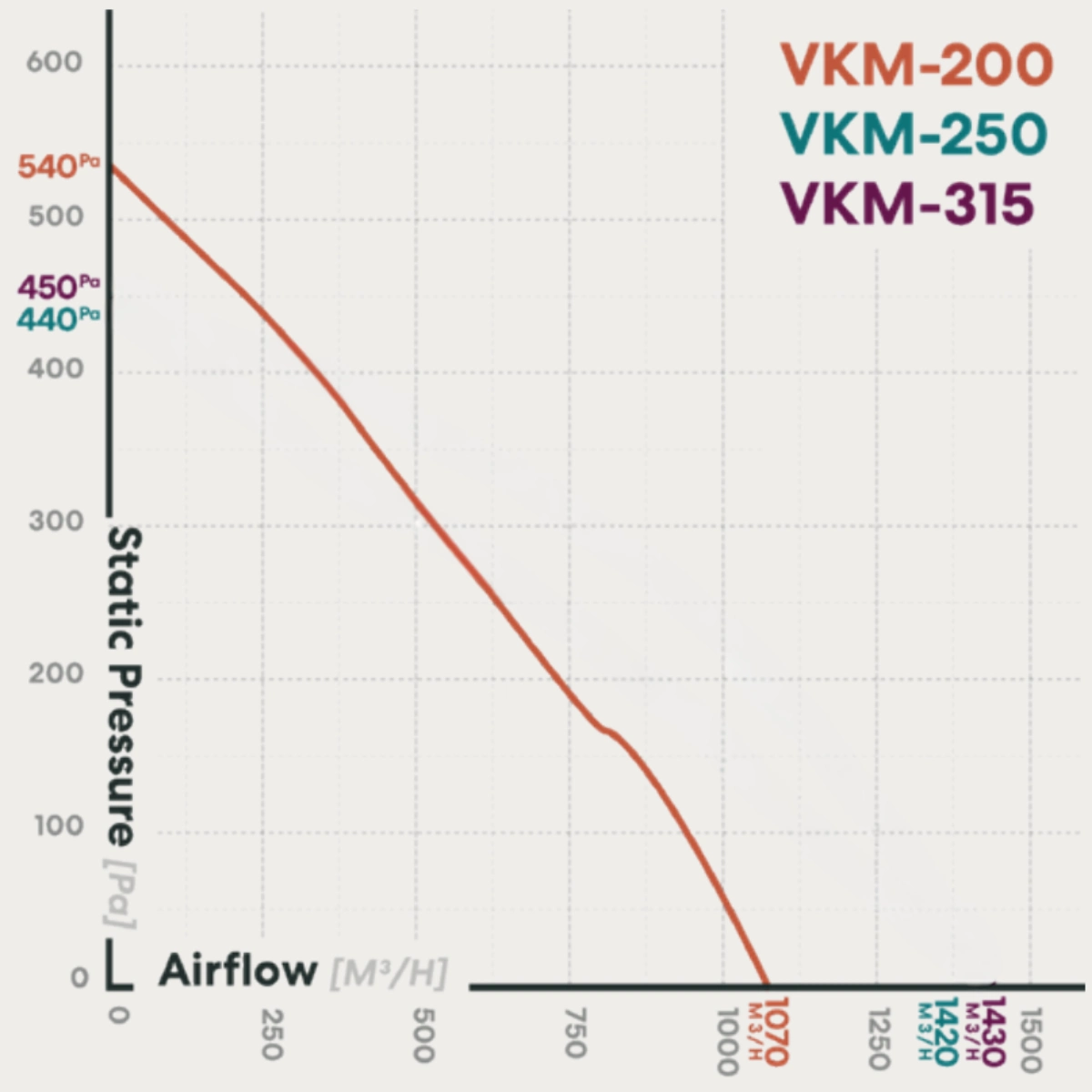

fanco-vkm-200-centrifugal-inline-pressure-curve
fanco-centrifugal-vkm-inline-fan-200mm
fanco-vkm-200-centrifugal-inline-dimensions
fanco-vkm-200-centrifugal-inline-pressure-curve

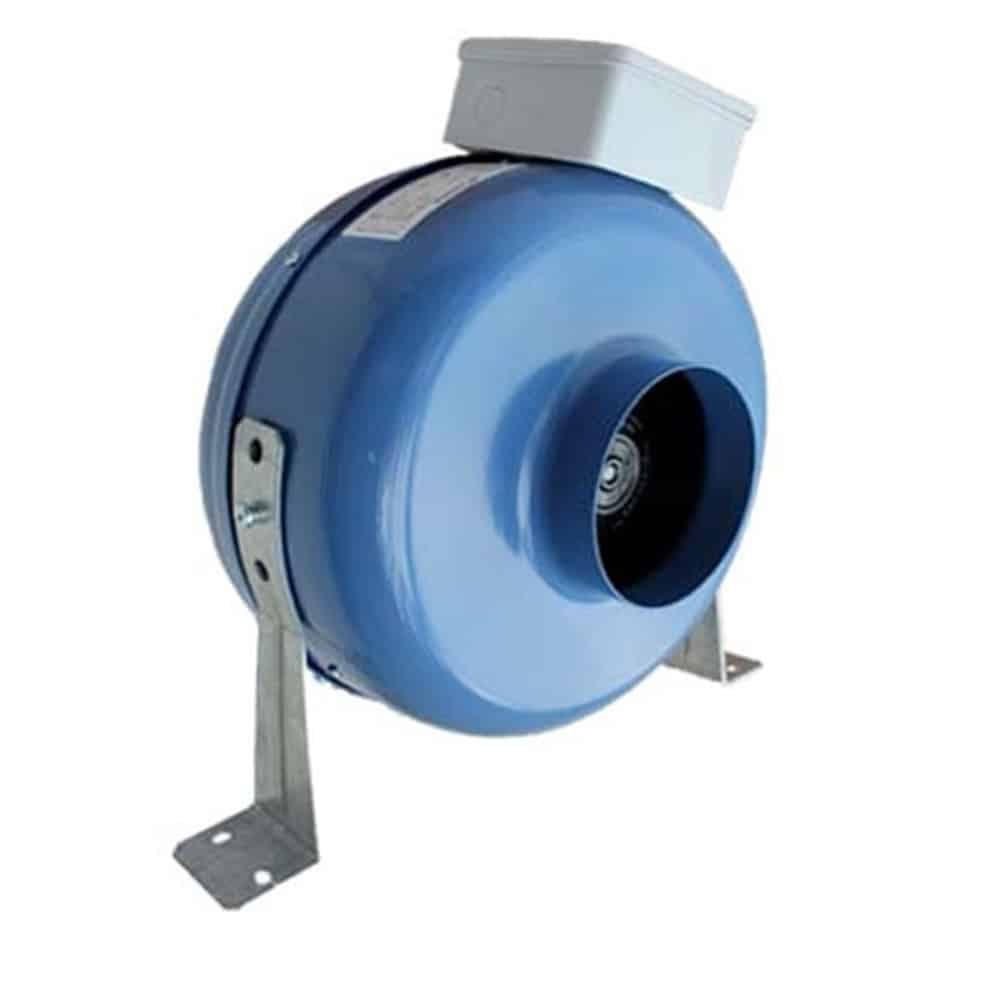

Fanco VKM 200mm Centrifugal Inline Fan

Rated 4.50 out of 5 based on 2 customer ratings
(2 customer reviews)

$429.00
RRP $449.00
RRP is provided by the manufacturer.
$20.00 OFF

The Fanco VKM 200 is a quality centrifugal inline fan that may be used for exhaust, air transfer and other applications. It is a centrifugal design which means the fan moves good air volumes against high pressure. View technical details below.

- +
SKU: EXVUV200

Product Details

VKM Features Overview:

Capacity (m3/hr) 1,150 m3/hr
Capacity (l/s) 319.44 l/s
Noise 49 dB(A)
Motor Power 193W
Ductable Yes – 200mm diameter

The Fanco VKM range is a fan style that can be used with long duct lengths. Please refer to the performance curves for more information. The fan is available in 6 sizes and comes with a high-quality, long-life motor that is continuously rated. The casing is metal, and this listing also includes mounting brackets, meaning the fan can be installed at any angle.

VKM Range Features:

  • Overheating protection with automatic restart.
  • Ball bearing motor for long service life designed for at least 40 000 hours.
  • Each turbine is dynamically balanced for precise features, safe operation, and low noise.
  • Motor protection rating IPX4.

The fan has a single-speed motor but can be used in conjunction with a variable speed controller if you wish to manipulate the speed (see accessories below). This fan needs to be hardwired by an electrician.

Please refer to these guide for more information – (VKMS 200 Installation Manual & VKM-series Spec Sheet)

Key Specs

Brand

Fanco
Colour

Blue
Installation

Requires Hardwiring (electrician required)
Warranty

The Manufacturer offers a 2 year replacement warranty (conditions apply)
Motor Type

Centrifugal
Manufacturers Part Number

VKMS200
Barcode Number 4823059388891

All data is provided the manufacturer. Capacity figures are based on the extraction rate of the unit in ‘freeflow’. This means without any ducting, vents or other components. As you add ducting to a fan it will impact the extraction rate as this introduces resistance. For this reason if you are ducting an extraction fan it is best to keen the run as short, tight and direct as possible. For more information please view our exhaust fan buying guide.

For comprehensive warranty information relating to this product please visit the manufacturers website.
