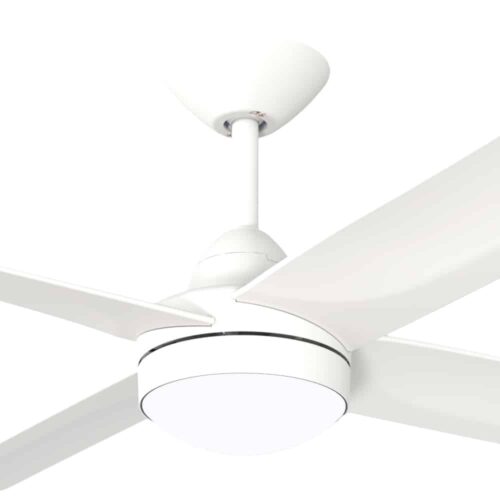

Hunter Pacific X-Over 4 Blade Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 10.7 degrees |
| Motor Type | DC |
| Control Type | Wall Control |
| Summer / Winter use? | Reversible via a switch on the motor |
| Ceiling to Blade Drop | 300mm (396mm to base of motor) |
| Angled Ceilings? | Suitable for angled ceilings up to 28 degrees |
| Light Included? | Included |
Modern design featuring three ABS blades. Common size suitable for bedrooms or living rooms. Non-remote adaptable. This fan can be installed on an angled ceiling up to 38 degrees if purchased with the additional angled ceiling kit.
*Note: A 3 speed wall control mechanism is provided with this fan, this is the rotary dial you use to adjust the speeds and turn the fan off. It does not include a switch for the light. Your installing electrician will need to provide a 3 gang switch with plate, to ensure that you have a switch for the light and an isolation switch.
Hunter Pacific X-Over 4 Blade Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 78 | 3 | 4828 m3/hr |
| 2 | 143 | 10.8 | 12001 m3/hr |
| 3 | 190 | 25.1 | 13852 m3/hr |
Includes a 3-speed wall control and manual reversibility. It can be reversed via remote for use in the Summer and Winter seasons.
Understanding the Hunter Pacific X-Over Light
| Light Type | CCT LED |
|---|---|
| Light Wattage | 18 |
| Lumens | 1842lm, 2370lm, 2123lm |
| Light Temperature | 3000K, 4000K, 6000K |
| Dimmable | Yes |
CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.
