Fanco Flow Key Features
| Installation Location | Indoor |
|---|---|
| Blade Material | Plastic |
| Overall Diameter | 132cm (52″) |
| Blade Pitch | 13 Degrees |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer / Winter use? | Reversible from remote |

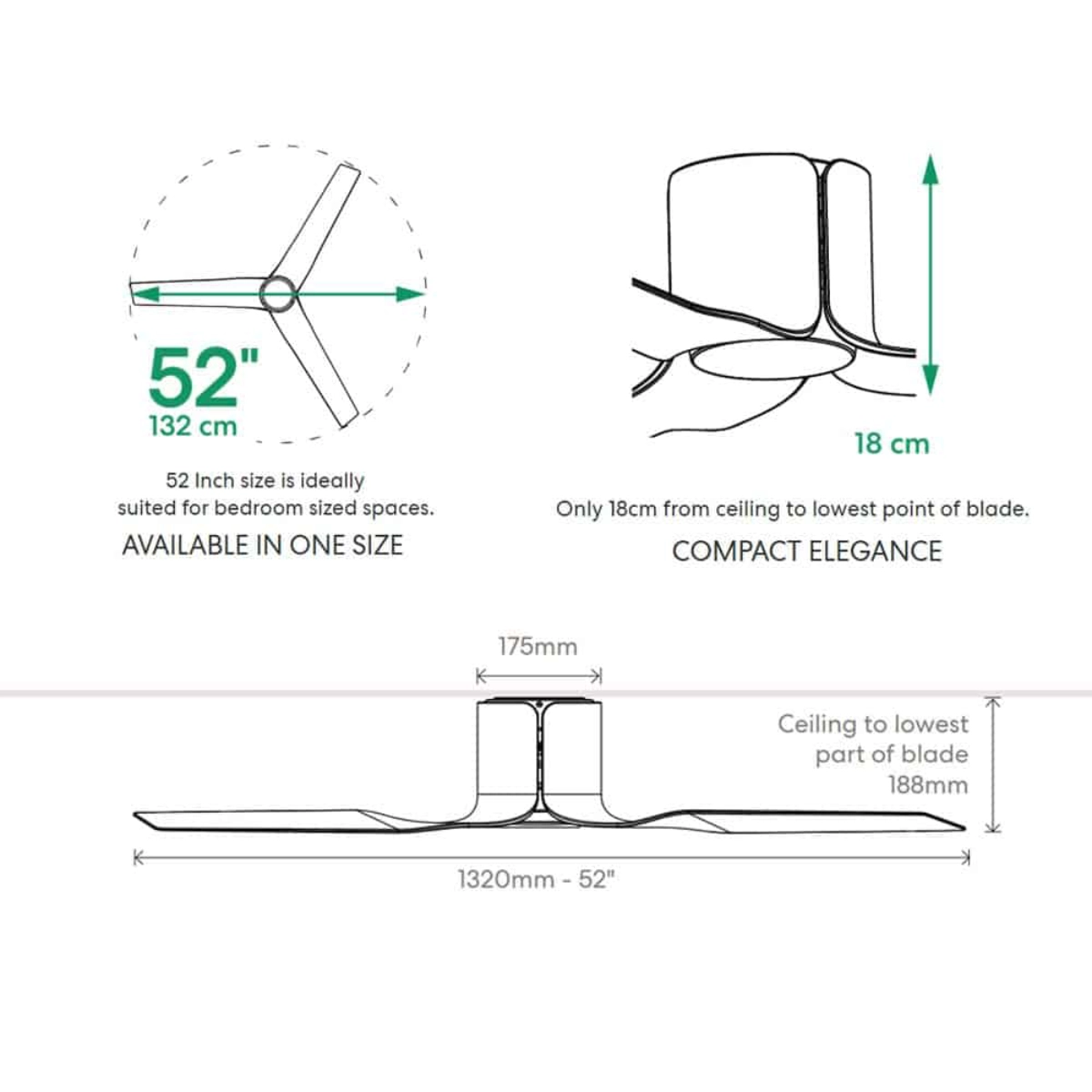

| Ceiling to Blade Drop | 188mm |
| Angled Ceilings? | Suitable for flat ceilings ONLY |
| Light Included? | Included |
Registered Design: 202413855
With its elegant, flowing modern design and low profile / hugger build, the Fanco Flow ceiling fan is ideal for medium to large spaces, including bedrooms. It comes with a convenient 6-speed remote control featuring a timer (1H, 4H, 8H), light control, fan speed, and reverse functionality for year-round comfort.
Fanco Flow Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 60 | 2 | 3919 m3/hr |
| 2 | 90 | 3 | 5936 m3/hr |
| 3 | 120 | 7 | 8391 m3/hr |
| 4 | 150 | 12 | 8947 m3/hr |
| 5 | 180 | 20 | 11354 m3/hr |
| 6 | 210 | 31 | 13386 m3/hr |
At 60 RPM, the fan operates at an extremely low wattage of 2W, delivering a gentle airflow of 3919 m³/hr, suitable for minimal air movement needs. At its maximum speed of only 31W, it delivers a powerful airflow, ensuring optimal ventilation in expansive areas.
Understanding the Fanco Flow Light
| Light Type | LED |
|---|---|
| Light Wattage | 22w |
| Lumens | 2291lm, 2588lm, or 2506lm |
| Light Temperature | 3000k, 4000k or 5000k |
| Dimmable | Yes |
CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet and installation manual here.
CLICK TO DOWNLOAD FANCO FLOW SPEC SHEET
CLICK TO DOWNLOAD FANCO FLOW INSTALLATION MANUAL
