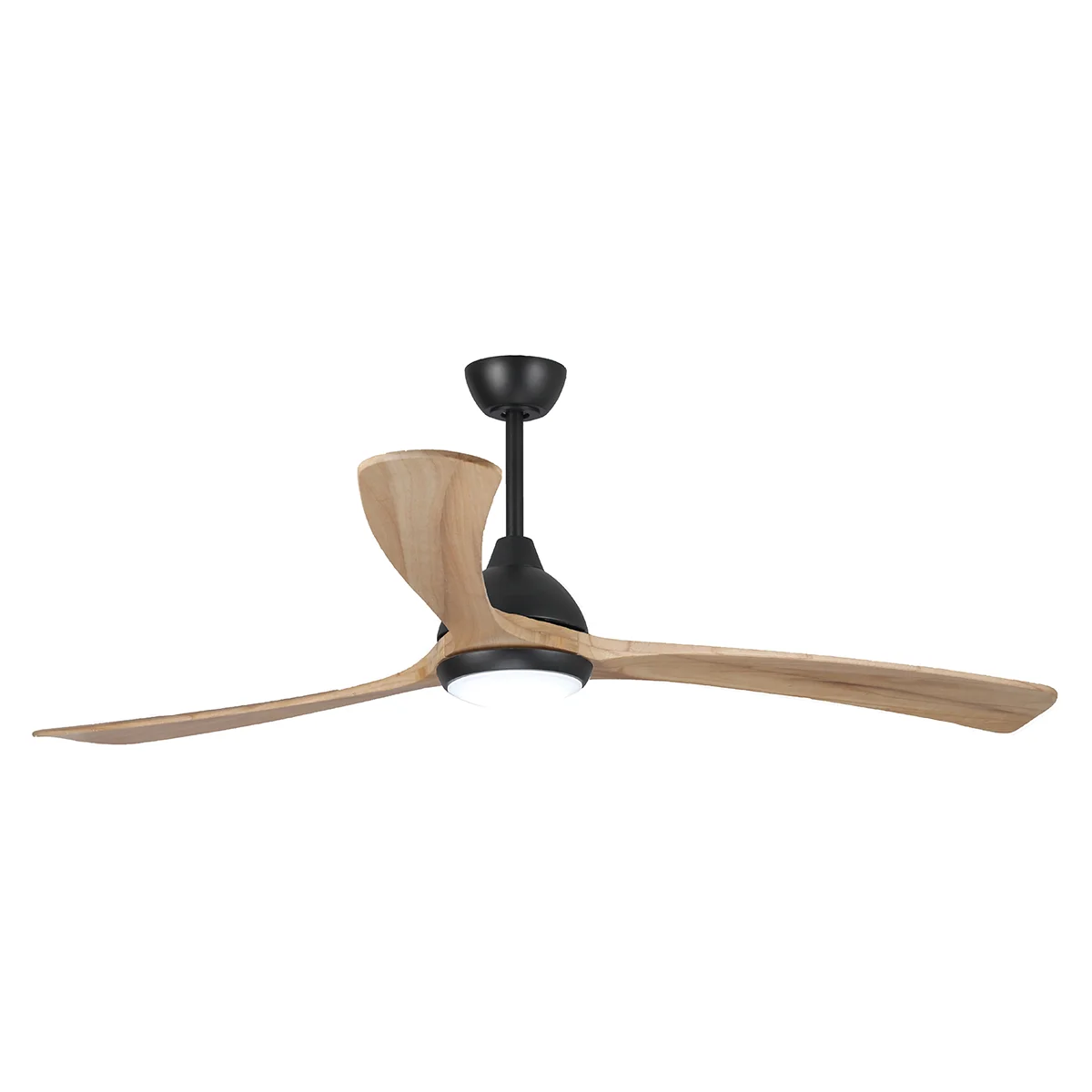

Fanco Sanctuary Key Features
| Installation Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Solid Timber |
| Overall Diameter | 178cm (70″) |
| Blade Pitch | 10 Degrees |
| Motor Type | DC |
| Control Type | Remote Control |
| Summer / Winter use? | Reversible from remote |
| Ceiling to Blade Drop | 322mm (392mm to base of light) |
| Angled Ceilings? | Suitable for angled ceilings up to 15 degrees |
| Light Included? | Included |
Built for long-lasting performance, the Fanco Sanctuary combines anti-corrosive metal components with solid timber blades coated in a protective sealer, making it perfect for alfresco, outdoor, and coastal settings. 6 Speed remote control included, which includes a timer, select from 1H / 4H / 8H. This model is supplied with 2 extension rods in the box, 125mm & 250mm rods.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 55 | 5.4 | 3,150 m3/hr |
| 2 | 86 | 10.3 | 5,230 m3/hr |
| 3 | 103 | 15 | 6,879 m3/hr |
| 4 | 115 | 20 | 8,520 m3/hr |
| 5 | 128 | 26 | 9,053 m3/hr |
| 6 | 147 | 38 | 11,176 m3/hr |
It can be used all year round with a reversible model via the included remote. Low running costs, uses only 38W from an efficient DC motor at max speed.
Understanding the Fanco Sanctuary Light
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 1435lm, 1474lm or 1461lm |
| Light Temperature | 3000K, 4000K or 6000K |
| Dimmable | Yes |
CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.
Change the light temperature by pressing the light on/off button on the remote quickly, or by using the smart app. Select from warm white, natural or daylight light temperatures. The light has memory capability that keeps the settings when the light is switched off. The LED panel is user replaceable, this means that you can purchase a replacement / spare panel and swap it over yourself if required.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet, installation manual and smart ceiling fan set up guide here.
CLICK TO DOWNLOAD FANCO SANCTUARY SPEC SHEET
CLICK TO DOWNLOAD FANCO SANCTUARY INSTALLATION MANUAL
Please note: Solid timber blades are made from natural materials and may vary slightly in performance specifications. The Sanctuary requires a minimum ceiling height of 2.7m because of its larger size and 447mm ceiling-to-blade drop. It includes both a 125mm and a 250mm extension rod, allowing you to choose the most suitable drop for your ceiling height and room layout. A qualified person must complete installation. When installed outdoors, the fan must be positioned at least 1.5m from roof edges or eaves, with a minimum 70cm clearance between the blade tips and surrounding walls, roof edges, or ceiling beams.
