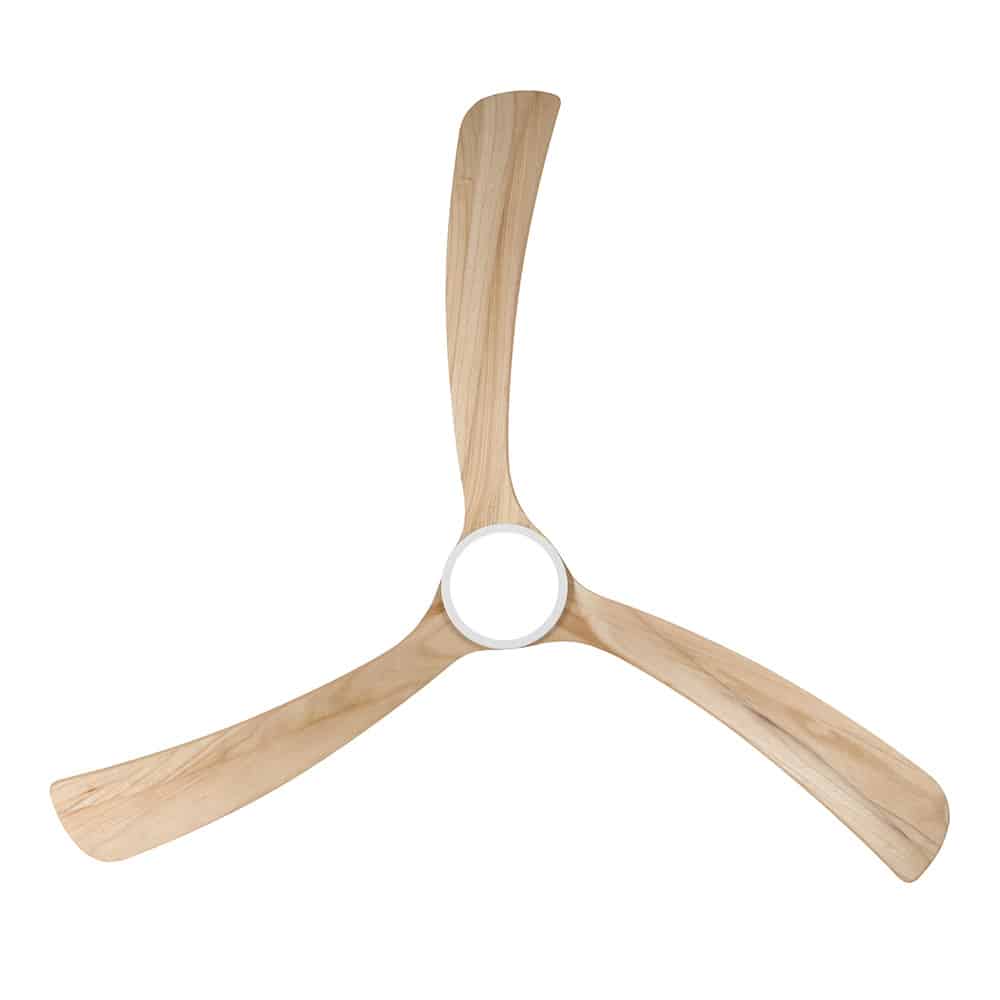

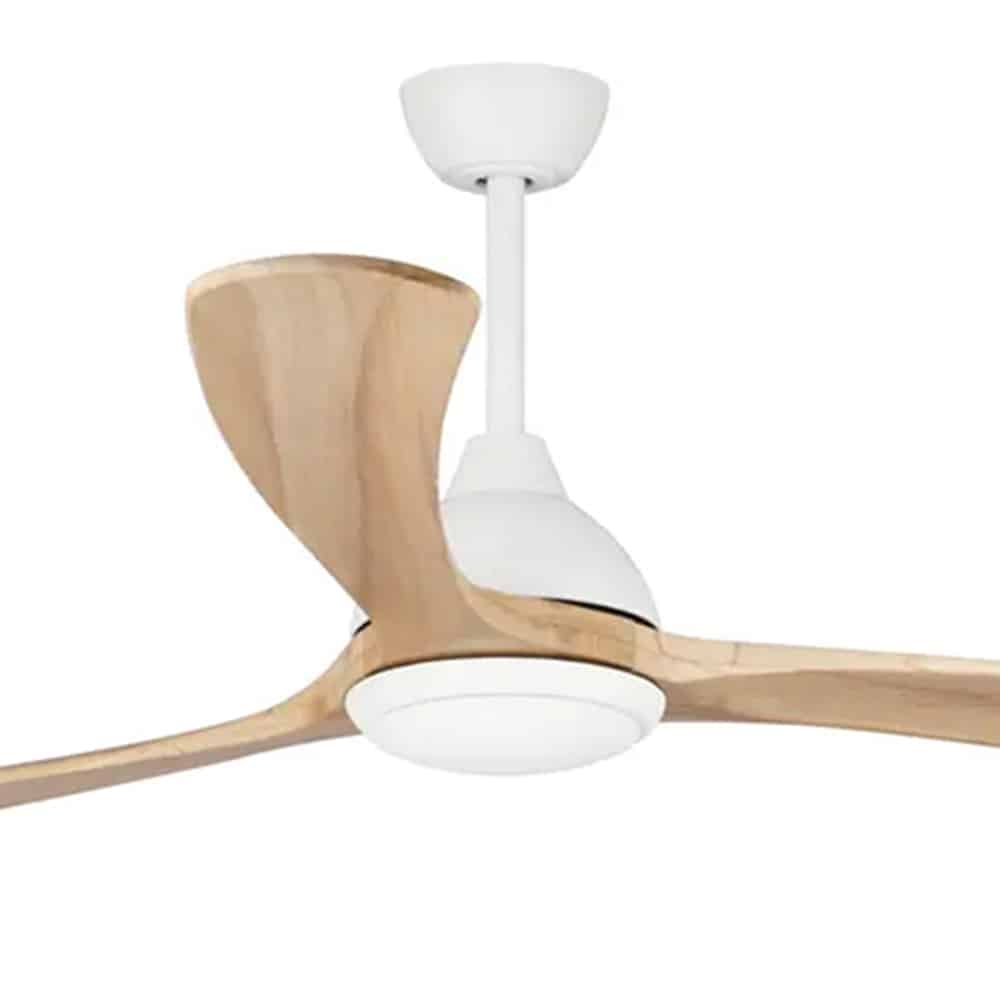

Fanco Sanctuary Key Features
| Install Location | Indoor, Outdoor Undercover & Coastal |
|---|---|
| Blade Material | Solid Timber |
| Overall Diameter | 178cm (70″) |
| Blade Pitch | 12 Degrees |
| Motor Type | DC |
| Operation | Remote Control |
| Summer / Winter Use | Reversible from remote |
| Ceiling to Blade drop | 307mm (375mm to base of light) |
| Angled Ceilings | Suitable for angled ceilings up to 15 degrees |
| Light | Included |
The Fanco Sanctuary is made with anti-corrosive paint applied to all metal components and sealed solid timber blades, giving it a stylish finish suitable for large covered outdoor areas and coastal locations. 6 Speed remote control included, which includes a timer, select from 1H / 4H / 8H.
Fanco Sanctuary Performance Data
| Speed | RPM | Wattage | Airflow |
|---|---|---|---|
| 1 | 57 | 4 | 4,972 m3/hr |
| 2 | 79 | 7.3 | 6,230 m3/hr |
| 3 | 93 | 10.7 | 7,727 m3/hr |
| 4 | 112 | 17.5 | 9,100 m3/hr |
| 5 | 130 | 27.4 | 10,318 m3/hr |
| 6 | 148 | 39.7 | 11,371 m3/hr |
It can be used all year round with a reversible model via the included remote. Low running costs; uses only 39.7W from an efficient DC motor at max speed.
Understanding the Fanco Sanctuary Light
| Light Type | LED |
|---|---|
| Light Wattage | 24W |
| Lumens | 2102lm, 1959lm or 1956lm |
| Light Temperature | 3000K, 4000K or 6000K |
| Dimmable | Yes |
CCT stands for colour changing technology which means you can select a desired temperature depending on your preferences.
Change the light temperature by quickly pressing the light on/off button on the remote, or by using the smart app. Select from warm white, natural or daylight light temperatures. The light has memory capability that keeps the settings when the light is switched off. The LED panel is user-replaceable; this means that you can purchase a replacement / spare panel and swap it over yourself if required.
For detailed measurements, technical configurations, and step-by-step setup guides, please download the product spec sheet, installation manual and smart ceiling fan set-up guide here.
CLICK TO DOWNLOAD FANCO SANCTUARY SPEC SHEET
CLICK TO DOWNLOAD FANCO SANCTUARY INSTALLATION MANUAL
Please note: Solid timber blades are a natural material and may result in minor variations in performance specifications. This ceiling fan includes two extension rods (127mm and 254mm) to suit different ceiling heights. The shorter 127mm rod positions the blades 307mm and the light 375mm from the ceiling, while the 254mm rod extends these overall drops to 434mm and 498mm, respectively.
